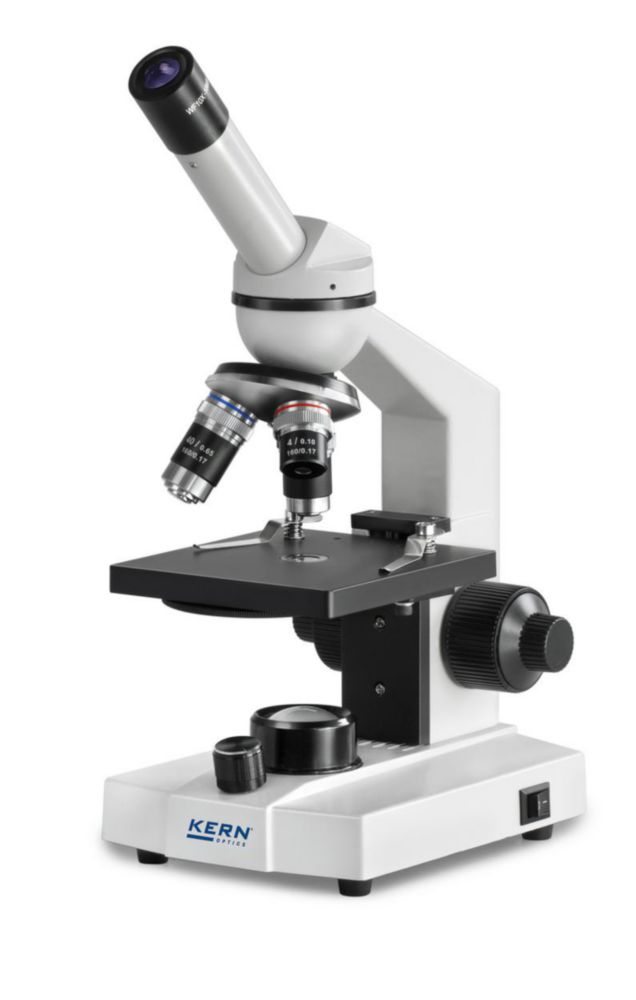

Light Microscopes Educational-Line Basic OBS
Product number:
6285893
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
2.5 kg
Description
The school microscope for the first steps in microscopy and for use in biology lessons.
Scope of supply:
Light microscope, dust cover, manual instructions, mains adapter
- Tube 360° rotatable
- Diopter adjustment on both sides for binocular models
- 3 achromatic objective 4x, 10x, 40x included (60x and 100x optionally as accessoires)
- Coaxial pre-and fine focussing
- Simple condenser N.A. 0.65 or ABBE 1,25 N.A. condensor focussed with aperture diaphragm
- Dimmable 0,5 W LED illumination (rechargeable)
- Battery operation possible (OBS 101-106)
Scope of supply:
Light microscope, dust cover, manual instructions, mains adapter
Properties
| Battery/rechargeable battery: | 3 x 1.2 V, AA, NiMH |
|---|---|
| Condenser: | N.A. 0,65 |
| Depth: | 300 mm |
| Depth stage: | 120 mm |
| Designation ANSI: | AA |
| Dimensions (WxDxH): | 130 x 300 x 310 mm |
| Electrochemical system: | NiMH |
| Height: | 310 mm |
| Inclination angle tube: | 45° |
| Light type: | LED |
| Magnification eyepieces: | WF 10x/18 mm |
| Magnification objectives: | 4x, 10x, 40x |
| Manufacturer Article Number: | OBS 101 |
| Max. voltage: | 240 V |
| Max. voltage battery/rechargeable battery: | 1.2 V |
| Min. voltage: | 100 V |
| No. of batteries/rechargeable batteries: | 3 |
| Plug type: | EU |
| Power supply: | 100 ... 240 V |
| Revolving nosepiece: | 3-fold |
| Stage (WxD): | 110 x 120 mm |
| Tube: | Monocular |
| Type: | OBS 101 |
| Type of auxiliary energy: | Battery/mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Warranty: | 2 years |
| Weight: | 3 kg |
| Width: | 130 mm |
| Width stage: | 110 mm |
