Accessories for Light Microscopes Educational-Line OBE and Lab-Line OBL
Product number:
4657466
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description
Further eyepieces, phase contrast units and filters available on request. Complete fluorescence units for OBL series available on request.
Properties

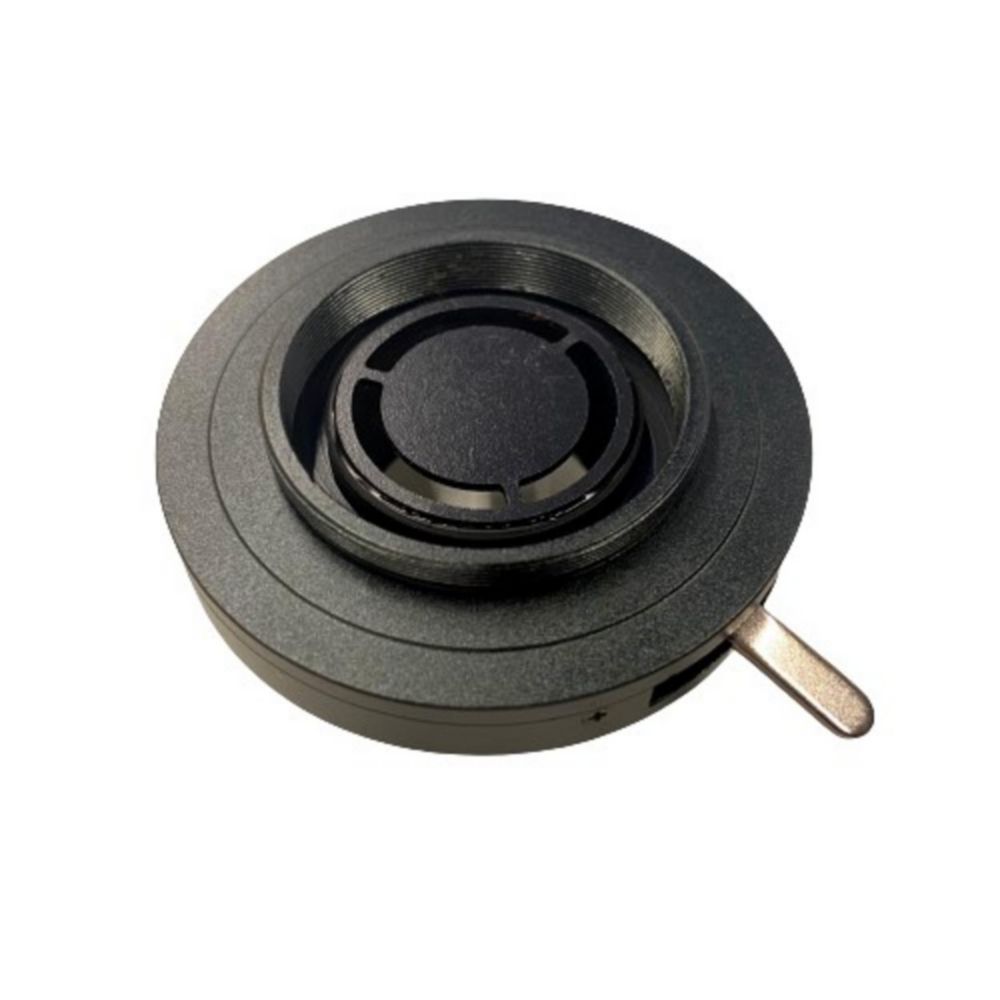

| Description: | Darkfield Unit: 4x-40x |
|---|---|
| For: | OBE |
| Manufacturer Article Number: | OBB-A1148 |
Skip product gallery
Inverted Routine microscope for live cell inspection, AE2000
From
€2,816.00*

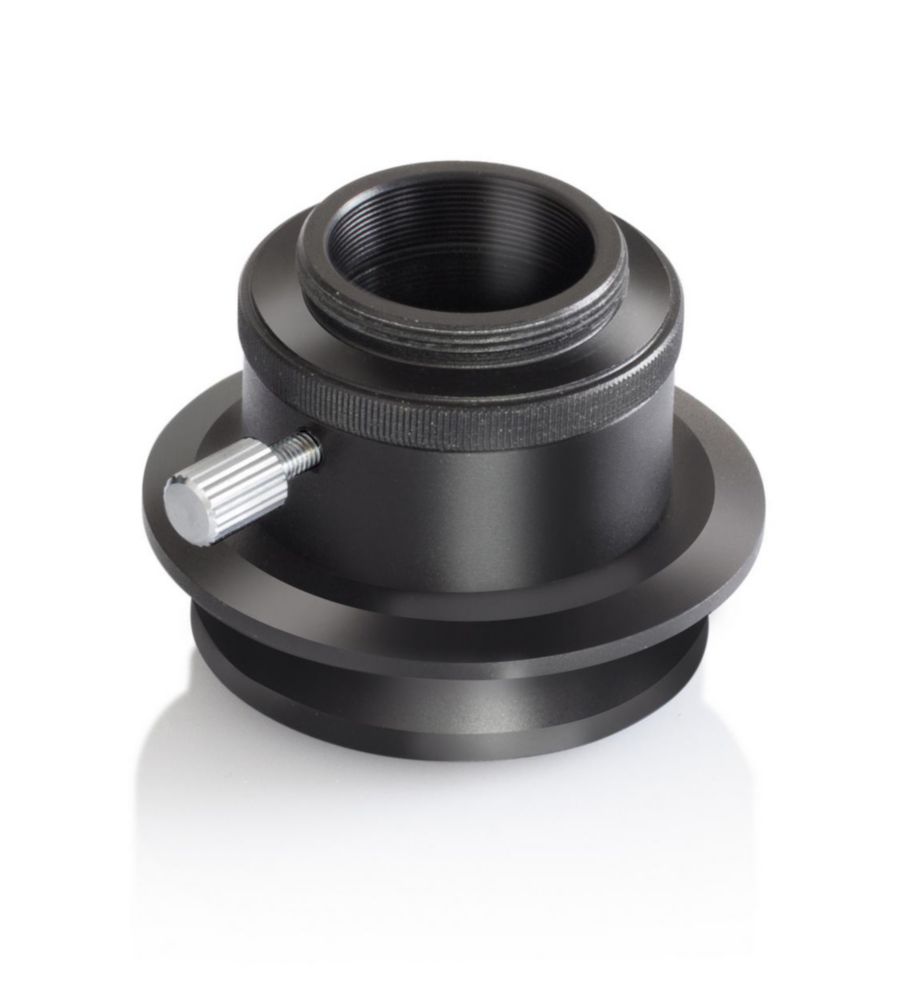

C-Mount camera adapter to BA, AE, SMZ-161 & SMZ-171 series
From
€156.00*
Inverted microscope Lab Line OCM
From
€3,790.00*
Light Microscopes Educational-Line OBE 12 / 13
From
€490.00*
Binocular Microscopes for Schools/Laboratories B1-220E-SP
From
€680.00*
Advanced Upright Microscope for Life Science and Laboratories, BA310E
From
€1,440.00*
Basic Biological Microscope for Education and Routine, BA210E
From
€1,090.00*
Light Microscopes Educational-Line Basic OBS
From
€190.00*
Microscopes B1 Elite
From
€453.00*
Transmitted light microscope-digital set OBE, with C-mount camera
From
€1,230.00*
Phase contrast microscopes professional line OBN 15
From
€2,970.00*
Similar products
Classic cell culture microscope for daily work in the laboratory.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Binocular - / Phototube 45°, F.N. 20Interpupillary Distance 48 mm-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm provide dioptre adjustment for both eyesSide facing quadruple nosepieceObjectives CCIS Plan Achromat PL 4x, LWD PL 40xCCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20xPlain stage 200 mm x 239 mm surface with metal & glass stage insertsCondensor ELWD N.A. 0.3 with phase slider (Ph1, BF)Illumination 6V/30W halogen with intensity control and sleeping modeUniversal power supply 100 V-240 V (CE)Ø 45 mm blue, green interference and neutral density filters with filter slider, centering telescope, power cord, Allen hexagonal key, vinyl dust coverInterchangeable LED module availableOptional: phase-contrast 4x/40x, mechanical stage with well plate holder.
Suitable for microscopes from year of manufacture 2016.
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).TrinocularTube 45° inclinedEyepiece: HWF 10x/22 mmObjectives: LWD 10x, 20x, 40x, LWD 20xPHDiopter adjustment: both-sidedQuintuple nosepieceObjective quality: Infinity PlanMechanical stage, including specimen holder (Ø 118 mm)Abbe N.A. 0.3 condenser with aperture diaphragmOCM 161: 30 W halogen illuminationOCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unitIncluding blue and green colour filterDust Cover and manual instruction included
The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 121, 131): Tube 30° inclinedBinocular (OBE 122, OBE 132): Tube Butterfly 30° inclined, 360° rotatableTrinocular (OBE 124, 134): Tube Butterfly 30° inclined, 360° rotatableachromatic objective 100x (oil immersion)Widefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepieceCoaxial pre-and fine focussingAbbe 1,25 condensor focussed with aperture diaphragmDimmable 3 W LED illuminationStorage compartment on the rear sideUSB connection (only as power source)Dust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available
Established Quality with a new design. The B1 series covers a wide range of the daily work for Laboratory and University use. The Elite Series with improved optics and mechanics enables efficient work for many years. Observation Tube Binocular 45° / Phototube 30°, 360° rotatingWidefield eyepieces WF10X/18 mm Quadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X S, 100X S-Oil Coaxial coarse and fine focusing system with tension adjustment Built-in low position coaxial rackless mechanical stage Focusable 1.25 N.A. Abbe condenser with iris diaphragm LED illumination 3 W with intensity controlPower supply 100-240 VDust cover and immersion oil
The BA310E is specially designed for the requirements of daily routine in universities, clinics and laboratories.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20Interpupillary Distance 48-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecupsReversed quintuple revolving nosepieceObjectives CCIS EC Plan 4x, 10x, 40x-S, 100x-S-OilBuilt in low position coaxial, rackless mechanical stage (right hand control)Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slotKoehler illumination 3 W LED with intensity controlUniversal power supply 100-240 VScope of supply: Immersion oil (5 ml), power cord, Allen hexagonal key, thumb crew, vinyl dust cover6 V/30 W HAL illumination available on optionOptional, available: Phase-contrast 10x/20x/40x/100x for slider or Turret-condensor, DF 10x-40x for slider or Turret-condensor, Polarization
Compact and robust, the BA210E is ideal for the requirements of colleges and universities as well as for medical training institutes.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20Interpupillary Distance 55-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecupsReversed quadruple revolving nosepieceObjectives CCIS EC Plan 4x, 10x, 40x-S, 100x-S-OilBuiltin low position coaxial, rackless mechanical stage (right hand control)Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slotHalogen illumination (6 V / 30 W) and LED illumination (3 W) adjustableUniversal power supply 100-240 V (CE)Scope of supply: Microscope, immersion oil (5 ml), thumb screw, vinyl dust cover, Allen hexagonal key, power cordOptional available: Phase-contrast 10x/40x, DF 10x-40x, Polarization
The school microscope for the first steps in microscopy and for use in biology lessons.Tube 360° rotatableDiopter adjustment on both sides for binocular models3 achromatic objective 4x, 10x, 40x included (60x and 100x optionally as accessoires)Coaxial pre-and fine focussingSimple condenser N.A. 0.65 or ABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 0,5 W LED illumination (rechargeable)Battery operation possible (OBS 101-106)Scope of supply:Light microscope, dust cover, manual instructions, mains adapter
The B1 Elite series covers a wide range of the daily work for schools and laboratories.Monocular head 45°, binocular head 45°, trinocular head 30°, 360° rotatingWidefield eyepieces WF 10X/18mmQuadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X SDiopter adjustment on both eyepiece socketsCoaxial coarse and fine focusing system with tension adjustmentBuilt-in low position coaxial rackless mechanical stageFocusable 1.25 N.A. Abbe condenser with iris diaphragmLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragmCoaxial coarse and fine focusingOBN 158: Halogen lighting 20 WOBN 159: LED lighting 3 WScope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual
