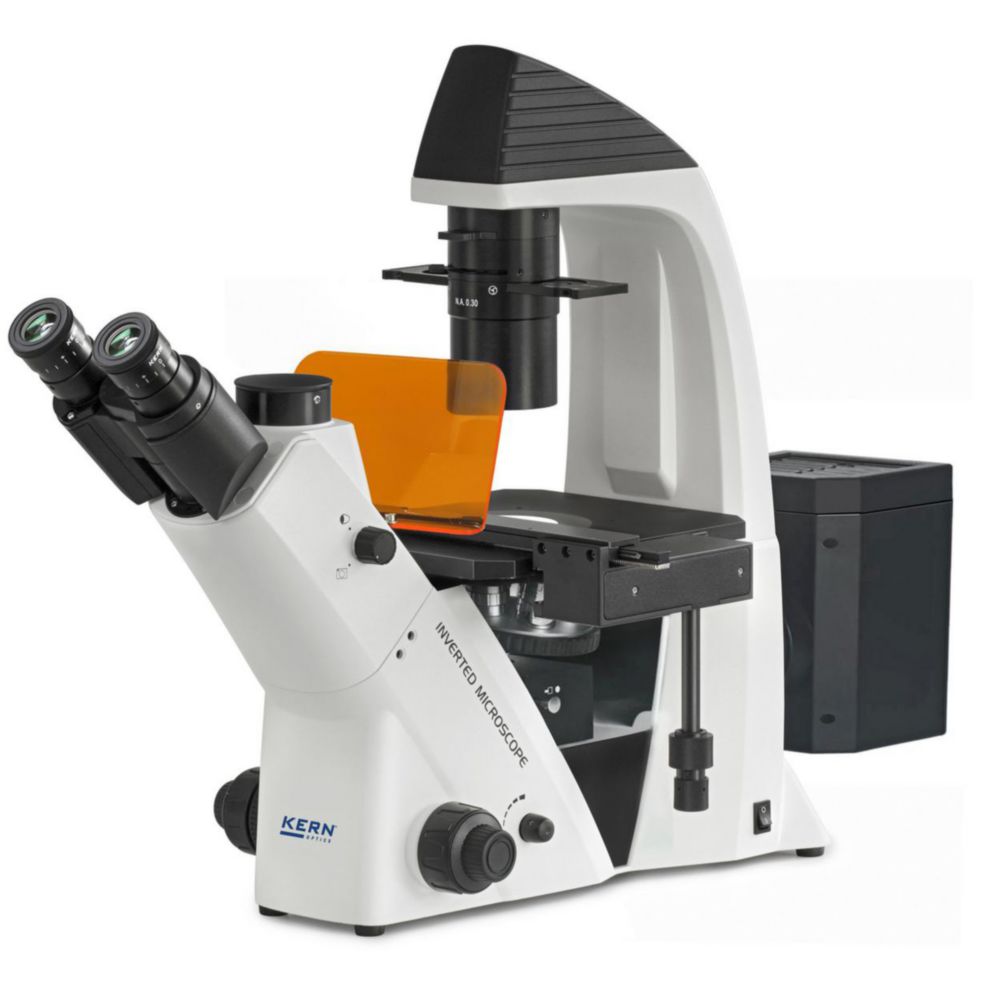

Inverted microscope Lab Line OCM
Product number:
6312435
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).
- Trinocular
- Tube 45° inclined
- Eyepiece: HWF 10x/22 mm
- Objectives: LWD 10x, 20x, 40x, LWD 20xPH
- Diopter adjustment: both-sided
- Quintuple nosepiece
- Objective quality: Infinity Plan
- Mechanical stage, including specimen holder (Ø 118 mm)
- Abbe N.A. 0.3 condenser with aperture diaphragm
- OCM 161: 30 W halogen illumination
- OCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unit
- Including blue and green colour filter
- Dust Cover and manual instruction included
Properties
| Condenser: | Abbe 0,3 |
|---|---|
| Depth: | 304 mm |
| Dimensions (WxDxH): | 782 x 304 x 530 mm |
| Height: | 530 mm |
| Inclination angle tube: | 45° |
| Light type: | Halogen |
| Magnification objectives: | LWD 10x, 20x, 40x, LWD 20xPH |
| Manufacturer Article Number: | OCM 165 |
| Revolving nosepiece: | 5-fold |
| Tube: | Trinocular |
| Type: | OCM 165 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Incident/transmitted light |
| Width: | 782 mm |
