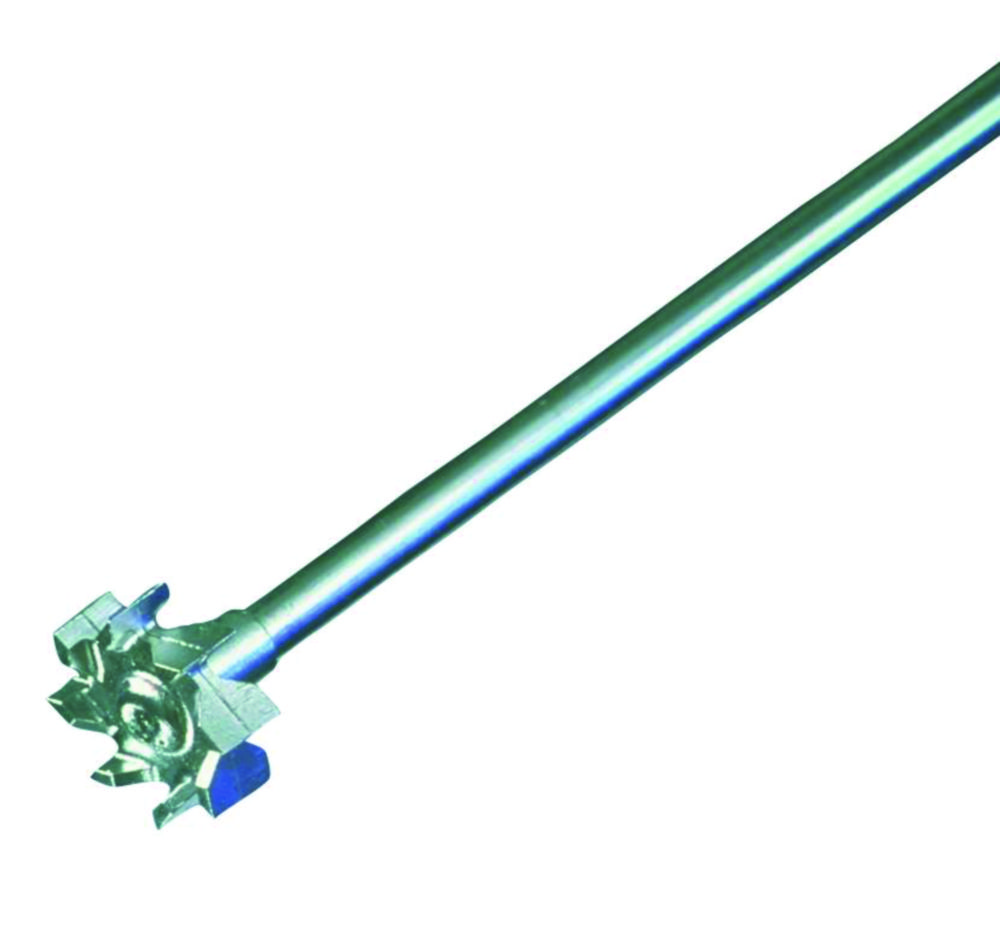

Turbine stirrer for Overhead Stirrers
Heidolph Scientific
Product number:
9816549
Manufacturer:
Heidolph Scientific
Packaging information:
Length:
411 mm
Width:
158 mm
Height:
55 mm
Weight:
0.72 kg
Description
- These impellers are recommended for applications which require an average speed
- For mixing products with average viscosity up to <500mPas
- Ideal for gassing of liquids
- These impellers create a radial flow
Properties
| Flow: | Radial |
|---|---|
| Length: | 400 mm |
| Manufacturer Article Number: | 509-21000-00 |
| Material: | Stainless steel |
| Stirring head Ø: | 50 mm |
| Stirring rotor Ø: | 8 mm |
| Type: | TR 21 |
| Type of stirrer: | Turbine stirrer |
