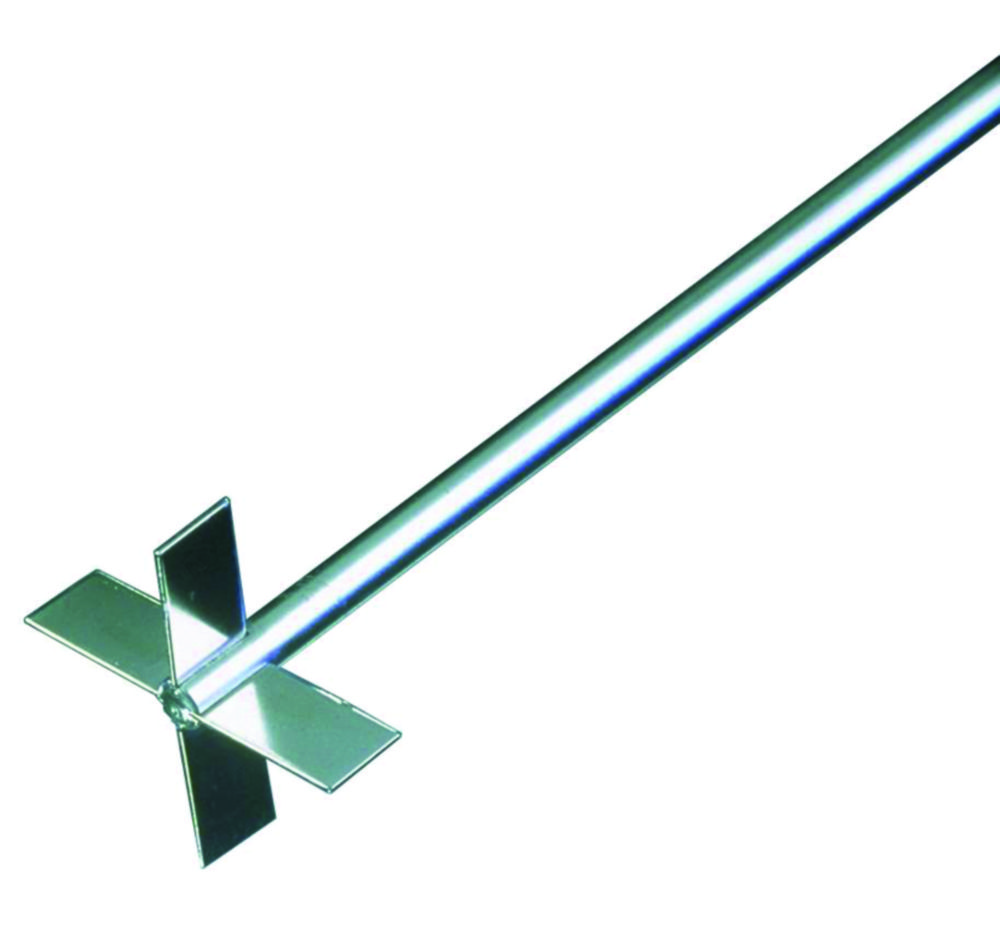

Blade stirrer for Overhead Stirrers
Heidolph Scientific
Product number:
9816540
Manufacturer:
Heidolph Scientific
Packaging information:
Weight:
0.164 kg
Description
- These impellers are recommended for applications which require an average speed
- For mixing products with average viscosity

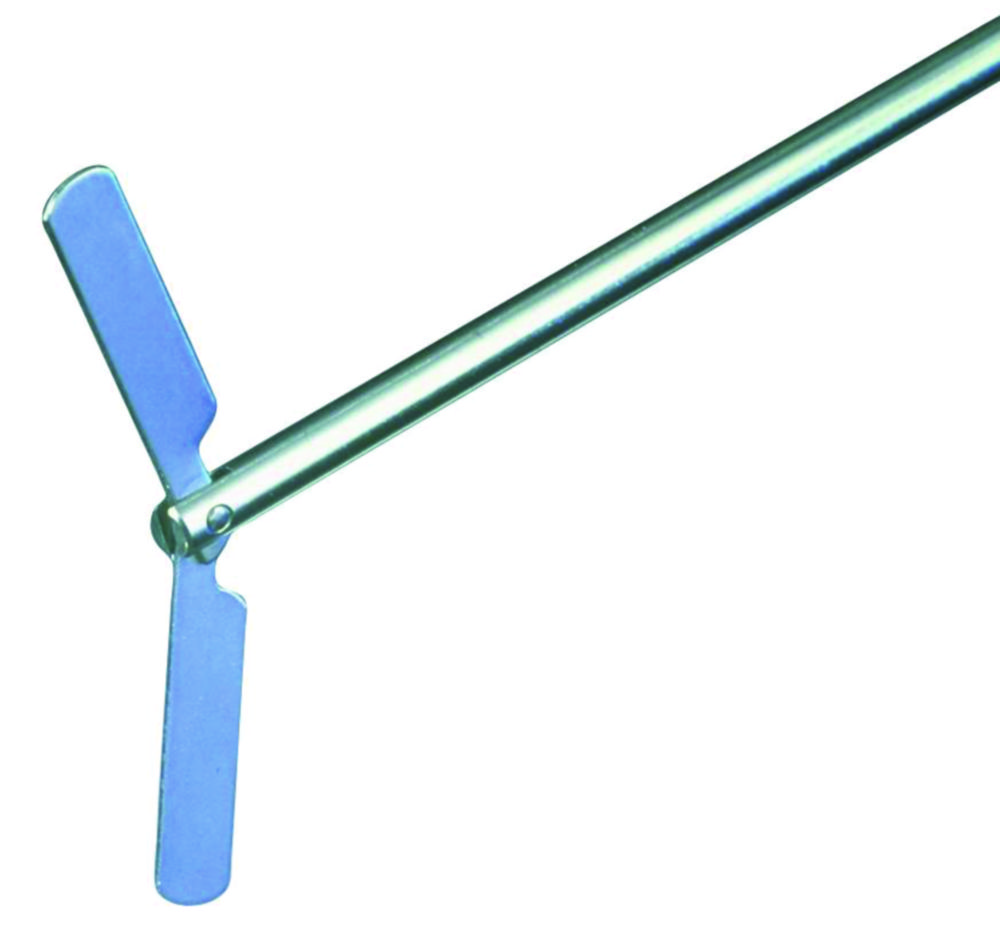

- Models BR 12 and BR 14 come with collapsible blade for narrow neck vessels
Properties
| Length: | 400 mm |
|---|---|
| Manufacturer Article Number: | 509-10000-00 |
| Material: | Stainless steel |
| No. of stirring blades: | 2 |
| Stirring head Ø: | 50 mm |
| Stirring rotor Ø: | 8 mm |
| Type: | BR 10 |
| Type of stirrer: | Blade stirrers |
