Thermostatic controller Optima™ TC120
Product number:
9699631
Manufacturer:
Grant Instruments Ltd.
Packaging information:
Length:
470 mm
Width:
314 mm
Height:
205 mm
Weight:
3.4 kg
Description
Combine with a plastic or stainless steel tank or with an accessory T-clamp for independent use. The general purpose heating circulator offers excellent temperature stability and uniformity.
For use at temperatures below RT, the C1G or C2G cooler must be ordered additionally.
Models with clamps available on request.
- Clear, bright 4 digit LED display
- 3 programmable temperature pre-sets
- Visual and audible alarm
- Timer from 1 min to 99 h 59 min
- 2 point recalibration
- Adjustable over temperature cut-out
- Pump for external circulation
For use at temperatures below RT, the C1G or C2G cooler must be ordered additionally.
Models with clamps available on request.
Properties
| Depth: | 172 mm |
|---|---|
| Dimensions (WxDxH): | 141 x 172 x 333 mm |
| Heating capacity: | 1290 W |
| Height: | 333 mm |
| Manufacturer Article Number: | TC120 |
| Max. delivery pressure: | 0.21 bar |
| Max. flow rate: | 16 l/min |
| Max. temperature: | 120 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +5 °C |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Programmable: | No |
| Temperature: | RT+5 ... 120 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,05 °C (70 °C) |
| Type: | TC120 |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Weight: | 2.3 kg |
| Width: | 141 mm |
| With timer: | Yes |
Skip product gallery
From
€2,264.00*
From
€1,038.00*
From
€1,678.00*
Other customers also bought
Grant Instruments Ltd.
Grant Instruments Ltd.

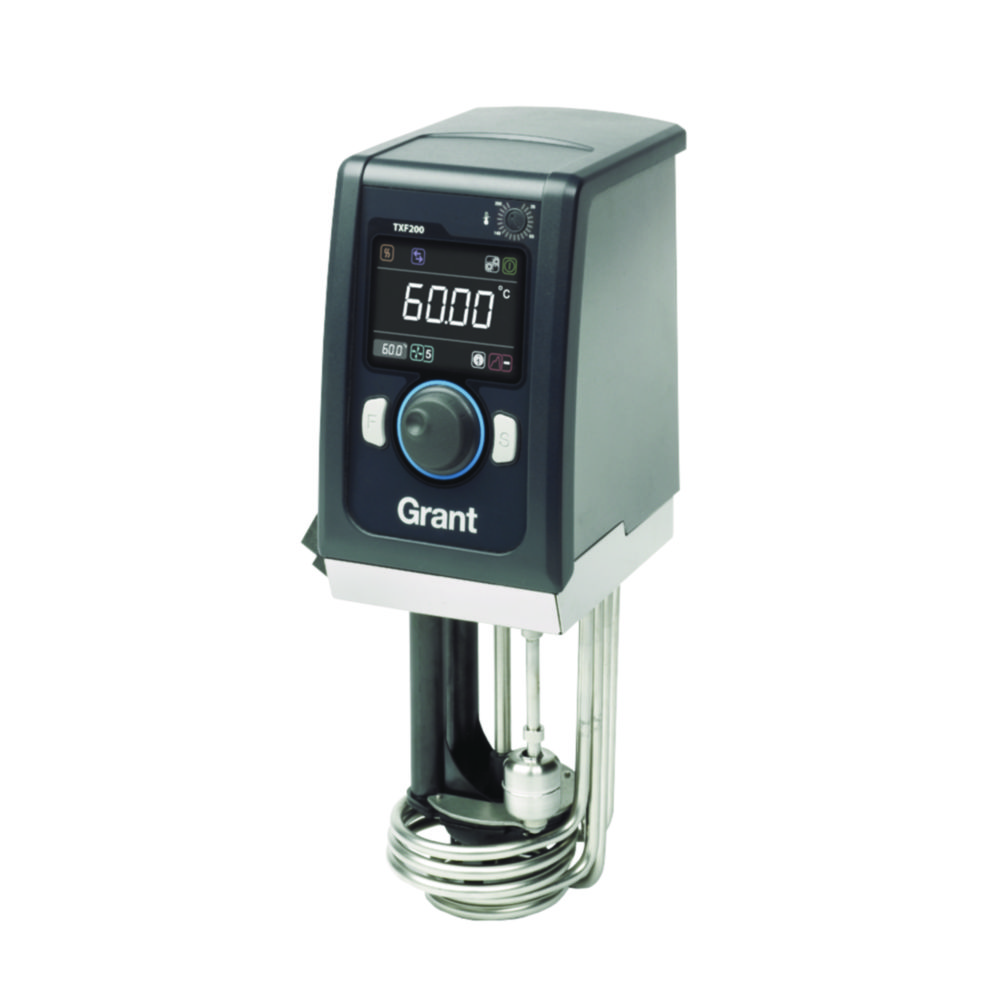

Thermostatic controller Optima™ TXF200
Combine with a plastic or stainless steel tank or with an accessory T-clamp for independent use. The advanced heating circulator features a modern, icon driven programming interface and full colour display.Large, bright full colour displayVisual and audible alarmTimer from 1 min to 99 h 59 min5 point recalibrationAdjustable over temperature cut-outPump for external circulationExternal temperature probeProgammable: Direct via user interface or remote via PC/labtop, 10 programs/100 segmentsRelay output to enable control of an external deviceUSB and RS232 interfaceFor use at temperatures below RT, the C1G or C2G cooler must be ordered additionally.Models with clamps available on request.
Grant Instruments Ltd.
Grant Instruments Ltd.

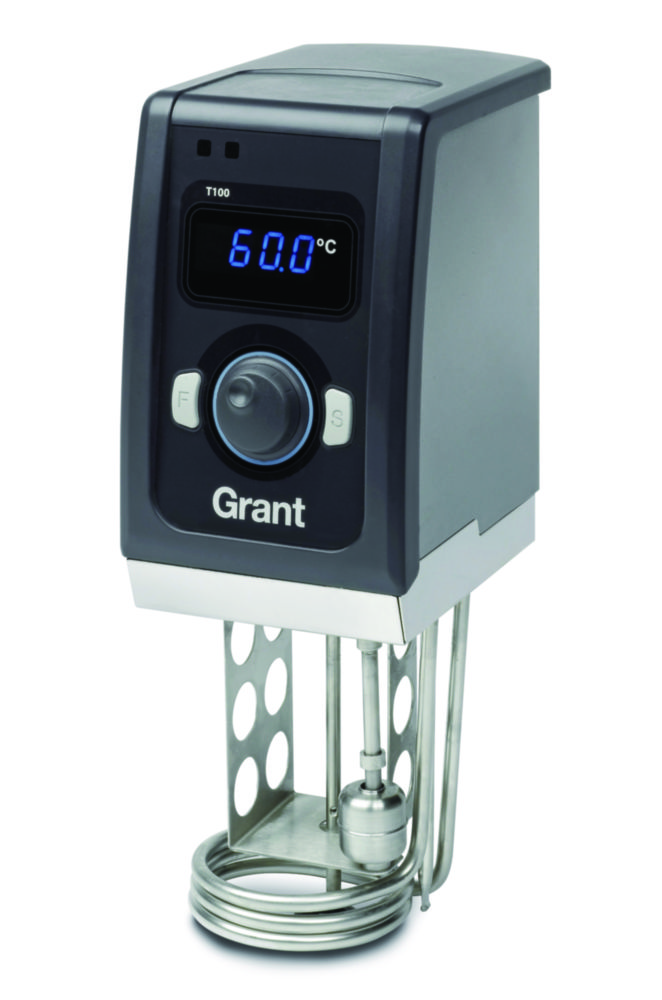

Thermostatic controller Optima™ T100
Combine with a plastic or stainless steel tank or with an accessory T-clamp for independent use. The general purpose heating circulator offers excellent temperature stability and uniformity.Clear, bright 4 digit LED display3 programmable temperature pre-setsVisual alarm2 point recalibrationFixed over temperature cut-outFor use at temperatures below RT, the C1G or C2G cooler must be ordered additionally.Models with clamps available on request.
Grant Instruments Ltd.
Grant Instruments Ltd.

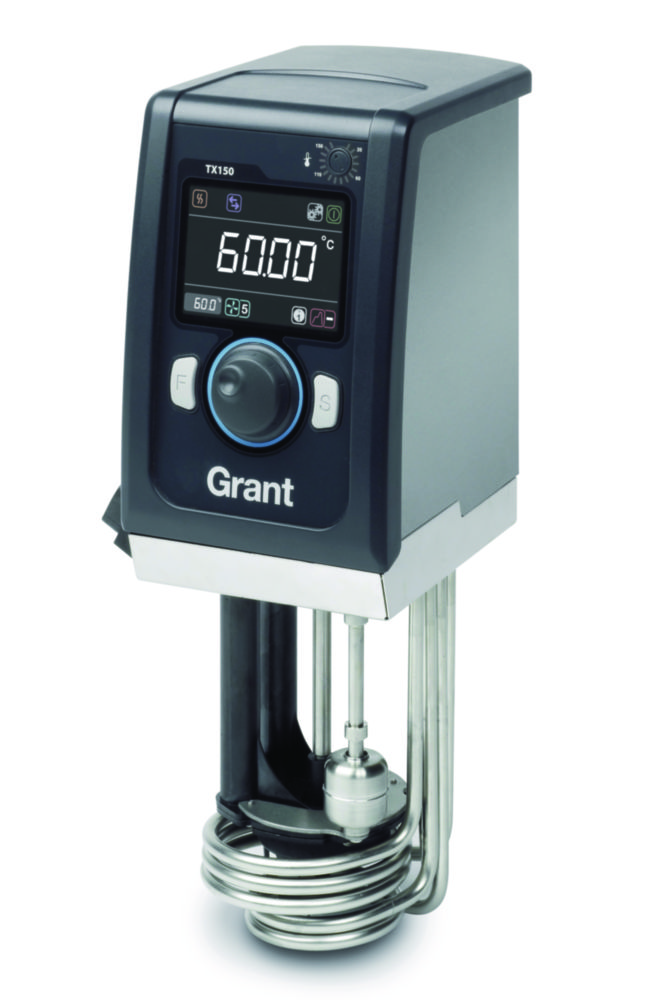

Thermostatic controller Optima™ TX150
Combine with a plastic or stainless steel tank or with an accessory T-clamp for independent use. The advanced heating circulator features a modern, icon driven programming interface and full colour display.Large, bright full colour displayVisual and audible alarmTimer from 1 min to 99 h 59 min5 point recalibrationAdjustable over temperature cut-outPump for external circulationExternal temperature probeProgammable: Remote via PC/labtop, 1 program/30 segmentsRelay output to enable control of an external deviceUSB and RS232 interfaceFor using at or below room temperature you need additional flow coolers C1G or C2G.Models with clamps available on request.
Skip product gallery
From
€376.00*
From
€156.00*
From
€94.00*
Accessories
Grant Instruments Ltd.
Grant Instruments Ltd.

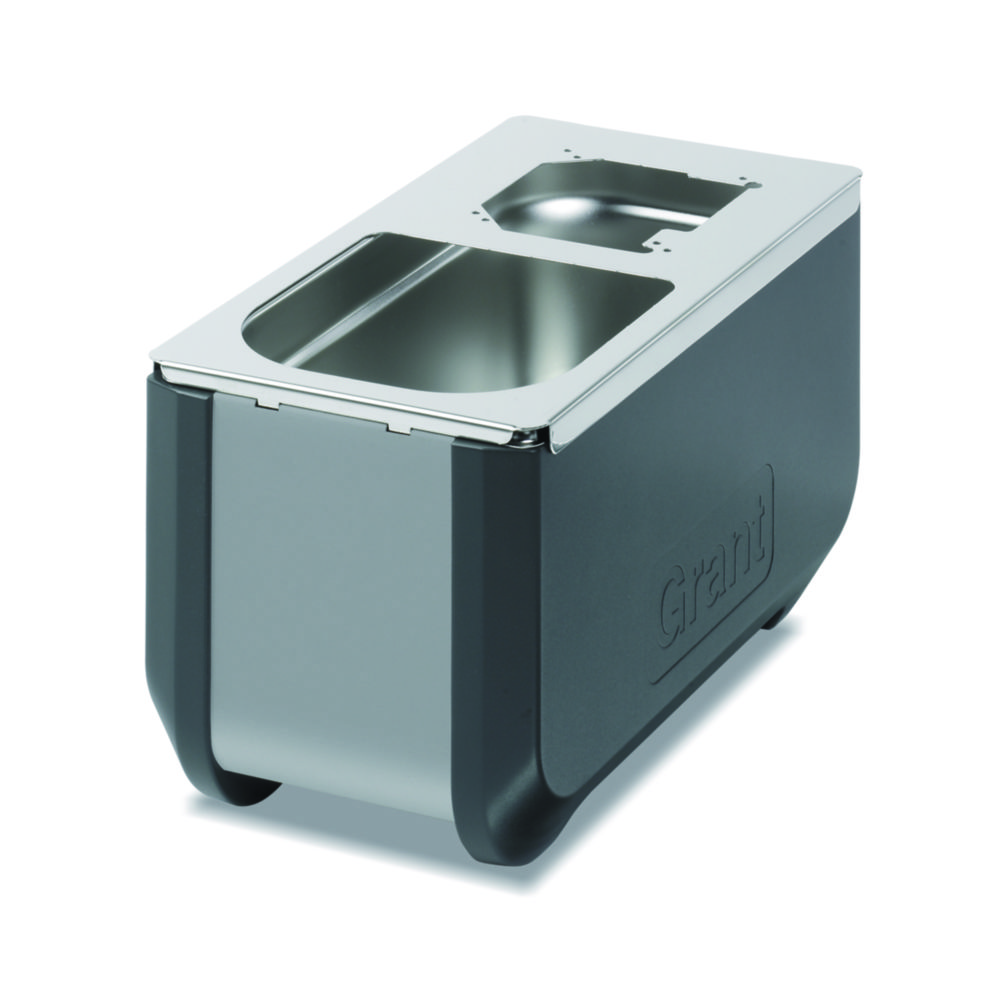

Tanks Optima™ series, stainless steel
High efficiency stainless steel (ST) tanks (range -15 °C to 200 °C). Drain tap included on ST12, ST18, ST26, ST38. Raised feet for carrying repositioning and retort access. Accessory polypropylene spheres or a lid must be used at temperatures between 60 °C and 100 °C. Above 100 °C only a lid must be used. Accessory cooling is required for temperatures below ambient.Please order lid and PP spheres separately.
Grant Instruments Ltd.
Grant Instruments Ltd.

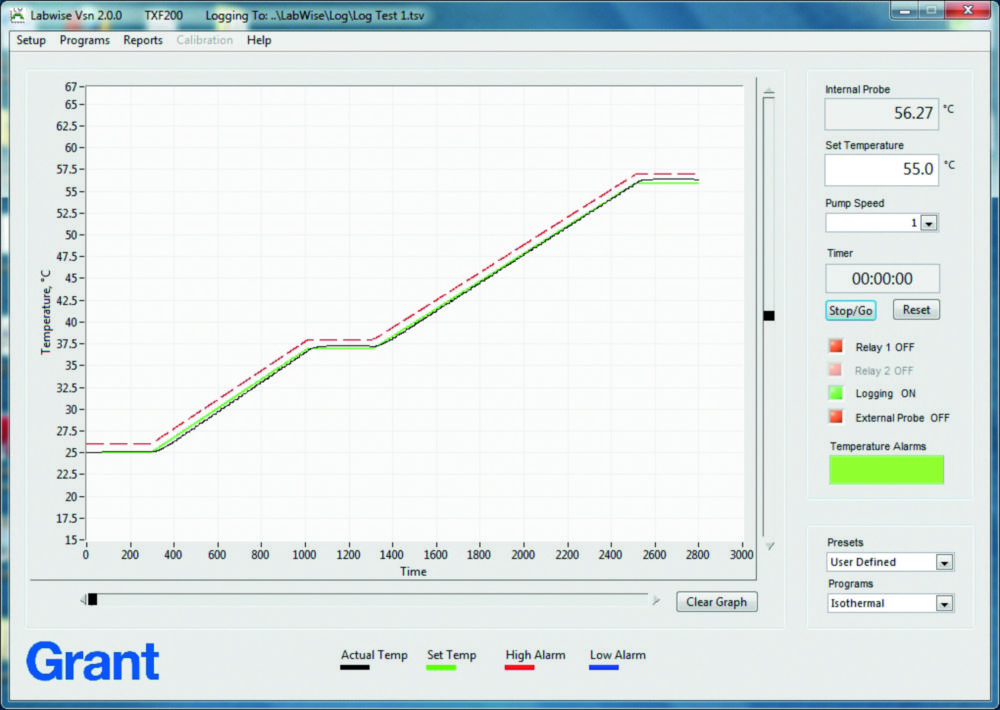

Labwise software for Thermostatic controllers Optima™ series
