Immersion circulator CORIO™ C
Product number:
7673349
Manufacturer:
Julabo GmbH
Packaging information:
Length:
452 mm
Width:
248 mm
Height:
315 mm
Weight:
2.7 kg
Description
The immersion circulator CORIO™ C is the basic model of the CORIO™ circulator portfolio. The bath attachment clamp is included in delivery and facilitates mounting of the circulator on any bath tank up to 30 litres.
- Precise temperature control
- For internal standard applications
- Bright, white, easy-to-read display
- Easy operation
- For bath tank up to 30 litres
- Timer: 0 to 999 min
- Class I (NFL) according to DIN 12876-1
Properties
| Amperage: | 9 A |
|---|---|
| Depth: | 160 mm |
| Dimensions (WxDxH): | 132 x 160 x 362 mm |
| Heating capacity: | 2 kW |
| Height: | 362 mm |
| IP code: | IP 21 |
| Immersion depth: | 166 mm |
| Manufacturer Article Number: | 9011000 |
| Max. delivery pressure: | 0.1 bar |
| Max. flow rate: | 6 l/min |
| Max. immersion depth: | 166 mm |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 20 °C |
| Operation: | Membrane keyboard |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz , 9 A |
| Power supply frequency: | 50 Hz |
| Temperature: | 20 ... 100 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CORIO™ C |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Weight: | 1.9 kg |
| Width: | 132 mm |
| With timer: | Yes |
Skip product gallery
From
€1,801.00*
From
€1,001.00*
Other customers also bought
Julabo GmbH
Julabo GmbH

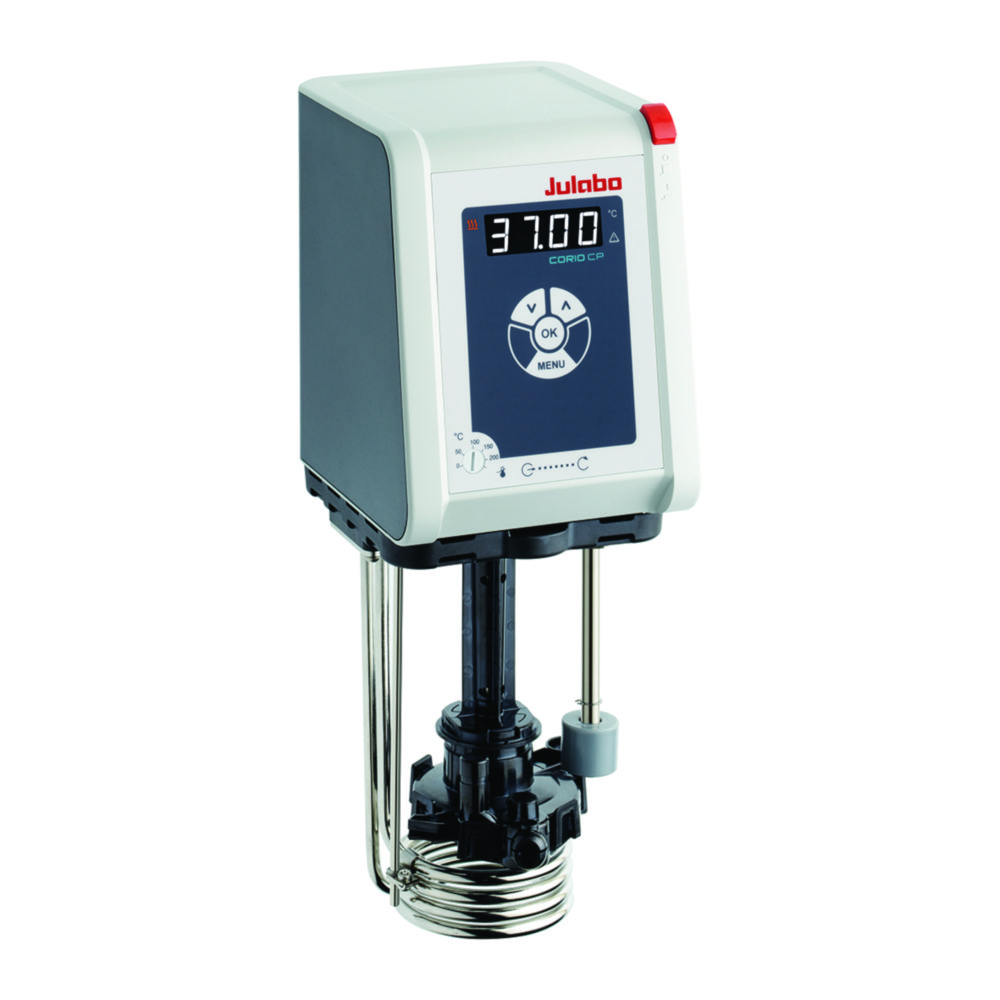

Thermoregulators CORIO™ CP
CORIO™ CP thermoregulators are capable to control the temperature of external applications in combination with an optional pump set. Suitable for bath vessels with a volume of up to 50 l.For internal and external applications (accessories required)Bright, white, easily visible display, even from a distanceVery quietEasy operationLow-level warning systemPump switch for internal and external circulationPowerful, continously variable pumpUSB connectionRS232 interfaceClass III (FL) according to DIN 12876-1Scope of supply: Thermoregulator, mains power cable, bath attachment clamp
Julabo GmbH
Julabo GmbH

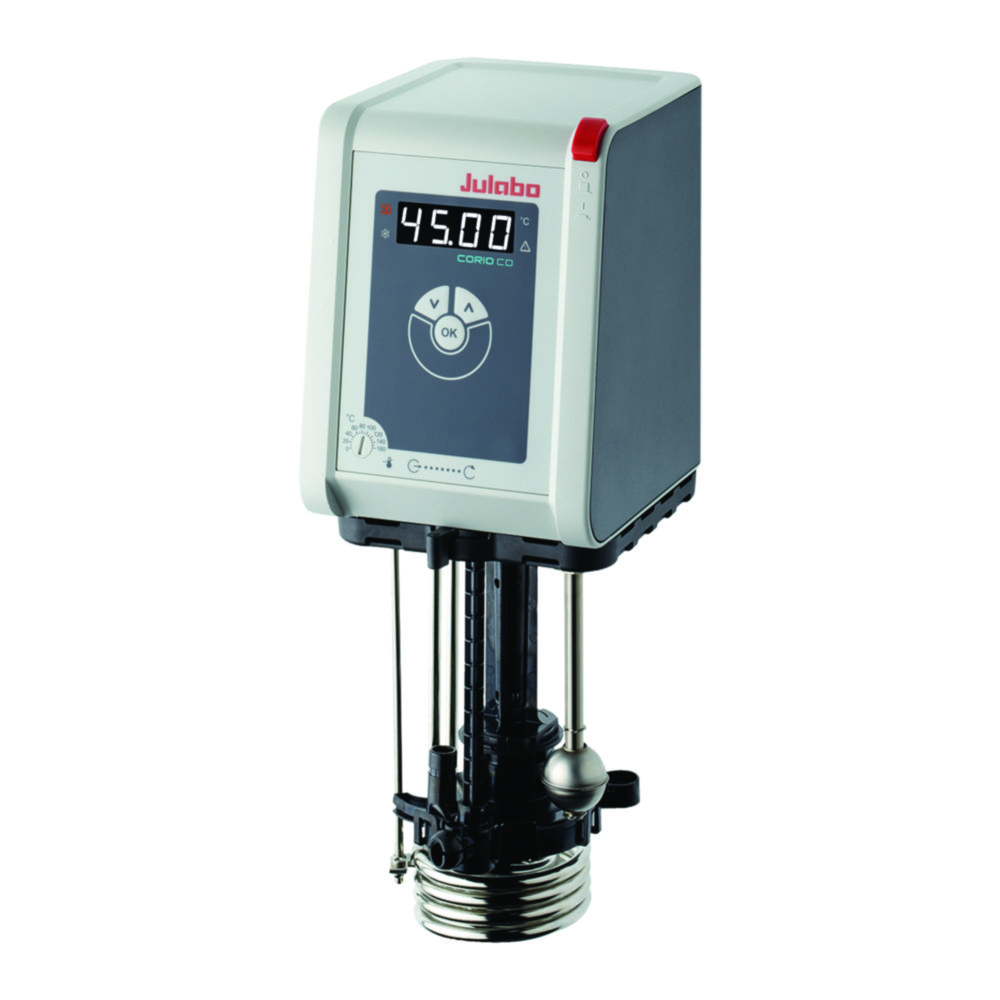

Immersion circulator CORIO™ CD
With a few simple steps you can install a pump set onto the CORIO™ CD immersion circulator. In no time at all, the circulator is ready for temperature control of an external application.Precise temperature controlBright, white, easy-to-read displayWhisper quietEasy operationFor bath tank up to 50 litresPump change-over between internal and external circulationPowerful, continously variable pumpUSB interfaceTimer: 0 to 999 minClass III (FL) according to DIN 12876-1
Skip product gallery
From
€30.08*
From
€211.00*
From
€248.00*
From
€302.00*
Accessories
Julabo GmbH
Julabo GmbH
Water bath preservative liquid Aqua Stabil
Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.
Julabo GmbH
Julabo GmbH
Transparent bath tanks for immersion thermostats CORIO™ C/CD, PC
Transparent bath tanks made of PC for immersion thermostats CORIO™.
Julabo GmbH
Julabo GmbH
Temperature hoses, stainless steel 1.4404, single insulation
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4.6 bar (at 200 °C).
Julabo GmbH
Julabo GmbH

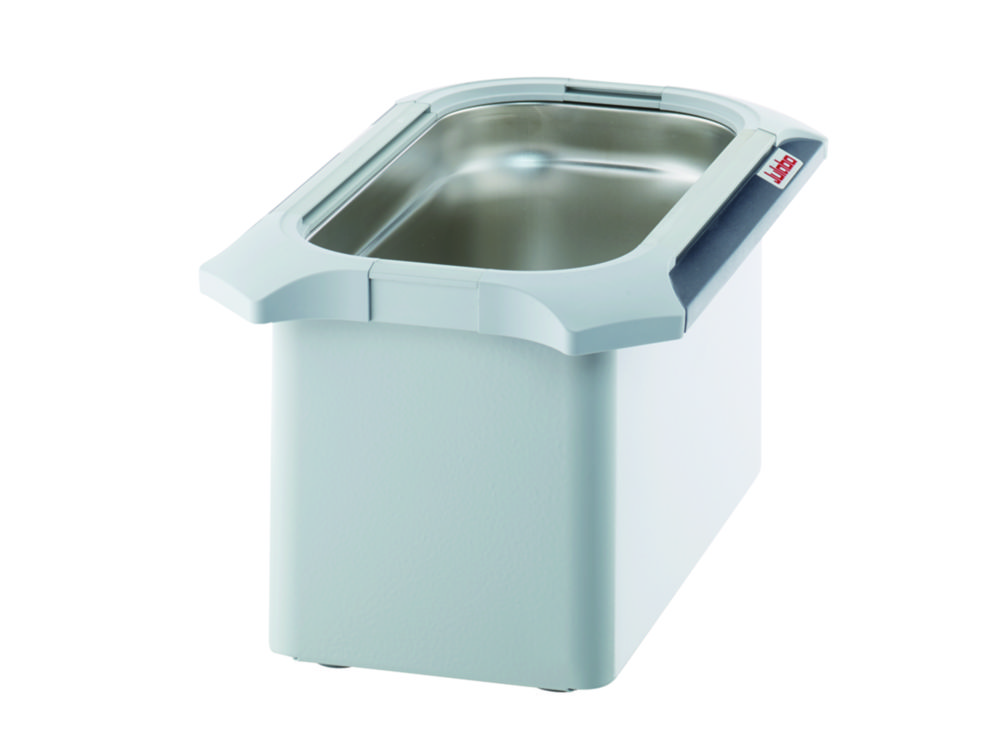

Stainless steel bath tanks for immersion thermostats CORIO™ C/CD
