Sonotrodes for ultrasonic homogenisers SONOPULS HD 5050 / SONOPULS HD 4000 series
Product number:
4667745
Manufacturer:
Bandelin electronic
Packaging information:
Description

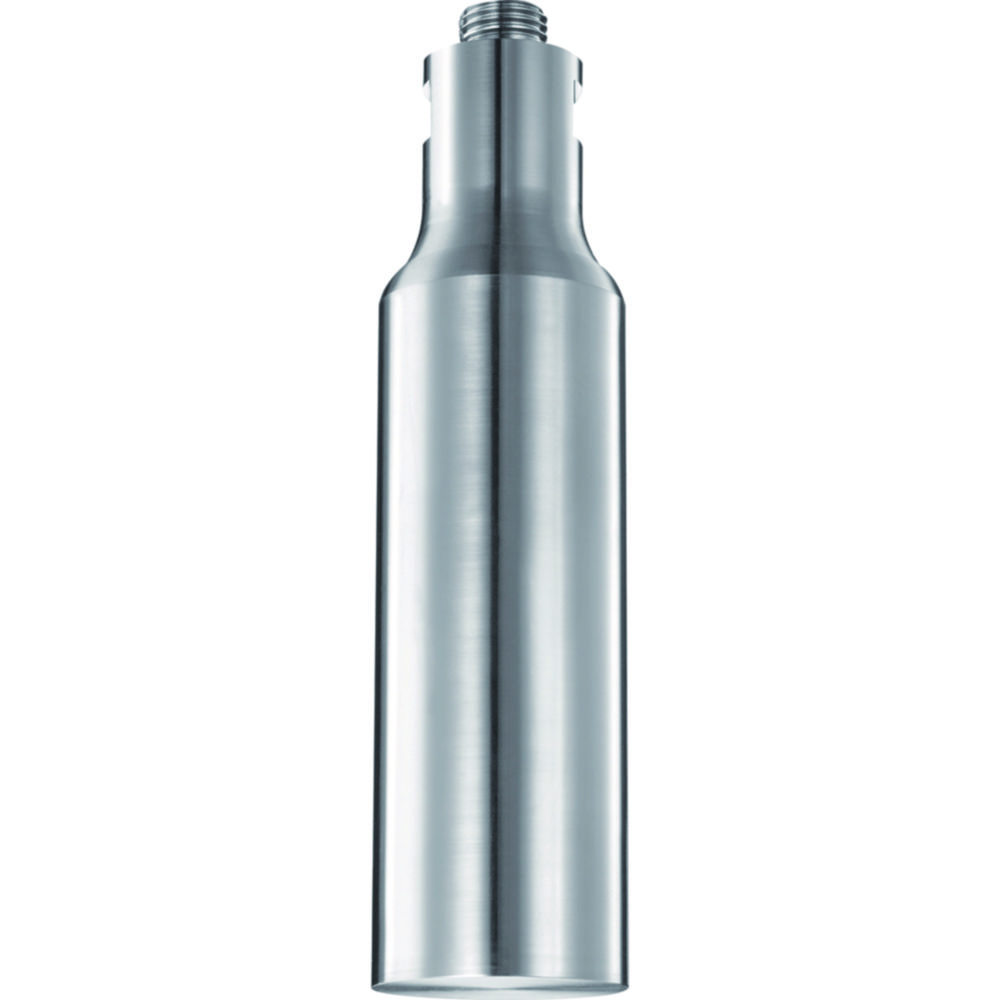

Titanium sonotrodes.
For connection to stepped horns/booster horns.
For connection to stepped horns/booster horns.
Properties
| For: | HD 4400 |
|---|---|
| For volume ml: | 500 ... 3000 |
| Length mm: | 144 |
| Manufacturer Article Number: | 3757 |
| Type: | TS 438 |
| Ø: | 38.0 mm |
