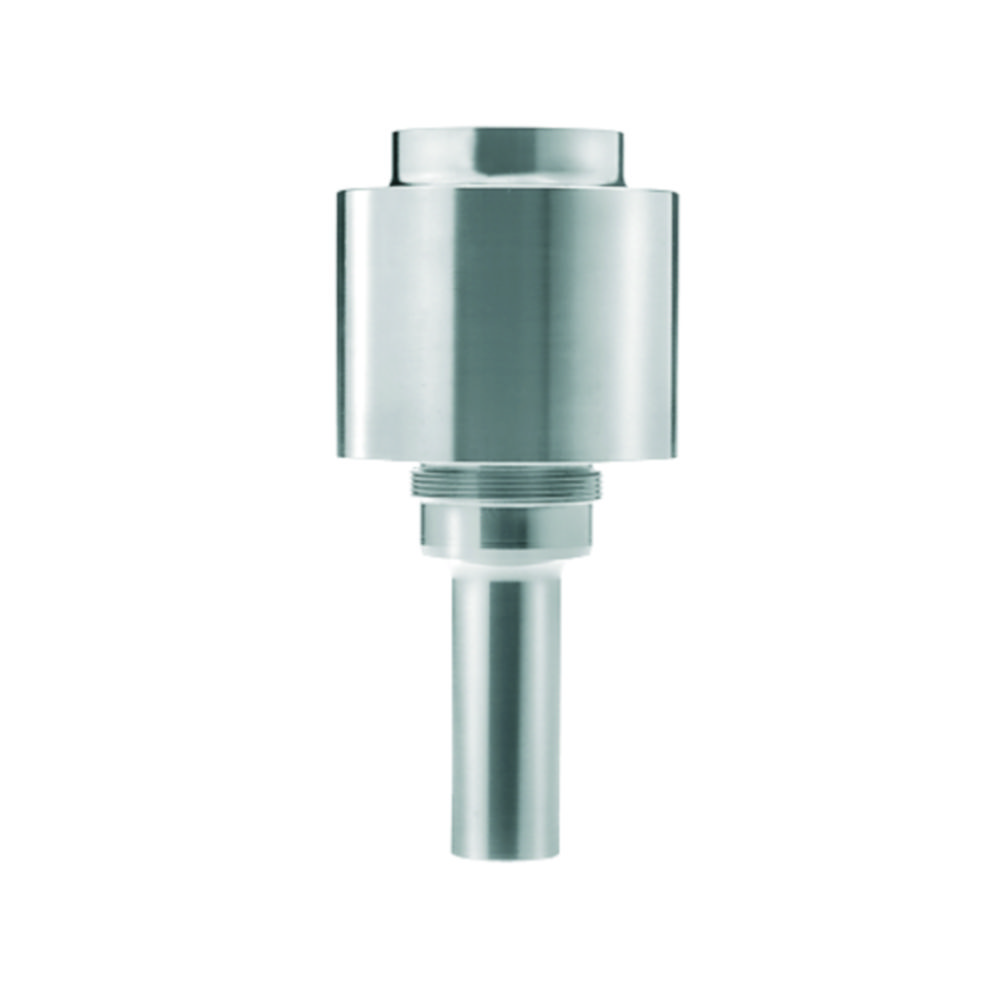

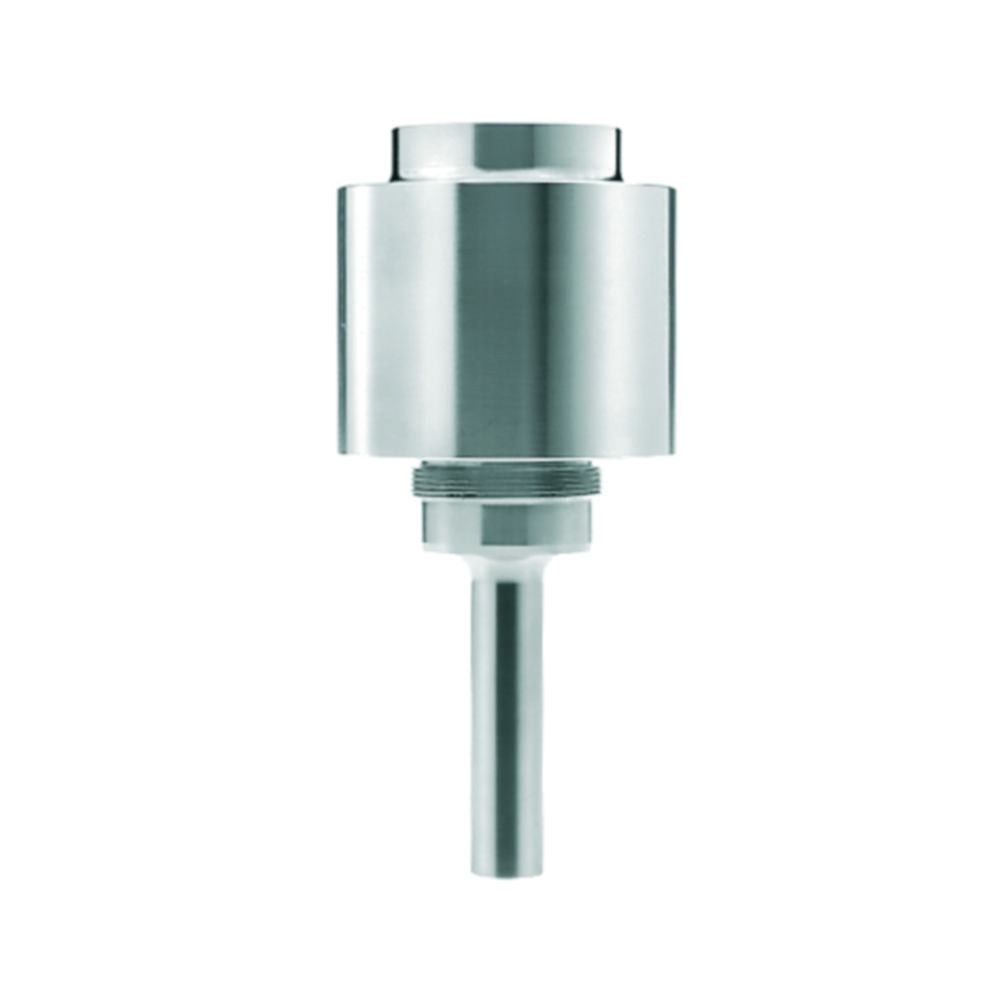

Booster horns and stepped horns for SONOPULS Ultrasonic homogenisers, TiAl6V4
Product number:
9650218
Manufacturer:
Bandelin electronic
Packaging information:
Weight:
0.765 kg
Description
Booster horns, stepped horns for connection of interchangeable sonotrodes (probes). Further booster horns are available on request.
Properties
| Dimensions (ØxL): | 19 x 122 mm |
|---|---|
| Fits for: | HD 2200.2 |
| Form (Hörner): | Boosterhorn |
| Length: | 122 mm |
| Manufacturer Article Number: | 3647 |
| Type: | SH 219 G |
| Ø: | 19 mm |
