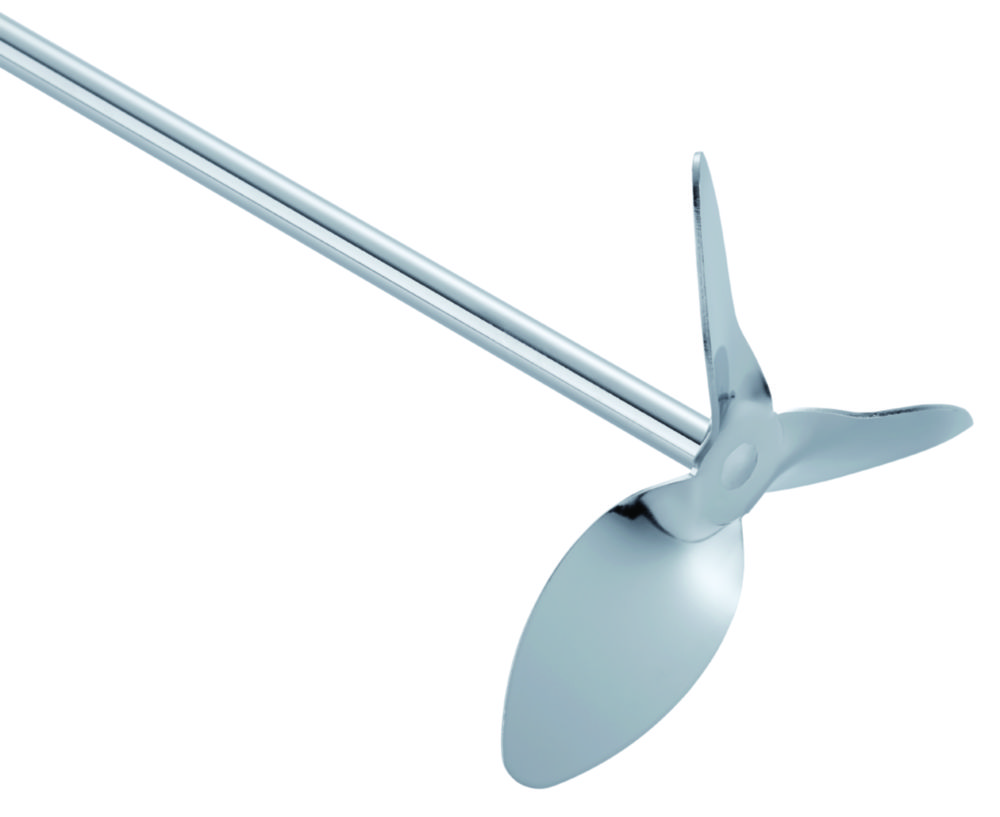

Propeller stirring rotors, 3-blade, stainless steel 1.4305
Product number:
9197024
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Weight:
0.553 kg
Description
The 3-blade propellers produce axial flow, and reduce shear forces to a minimum, even at high stirring speeds, thanks to their optimised blade design. Recommended for medium to high speed operations.
Other sizes available on request.
Other sizes available on request.
Properties
| Flow: | Axial |
|---|---|
| Length: | 800 mm |
| Manufacturer Article Number: | 0000477800 |
| Material: | Stainless steel |
| No. of stirring blades: | 3 |
| Stirring head Ø: | 140 mm |
| Stirring rotor Ø: | 10 mm |
| Type: | R 1388 |
| Type of stirrer: | Propeller stirrers |
