High-temperature chamber furnaces with air circulation NA / NAT
€12,130.00*
Content:
1
Delivery according to order confirmation
Product number:
6310044
Manufacturer:
Nabertherm GmbH
Packaging information:
Description

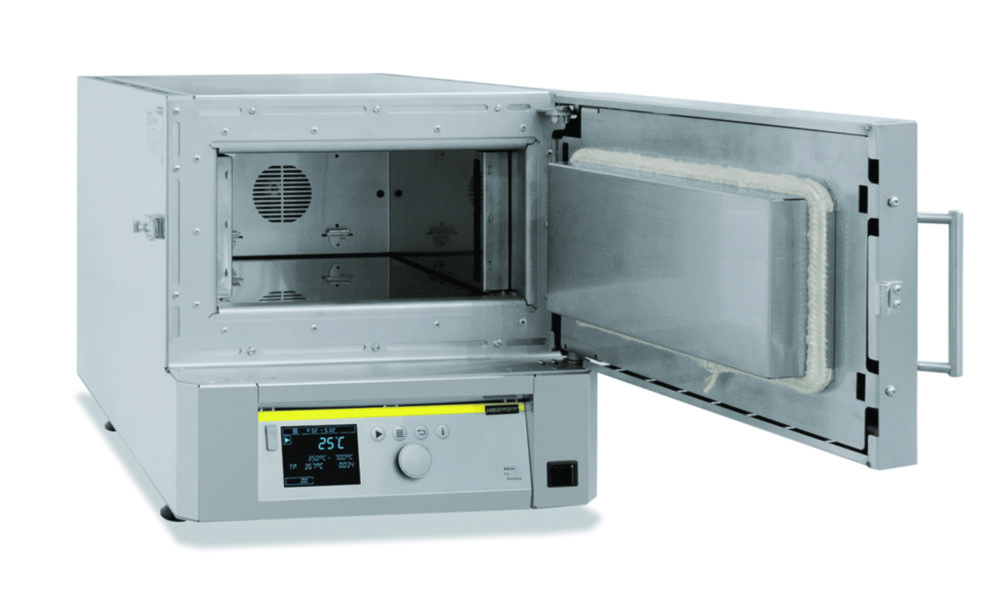

These chamber furnaces with air circulation are characterized by their extremely high temperature uniformity. Hence, they are especially suitable for processes such as cooling, crystalizing, preheating, curing, but also for numerous processes in tool making. Due to the modular concept, the forced convection furnaces can be adjusted to the process requirements by adding suitable equipment.
External dimensions vary for versions with additional equipment. Dimensions on request.
- Tmax 450 °C, 650 °C, or 850 °C
- Horizontal air circulation
- Swing door hinged on the right
- Temperature uniformity up to ±4 °C according to DIN 17052-1 (model NA 15/65 and NAT 30/85 up to ±5 °C)
- Optimum air flow and temperature uniformity through high circulation rates
- One frame sheet and rails for two additional trays included in the scope of delivery (NA 15/65 and NAT 30/85 without frame sheet)
- Stainless steel air-baffles in the furnace for optimum air circulation
- Base frame included in the delivery, NA 15/65 and NAT 30/85 designed as table-top model
- Air inlet and exhaust air flaps as additional equipment for using as drying oven
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Available with the programmable controllers B 500 and C 540 with adjustable ramps and hold times (NA 15/65 with B 510 or C 550)
- Standard power supply 400 V 3/N/PE 50/60 Hz (NA 15/65: 220 - 240 V, 1/N/PE)
External dimensions vary for versions with additional equipment. Dimensions on request.
Properties
| Depth int.: | 500 mm |
|---|---|
| Door opening: | To the right |
| Ext. depth: | 1330 mm |
| Ext. height: | 1440 mm |
| Ext. width: | 790 mm |
| External dimensions (WxDxH): | 790 x 1,330 x 1,440 mm |
| Height int.: | 350 mm |
| Int. width: | 350 mm |
| Internal dimensions (WxDxH): | 350 x 500 x 350 mm |
| Manufacturer Article Number: | NA--0683M2 |
| Max. temperature: | 850 °C |
| Max. voltage: | 480 V |
| Min. voltage: | 380 V |
| Nominal capacity: | 60 l |
| Power supply: | 380 ... 480 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 11000 W |
| Type: | NA 60/85/C540 |
| Type of auxiliary energy: | Mains connection |
| Type of door: | Tilting door |
| Weight: | 315 kg |
