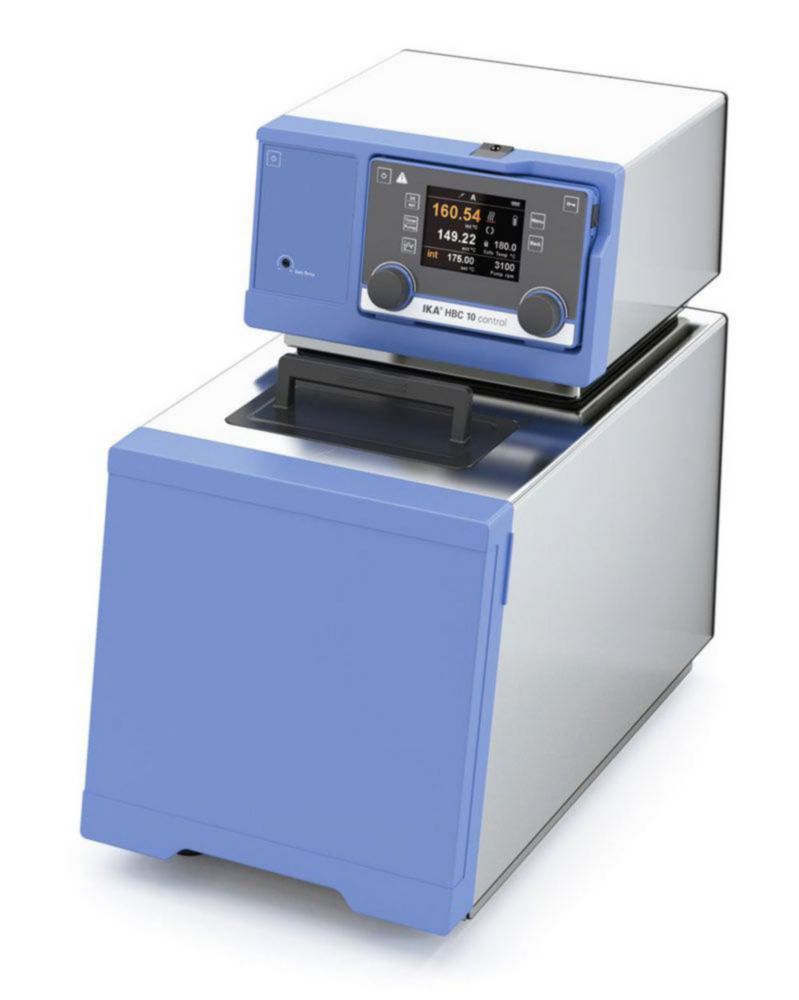

Heated bath circulators HBC control with stainless

Bath depth:	150 mm
Depth opening:	82 mm
Ext. depth:	506 mm
Ext. height:	456 mm
Ext. width:	275 mm
External dimensions (WxDxH):	275 x 506 x 456 mm
Heating capacity:	2500 W
IP code:	IP 21
Manufacturer Article Number:	0004137000
Material bath:	Stainless steel
Max. delivery pressure:	0.61 bar
Max. flow rate:	31 l/min
Max. suction pressure:	0.45 bar
Max. temperature:	250 °C
Max. voltage:	230 V
Max. volume bath:	11 l
Min. temperature:	+10 °C
Min. volume bath:	8 l
Opening (WxD):	172 x 82 mm
Power supply:	230 V, 50/60 Hz
Power supply frequency:	50/60 Hz
Temperature:	RT+10 ... 250 °C
Temperature addition:	RT
Temperature stability:	0,01 K
Type:	HBC 10 control
Type of auxiliary energy:	Mains connection
Type of display:	TFT
Volume bath:	8 ... 11 l
Weight:	18.3 kg
Width opening:	172 mm
With timer:	Yes

Water bath preservative liquid Aqua Stabil

Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.

From €30.08*

Refrigeration Bath circulators to -55°C

Compact design and high cooling capacity at low temperatures.Option: Natural refrigerant available on requestHeating capacity CC-505 / CC-505wl: CC-508 to CC-525w: 1.5 kW 3.0 kWPump data CC-505 to CC-525w Max. pressure: Max. suction: 25 L/min / 0.7 bar 18.5 L/min / 0.4 barSupply requirement CC-505 to CC-508w: CC-510 to CC-525w: 230 V / 50 Hz 400 V / 50 HzTemp. stability acc. to DIN 12876:+/-0.02 K*with displacement insertFunction version available by E-grade.

From €8,820.00*

Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™

Test tube racks made of stainless steel.Suitable for heating circulators with the bath types BC4, BC6, B5, BT5 and refrigerated circulators with the bath types 200F, 201F, 300F, 310F, 450F.

From €99.00*

Refrigerated circulators CORIO™ CD

Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)USB connectionSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openings2 hose olives each suitable for hose inner diameter 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)USB connectionSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openings2 hose olives each suitable for hose inner diameter 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1

From €3,831.00*

Refrigerated circulators DYNEO™ DD

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.3.5" TFT colour display with multilingual user interfaceIntegrated programmer for 8 x 60 program stepsEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionSpace-saving cooling coil design yields more usable space in the bath tankExternal Pt100 connectionStainless steel bath tank including bath lid and drain tapRemovable ventilation grid2 hose olives each suitable for hose inner diameter 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.3.5" TFT colour display with multilingual user interfaceIntegrated programmer for 8 x 60 program stepsEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionSpace-saving cooling coil design yields more usable space in the bath tankExternal Pt100 connectionStainless steel bath tank including bath lid and drain tapRemovable ventilation grid2 hose olives each suitable for hose inner diameter 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1

From €4,874.00*

Refrigerated circulators DYNEO™ DD, with analogue interface

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.3.5" TFT colour display with multilingual user interfaceIntegrated programmer for 8 x 60 program stepsEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionSpace-saving cooling coil design yields more usable space in the bath tankExternal Pt100 connectionStainless steel bath tank including bath lid and drain tapRemovable ventilation grid2 hose olives each suitable for hose inner diameter 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1Analogue interface

From €5,313.00*

Refrigerated circulators DYNEO™ DD, with RS232 interface

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.3.5" TFT colour display with multilingual user interfaceIntegrated programmer for 8 x 60 program stepsEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionSpace-saving cooling coil design yields more usable space in the bath tankExternal Pt100 connectionStainless steel bath tank including bath lid and drain tapRemovable ventilation grid2 hose olives each suitable for hose inner diameter 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1RS232 interface

From €5,149.00*

Hose olives for Refrigerated circulators

From €25.00*

Refrigerated circulator TXF200-R4R

Powerful circulator for routine and sophisticated low temperature applications in the laboratory. The TXF200-R4R includes the TXF200 heating circulator and an R4R tank/refrigeration unit. The refrigeration unit can be switched off independently of the circulator to allow heating-only applications.Full colour QVGA TFT displayTimer function with acoustic alarmMemory capacity for 10 programs with up to 100 segmentsChoice of languages: English, French, German, Spanish, and ItalianFloat switch protects against low liquid levelAdjustable over-temperature protectionNo spill valved front drain3 preset programsEnvironmentally friendly refrigerant (R290)Temperature range:-30 ... 100 °CTemperature stability:±0.1 °CFlow rate:22 l/minPump pressure:0.53 barTimer:1 min ... 99 h 59 min

From €9,621.00*

Refrigerated / heated circulatores CBC 5 control

Powerful circulators with strong heating and cooling power for operating temperatures from -25 °C to 200 °C. With speed-controlled pressure and suction pump, suitable for external applications. Very good thermal insulation, therefore particularly fast heating-up times and low heat input at low temperatures. All parameters can be read, monitored and documented via software.Connection for external Pt100 temperature sensor and external solenoid valves via Multi I/O connectionVisual and audible warning functionsUSB/RS 232 interfaceSafety drain valveAdjustable safety circuitCalibration optionWith removable TFT display for controlling and monitoring the device parameters. The display can be used as a remote control, e.g. in a fume hood

From €7,112.00*

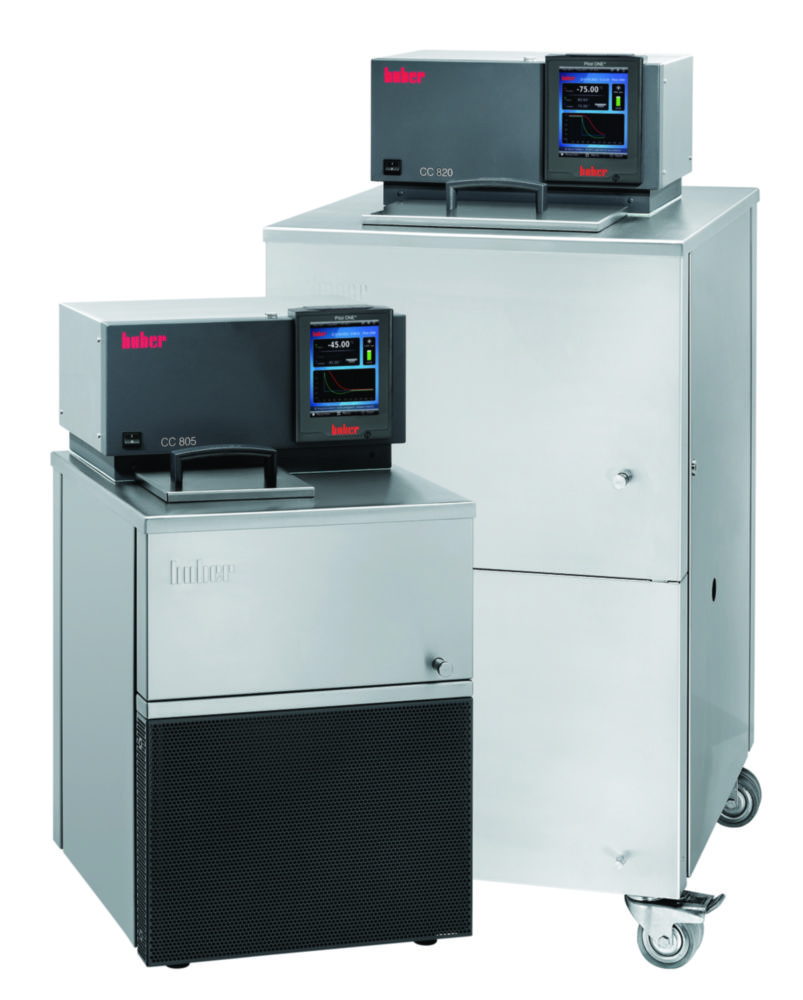

Refrigerated Bath Circulators to -90°C

The CC-805 is a low cost alternative for low temperature applications when low power is required.Option: Natural refrigerant available on requestPump data CC-805 to CC-906w:Max. pressure: Max. suction:25 L/min / 0.7 bar 18.5 L/min / 0.4 barSupply requirement: CC-805 / CC-902:400 V 50 Hz 230 V 50 HzTemp. stability acc. to DIN 12876:0.02 K*with displacement insertFunction version available by E-grade

From €17,850.00*

Refrigerated circulator baths series HighTech CF

The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and safety class 3 according to DIN12876-1. The maximum ambient temperature of 40 °C as well as ventilated air cooling allow the units to be positioned very closely together, with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments incorporate reliable Microprocessor electronics offering high temperature stability as well as warning and safety functions.Ergonomic design and easy operationCompact dimensions require minimal spaceSplash-proof keypadBright VFD display and interactive LCD dialogue displayHighly precise ICC cascade temperature controlRS232/RS485 interface for PC connectionAdjustable high temperature cut-outPump connections for external temperature applicationsBath opening for temperature control of small objects in the bathElectronically adjustable pump outputExternal Pt100 sensor connectionIntegrated programmer with 6x60 program stepsEarly warning system for low liquid level3-point calibrationTCF Temperature Control Features

From €6,000.00*

Heated bath circulators HBC control, with stainless steel bath
