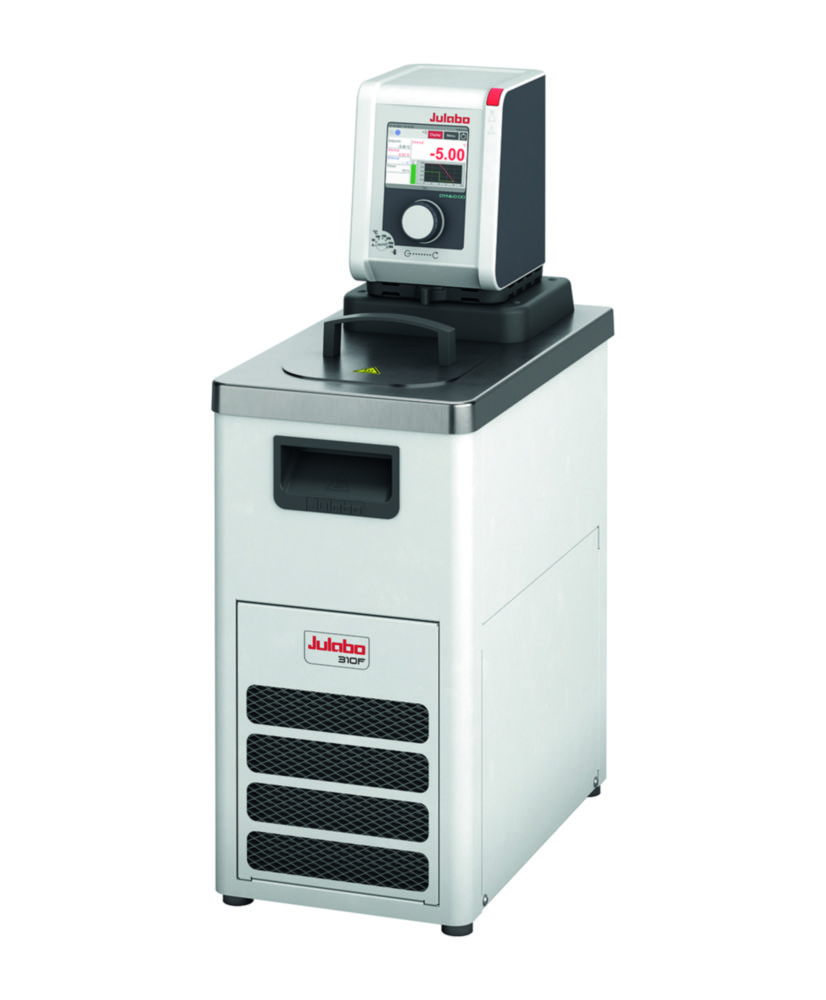

Refrigerated circulators DYNEO™ DD, with RS232 interface
Product number:
4663257
Manufacturer:
Julabo GmbH
Packaging information:
Description
Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.
- 3.5" TFT colour display with multilingual user interface
- Integrated programmer for 8 x 60 program steps
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- Infinitely adjustable pressure pump
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- External Pt100 connection
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
- RS232 interface
Properties
| Bath depth: | 150 mm |
|---|---|
| Cooling capacity at 20 °C: | 1 kW |
| Depth opening: | 130 mm |
| Ext. depth: | 490 mm |
| Ext. height: | 740 mm |
| Ext. width: | 420 mm |
| External dimensions (WxDxH): | 420 x 490 x 740 mm |
| Heating capacity: | 2 kW |
| Manufacturer Article Number: | 9021707.D |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.7 bar |
| Max. flow rate: | 27 l/min |
| Max. temperature: | 200 °C |
| Max. volume bath: | 7.5 l |
| Min. temperature: | -50 °C |
| Min. volume bath: | 5 l |
| Opening (WxD): | 180 x 130 mm |
| Refrigerant: | R449A |
| Temperature: | -50 ... 200 °C |
| Temperature stability: | ±0,01 °C |
| Type: | DD-1000F.D |
| Type of auxiliary energy: | Mains connection |
| Type of display: | TFT |
| Volume bath: | 5 ... 7.5 l |
| Weight: | 51.2 kg |
| Width opening: | 180 mm |
| With lid: | Yes |
| With timer: | Yes |
