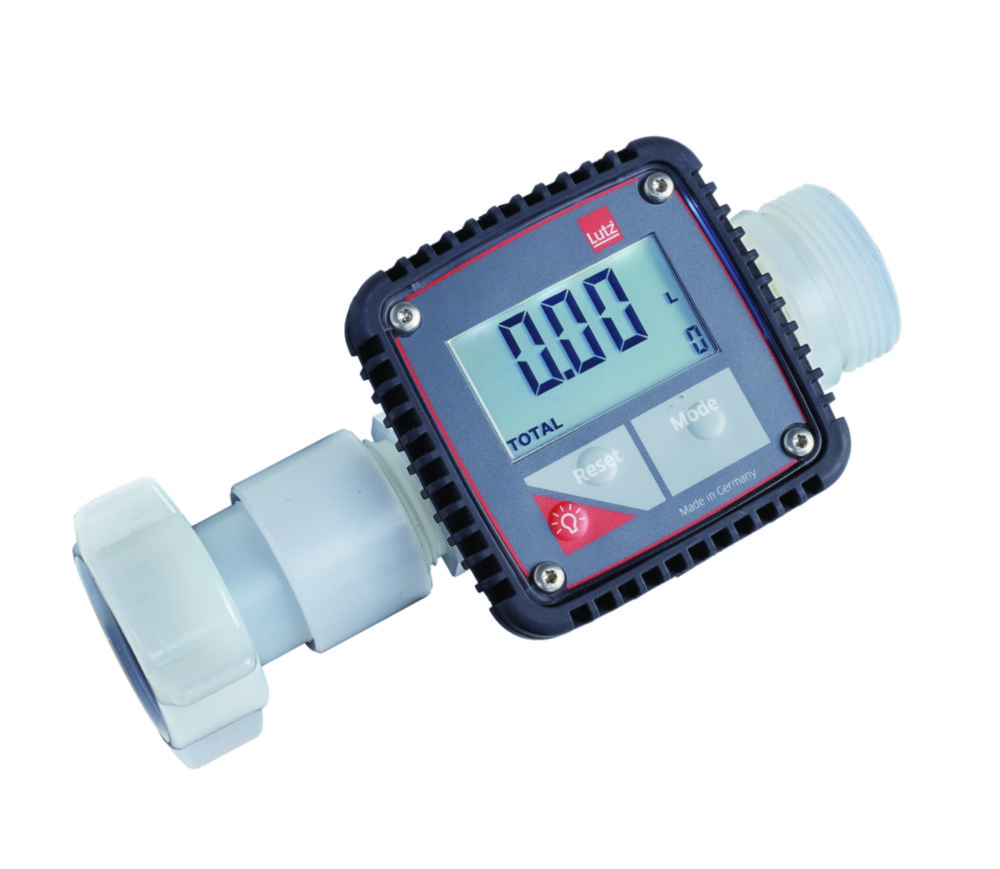

Flow meter TR3
Product number:
6311934
Manufacturer:
Lutz Pumpen GmbH
Packaging information:
Weight:
0.543 kg
Description
Can be combined with all drum and container pumps. For thin-bodied fluids.
- Measurement according to the turbine wheel principle
- Free-rotatable after assembly
- Variable display alignment
- Large illuminated display
- Simultaneous display of subset (4-digit) and total quantity (7-digit)
- Display of the partial and total volume
- Customary 1.5 V batteries (AAA)
Properties
| Battery/rechargeable battery: | 2 x 1.5 V, AAA |
|---|---|
| Connection size: | G 1 ¼ |
| Designation ANSI: | AAA |
| IP code: | IP 65 |
| Manufacturer Article Number: | 0213-060 |
| Material housing: | PVDF |
| Max. Viscosity: | 40 mPa·s |
| Max. pressure: | 10 bar |
| Max. voltage battery/rechargeable battery: | 1.5 V |
| Max. volume flow rate: | 120 l/min |
| Min. viscosity: | 0.8 mPa·s |
| No. of batteries/rechargeable batteries: | 2 |
| Type: | TR3-PVDF |
| Type of auxiliary energy: | Battery |
| Viscosity: | 0.8 ... 40 mPa·s |
