Drum pump PumpMaster, for acids and chemical liquids
€256.90*
Content:
1
| Quantity | Unit price |
|---|---|
| To 9 |
€256.90*
|
| From 10 |
€244.00*
|
Delivery according to order confirmation
Product number:
6259907
Manufacturer:
Bürkle GmbH
Packaging information:
Length:
290 mm
Width:
284 mm
Height:
130 mm
Weight:
1 kg
Description

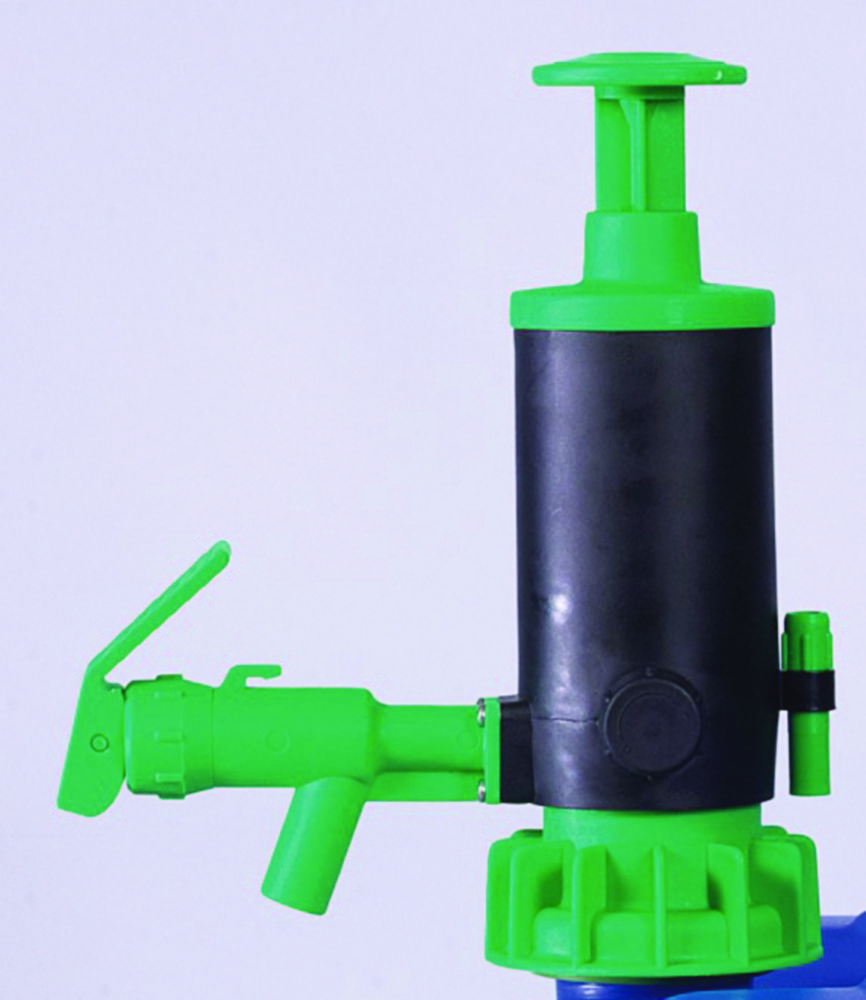

The manual pressure pump is ideally suited for drawing off, decanting and emptying canisters and barrels. The hand pump is used to create excess pressure that forces the liquid out of the container. The stopcock also allows extraction of small quantities of liquid. The PumpMaster container pump is mounted on the container using a flexible stopper with a variable and adjustable diameter. No special thread adapters are required. PumpMaster fits all commercial container openings with a diameter from 46.5 mm to 60 mm. The immersion tube has a length of 95 cm and it can be shortened depending on the size of the container.
Green. FKM gasket.
Scope of supply: Drum pump, three bungs in different sizes
Scope of supply: Drum pump, three bungs in different sizes
Properties
| Flow rate: | 9 l/min |
|---|---|
| Immersion depth: | 950 mm |
| Immersion tube Ø: | 19 mm |
| Manufacturer Article Number: | 5202-1000 |
| Material housing: | PP |
| Material media contact: | FKM |
| Max. opening container Ø: | 60 mm |
| Min. opening container Ø: | 46.5 mm |
| Opening container Ø: | 46.5 ... 60 mm |
