Dispersing heads for T50 digital ULTRA-TURRAX®
Product number:
9570898
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Weight:
1.01 kg
Description

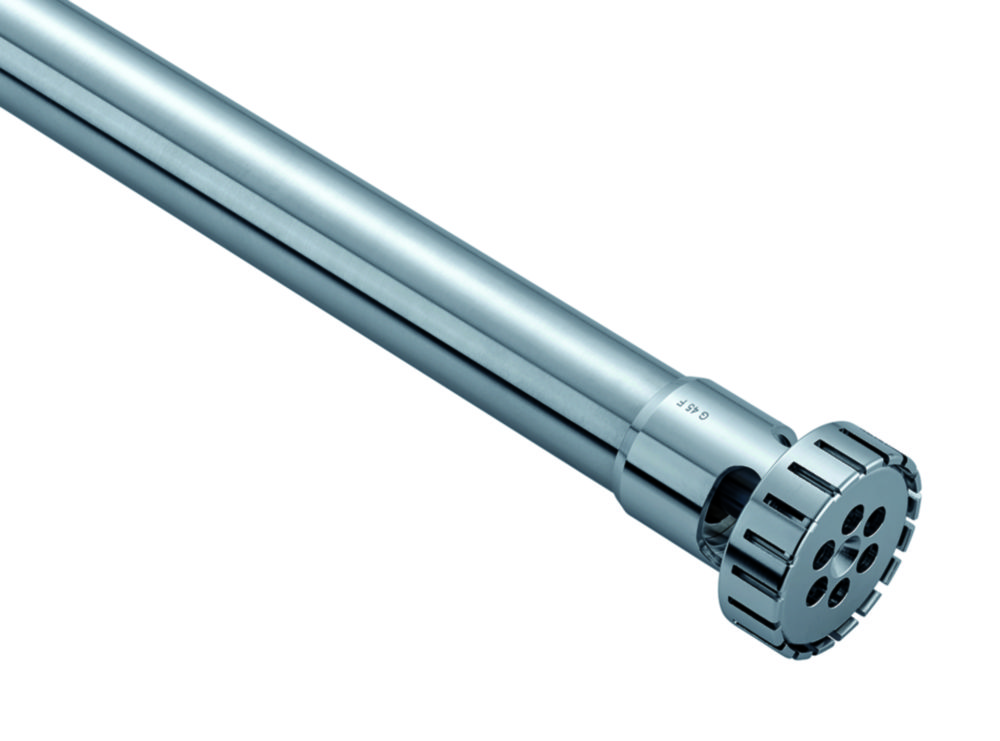

Stainless steel dispersing heads
Properties
| Final fineness emulsion: | 1 ... 10 µm |
|---|---|
| Final fineness suspension: | 10 ... 30 µm |
| Immersion depth: | 70 ... 250 mm |
| Manufacturer Article Number: | 0008004100 |
| Material: | FFKM/WC/Stainless steel |
| Max. immersion depth: | 250 mm |
| Max. temperature: | 150 °C |
| Max. working volume: | 10 l |
| Min. immersion depth: | 70 mm |
| Min. working volume: | 0.25 l |
| Stator Ø: | 45 mm |
| Type: | S 50 KG - HH - G 45 F |
| Working volume: | 0.25 ... 10 l |
| Ø rotor: | 40 mm |
