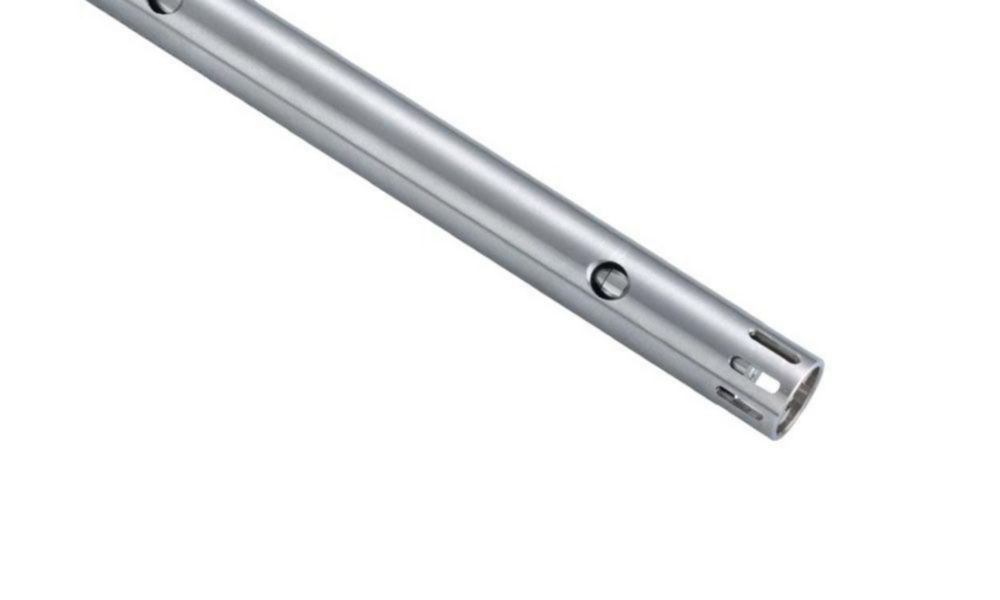

Dispersing heads for T 18 ULTRA-TURRAX® series
Product number:
9570841
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Length:
244 mm
Width:
33 mm
Height:
30 mm
Weight:
0.133 kg
Description
Plastic dispersing heads: Autoclavable
Stainless steel dispersing heads: Ultimate fineness emulsions 1 to 10 µm and suspensions 10 to 50 µm, sterilisable by all methods.
Stainless steel dispersing heads: Ultimate fineness emulsions 1 to 10 µm and suspensions 10 to 50 µm, sterilisable by all methods.
Properties
| Final fineness emulsion: | 1 ... 10 µm |
|---|---|
| Final fineness suspension: | 10 ... 50 µm |
| For: | T 18 brushless digital, T 18 digital, T 18 mini digital |
| Immersion depth: | 25 ... 70 mm |
| Manufacturer Article Number: | 000L004639 |
| Material: | PTFE/Stainless steel |
| Max. immersion depth: | 70 mm |
| Max. temperature: | 180 °C |
| Max. working volume: | 100 ml |
| Min. immersion depth: | 25 mm |
| Min. working volume: | 1 ml |
| Stator Ø: | 10 mm |
| Type: | S 18 N - 10 G |
| Working volume: | 1 ... 100 ml |
| Ø rotor: | 7.5 mm |
