Dispersing heads for T50 digital ULTRA-TURRAX®
Product number:
4656098
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description

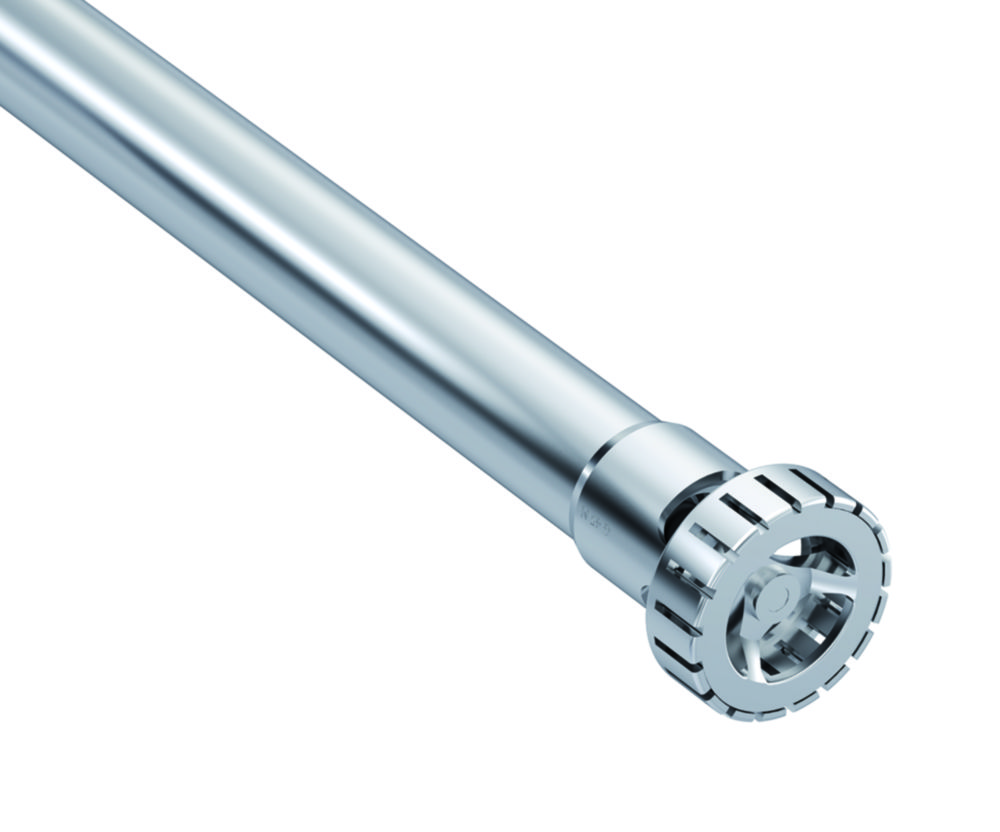

Stainless steel dispersing heads
Properties
| Final fineness emulsion: | 5 ... 20 µm |
|---|---|
| Final fineness suspension: | 25 ... 50 µm |
| Immersion depth: | 70 ... 260 mm |
| Manufacturer Article Number: | 0010000630 |
| Material: | FFKM/PTFE/Stainless steel |
| Max. immersion depth: | 260 mm |
| Max. temperature: | 150 °C |
| Max. working volume: | 15 l |
| Min. immersion depth: | 70 mm |
| Min. working volume: | 0.5 l |
| Stator Ø: | 45 mm |
| Type: | S 50 KD - G 45 M |
| Working volume: | 0.5 ... 15 l |
| Ø rotor: | 40.5 mm |
