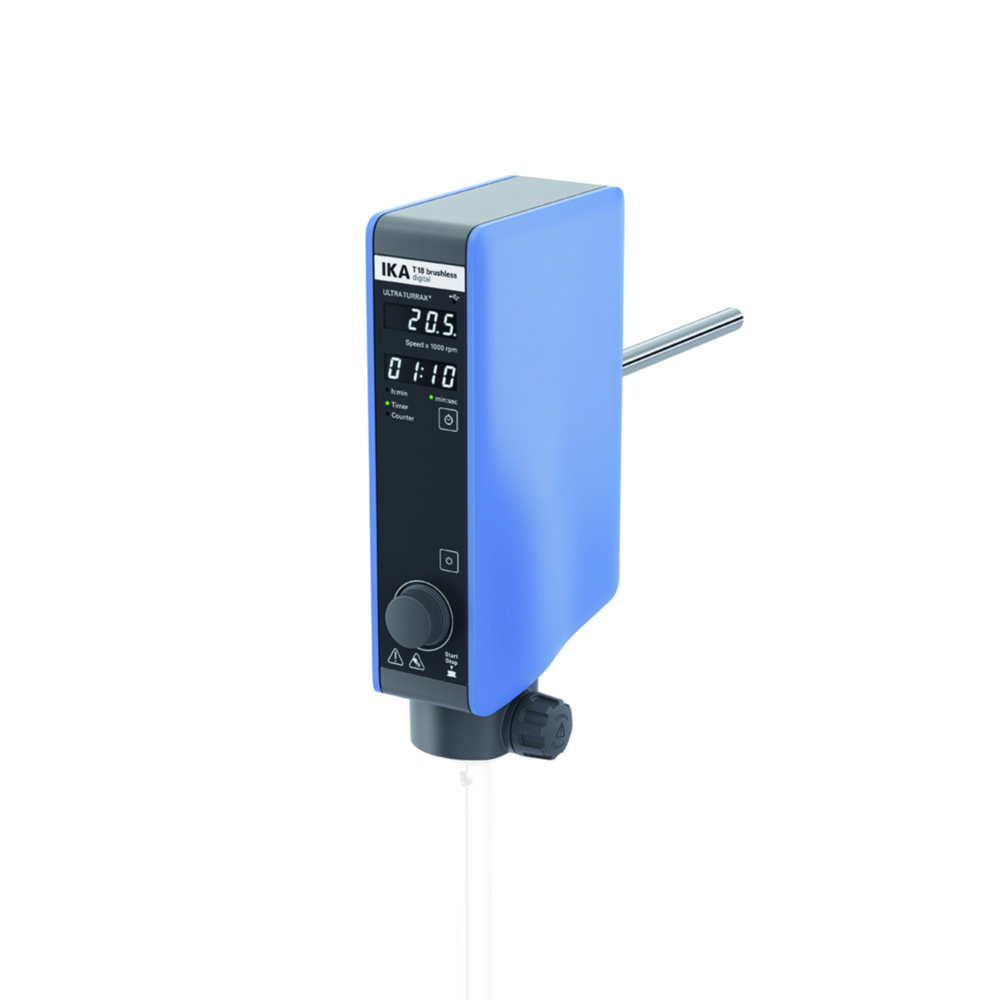

Dispergiergeräte-Set T 18 brushless digital ULTRA-TURRAX® Solution
Product number:
4714328
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description
Hochleistungs-Dispergiergerät mit bürstenlosem DC-Motor für Volumen von 1 bis 1500 ml (H2O) mit digitaler Drehzahlanzeige. Der Drehzahlbereich von 3000 bis 25000 min-1 ermöglicht das Arbeiten mit hohen Umfangsgeschwindigkeiten. Große Auswahl an Dispergierwerkzeugen aus Edelstahl mit hoher chemischer Beständigkeit oder Einweg-Werkzeuge aus Kunststoff erhältlich.
Lieferumfang: Dispergiergerät, Dispergierwerkzeug S 18 N - 19 G, Stativ R 1826, Kreuzmuffe R 182
- Bürstenloser Motor für längere Lebensdauer des Motors, leiseren Betrieb und hygienische Anwendungen
- Digitale Geschwindigkeitsanzeige und -einstellung
- Timerfunktion für unbeaufsichtigten Betrieb
- Schnellkupplung für einfaches und schnelles Tauschen der Dispergierwerkzeugen
- USB-Schnittstelle zur Fernsteuerung und Dokumentation mit Laborsoftware labworldsoft®
Properties
| Depth: | 161 mm |
|---|---|
| Dimensions (WxDxH): | 89 x 161 x 270 mm |
| Display: | Digital |
| Height: | 270 mm |
| IP code: | IP 30 |
| Manufacturer Article Number: | 0010015151 |
| Max. Viscosity: | 5000 mPa·s |
| Max. speed: | 25000 1/min |
| Max. voltage: | 240 V |
| Max. working volume: | 1500 ml |
| Min. speed: | 3000 1/min |
| Min. voltage: | 220 V |
| Min. working volume: | 1 ml |
| Noise level: | 70 db(A) |
| Power supply: | 220 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 400 W |
| Speed: | 3,000 ... 25,000 1/min |
| Type: | T 18 brushless digital ULTRA-TURRAX® Solution |
| Type of auxiliary energy: | Mains connection |
| Weight: | 3 kg |
| Width: | 89 mm |
| With timer: | Yes |
| Working volume: | 1 ... 1,500 ml |
