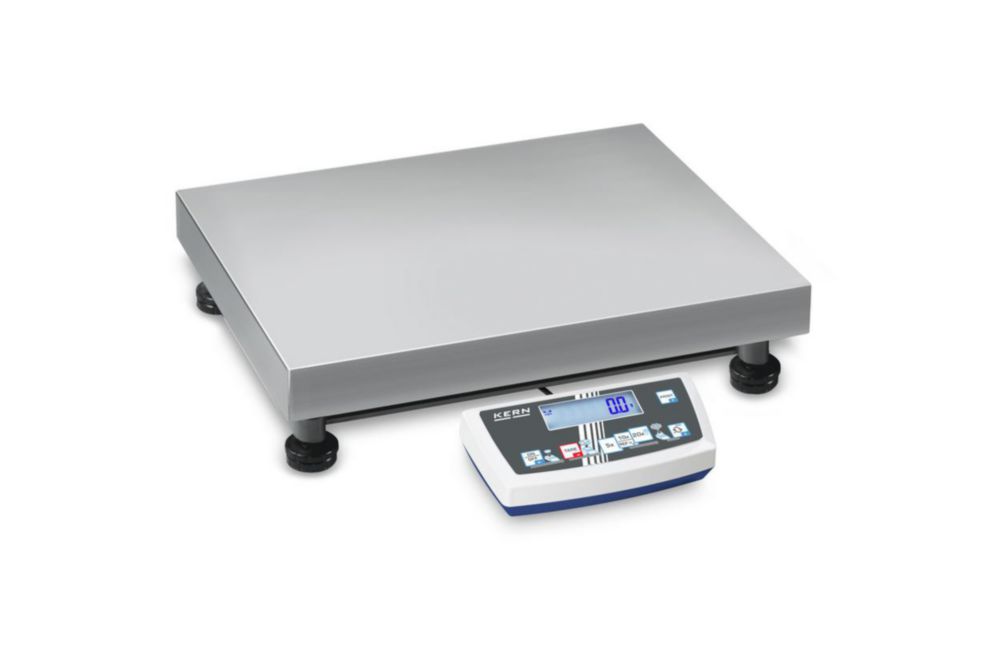

Counting scales CDS, IoT-Line
Product number:
4660095
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description
Industrial counting scale for heavy loads. KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands. The KERN Communication Protocol (KCP) enables searching and remote control of the balance using external control devices or computers.
- Backlit LCD display
- Counting resolution up to 300,000 points
- Visualised process avoids operating errors
- Dimensions of display device (W×D×H): 225×115×60 mm
Properties
| Adjusting program: | External |
|---|---|
| Depth weighing plate: | 400 mm |
| Manufacturer Article Number: | CDS 60K0.2 |
| Max. load: | 60 kg |
| Max. voltage: | 240 V·AC |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0,2 g |
| Reproducibility: | 0,4 g |
| Type: | CDS 60K0.2 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111502 |
| Warranty: | 3 years |
| Weighing plate (WxD): | 500 x 400 mm |
| Weight: | 19 kg |
| Width weighing plate: | 500 mm |
