Crane balances HFC
Product number:
4660264
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description

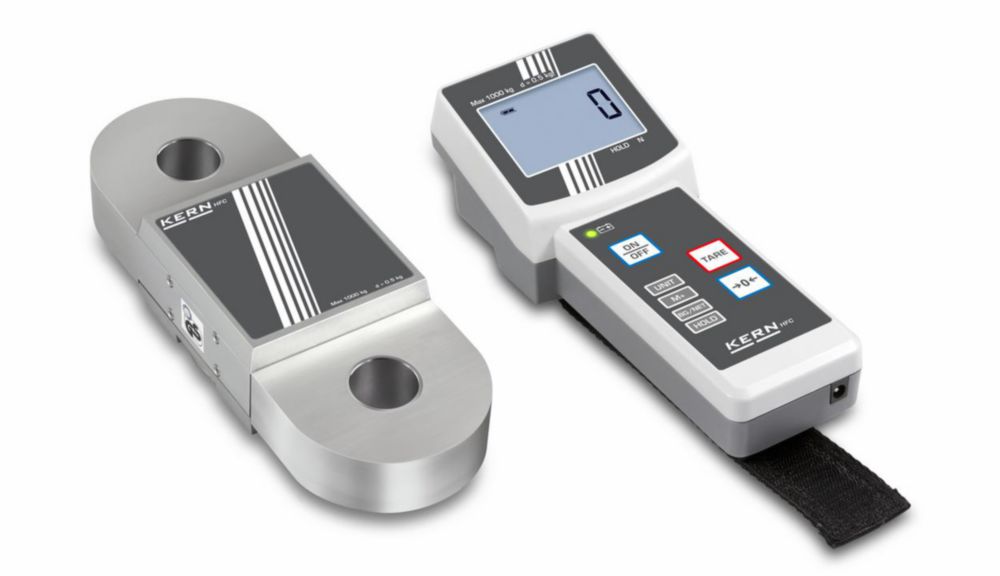

Compact crane balance for industrial use, on building sites, in freight centres and ports. With the TÜV certification mark, the balance meets the requirements of the standard EN 13155 and EN 61010-1. The display device, with integrated radio module, allows the weighing data to be read even at a great distance from the load receptor, during tensile force measurements or under poor lighting conditions.
Properties
| Adjusting program: | External |
|---|---|
| Battery/rechargeable battery: | 3.6 V, NiMH |
| Depth: | 55 mm |
| Dimensions (WxDxH): | 90 x 55 x 255 mm |
| Electrochemical system: | NiMH |
| Height: | 255 mm |
| Manufacturer Article Number: | HFC 1T-4 |
| Material housing: | Steel |
| Max. load: | 1000 kg |
| Max. voltage: | 240 V |
| Max. voltage battery/rechargeable battery: | 3.6 V |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0.5 kg |
| Reproducibility: | 0.5 kg |
| Type: | HFC 1T-4 |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| Warranty: | 3 years |
| Weight: | 1.8 kg |
| Width: | 90 mm |
