Cooling circulators
Product number:
9859230
Manufacturer:
Peter Huber Kältemaschinenbau
Packaging information:
Weight:
36 kg
Description

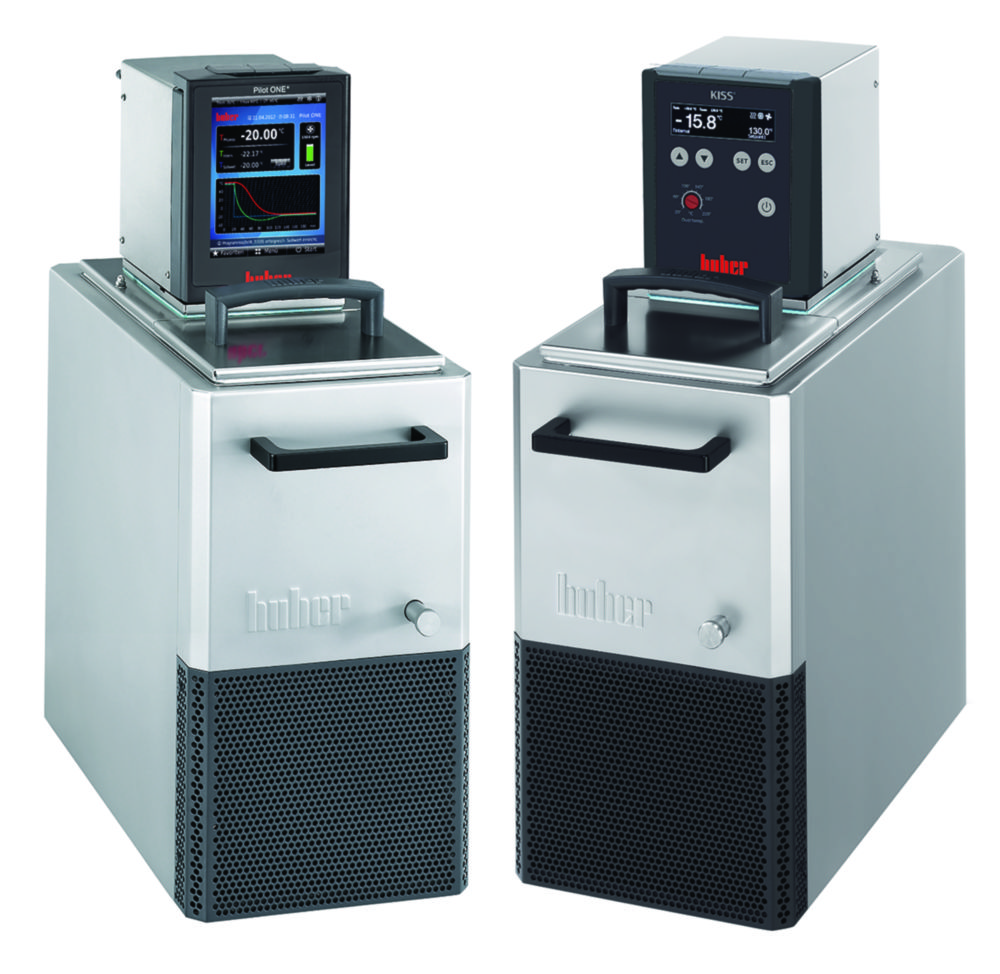

Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to +200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.
Properties
| Bath capacity L: | 25 |
|---|---|
| Bath opening mm: | 290 x 329 |
| Cooling capacity kW at 0/-10/-20°C: | 0.35/0.27/0.16 |
| Dimensions (W x D x H) mm: | 350 x 555 x 615 |
| Manufacturer Article Number: | 2012.0021.01 |
| Pump max. l/min / bar: | 27/0.7 |
| Type: | CC-K25 |
| Working Temp. range °C: | -30 ... 200 |
Skip product gallery
From
€3,900.00*
From
€1,520.00*
