pH meter PHT 830 Set 3
Product number:
6268943
Manufacturer:
Xylem Analytics Germany (EBRO)
Packaging information:
Length:
335 mm
Width:
270 mm
Height:
85 mm
Weight:
1.01 kg
Description
The pH/Redox/ISE portable meter is used to determine the pH, the redox potential and the temperature. It combines the advantages of mobile field work with the precision and the comfort of a laboratory meter.
The PHT 830 has an automatic temperature compensation for the pH measuring as well as an adjustable reference temperature with measurements without temperature sensor. For calibration a manual or automatic two point calibration routine can be used.
All electrodes are equipped with an integrated temperature sensor Pt 1000, allowing parallel measurement of pH value and temperature.

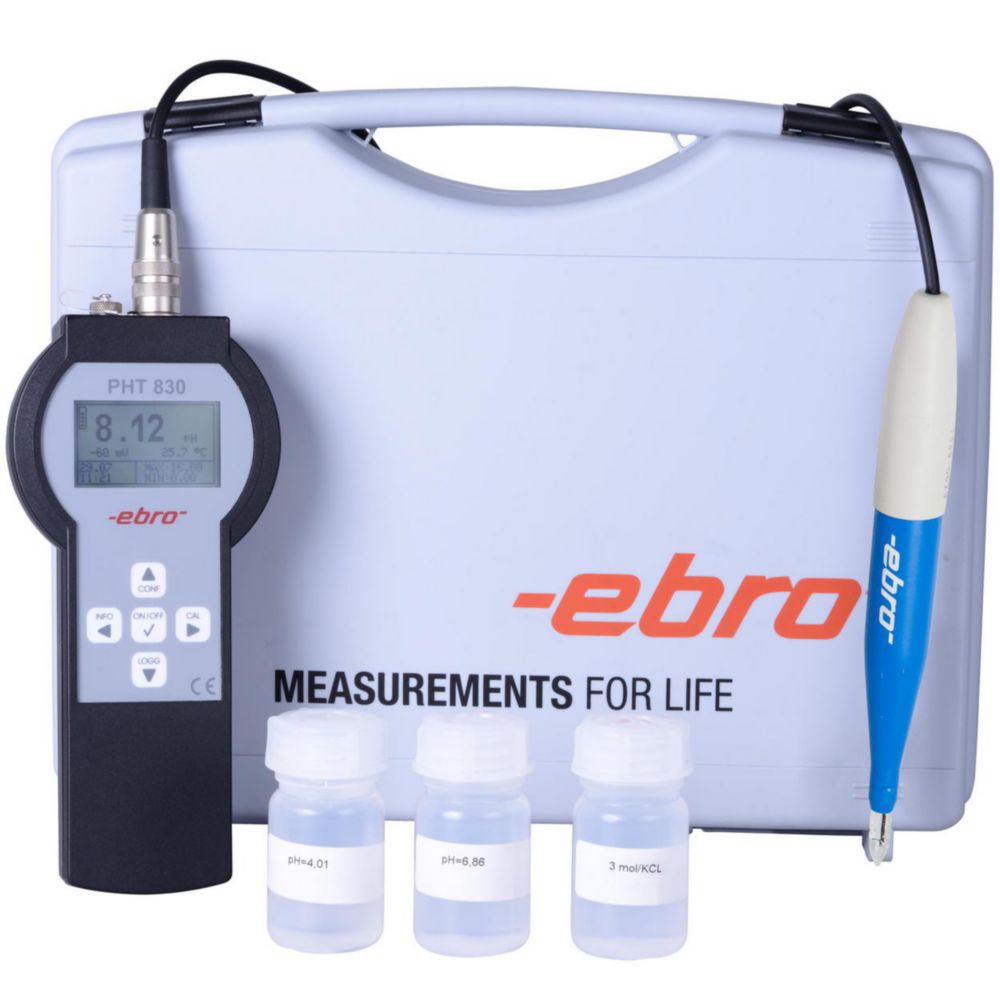

PHT 830 Set 3 incl. penetration electrode AT 830 pH E and 1.00 m cable, suited for applications in food industries.
Scope of supply: pH meter incl. electrode, 1 x buffer solutions pH 4.006 and pH 6.865 each, 1 x KCl solution, case
The PHT 830 has an automatic temperature compensation for the pH measuring as well as an adjustable reference temperature with measurements without temperature sensor. For calibration a manual or automatic two point calibration routine can be used.
All electrodes are equipped with an integrated temperature sensor Pt 1000, allowing parallel measurement of pH value and temperature.
Scope of supply: pH meter incl. electrode, 1 x buffer solutions pH 4.006 and pH 6.865 each, 1 x KCl solution, case
Properties
| Accuracy temperature: | ±0.1 °C |
|---|---|
| Accuracy temperature Number: | 0.1 °C |
| Battery/rechargeable battery: | 3 x AA |
| Depth: | 40 mm |
| Designation ANSI: | AA |
| Dimensions (WxDxH): | 200 x 40 x 95 mm |
| Height: | 95 mm |
| IP code: | IP 65 |
| Manufacturer Article Number: | 1340-5814 |
| Max. temperature: | 100 °C |
| Min. temperature: | -10 °C |
| No. of batteries/rechargeable batteries: | 3 |
| Temperature: | -10 ... 100 °C |
| Temperature compensation: | Automatically |
| Type: | PHT 830 Set 3 |
| Type of auxiliary energy: | Battery |
| UNSPSC: | 41115603 |
| Weight: | 290 g |
| Width: | 200 mm |
| mV range: | -1999 ... 1999 |
| pH range: | 0 ... 14 |
| pH range accuracy: | ±0.03 |
| pH range resolution: | 0.01 |
