pH-Electrodes ScienceLine
Product number:
7300377
Manufacturer:
Xylem Analytics Germany (SI)
Packaging information:
Length:
258 mm
Width:
58 mm
Height:
55 mm
Weight:
0.041 kg
Description

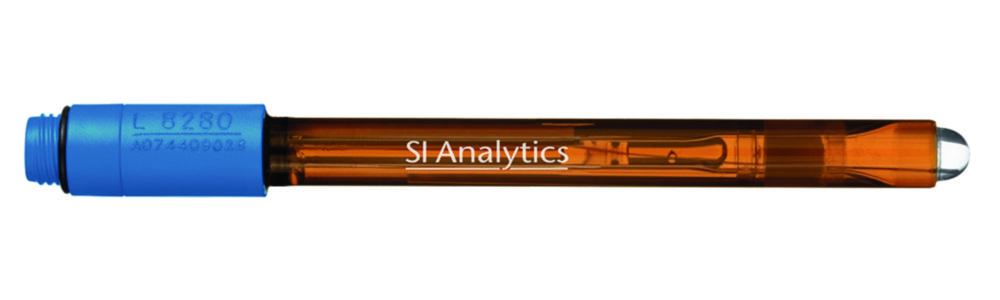

Glass shaft, electrolyte KCl 3 mol/l, Silamid® reference system (N 6480 Eth with electrolyte L 5034 and N 6480 eis with electrolyte L 5014).
Properties
| Connection plug: | Plug head |
|---|---|
| Diaphragm: | Split ring |
| Manufacturer Article Number: | 285101277 |
| Material shaft: | Glass |
| Max. pH value: | 14 |
| Max. temperature: | 50 °C |
| Min. pH value: | 0 |
| Min. temperature: | -5 °C |
| Shaft length: | 120 mm |
| Shaft Ø: | 12 mm |
| Temperature: | -5 ... 50 °C |
| Temperature sensor: | Without |
| Type: | L 8280 |
| UNSPSC: | 41-11-56-04 |
| pH range: | 0 ... 14 |
