Viscometers, glass, kinematic, Ubbelohde
Product number:
9268320
Manufacturer:
Xylem Analytics Germany (SI)
Packaging information:
Weight:
0.069 kg
Description
To ISO 3105, DIN 51562.
Not calibrated, without documentation of the viscometer constant.
For manual and automatic relative measurements.
Not calibrated, without documentation of the viscometer constant.
For manual and automatic relative measurements.
Properties
| Calibration: | No |
|---|---|
| Capacity: | 15 ... 20 ml |
| Constant: | 0.1 |
| Int. Ø: | 1.13 mm |
| Length: | 290 mm |
| Manufacturer Article Number: | 285400345 |
| Max. capacity: | 20 ml |
| Max. measured value: | 100 mm²/s |
| Measured range: | 10 ... 100 mm²/s |
| Min. capacity: | 15 ml |
| Min. measured value: | 10 mm²/s |
| No. of capillary: | II |
| Standard: | ISO 3105, DIN 51562 |
| Type: | 530 20 |
| Type of capillary viscometer: | Ubbelohde |
Skip product gallery
From
€182.00*
From
€565.00*
Accessories
Xylem Analytics Germany (SI)
Xylem Analytics Germany (SI)

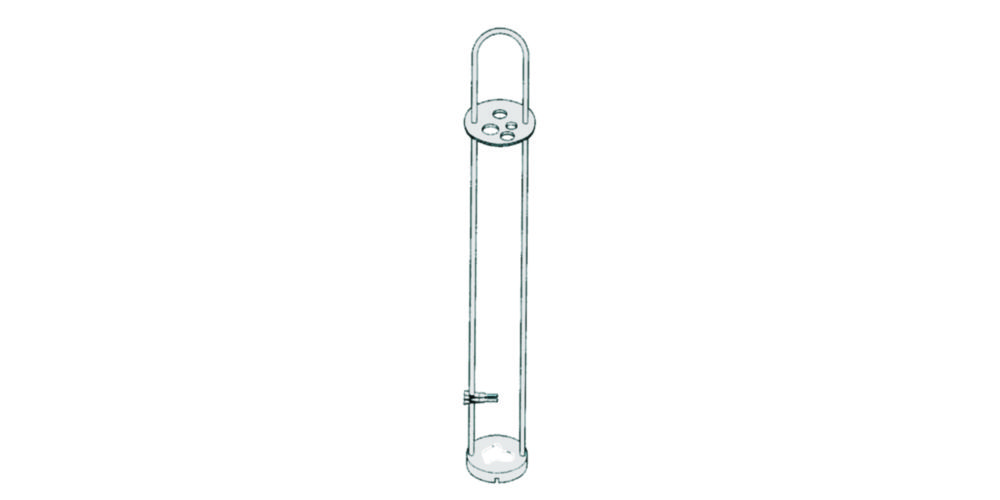

Viscometer holders
VA steel. Suitable for all Ubbelohde viscometers without TC sensors. For manual and automatic measurements. Holds the viscometer perpendicularly. Accuracy <1°. Protects the viscometer from damage.
Xylem Analytics Germany (SI)
Xylem Analytics Germany (SI)

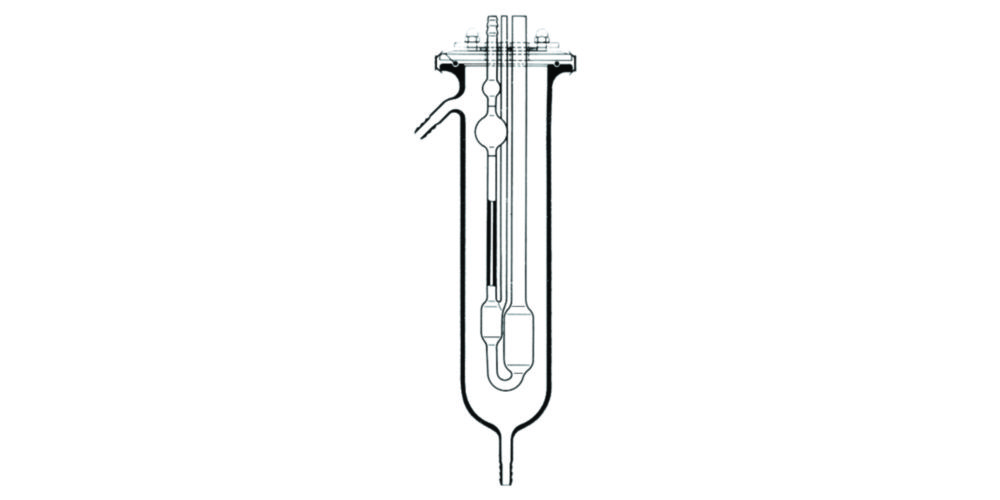

Viscometer heating jacket
