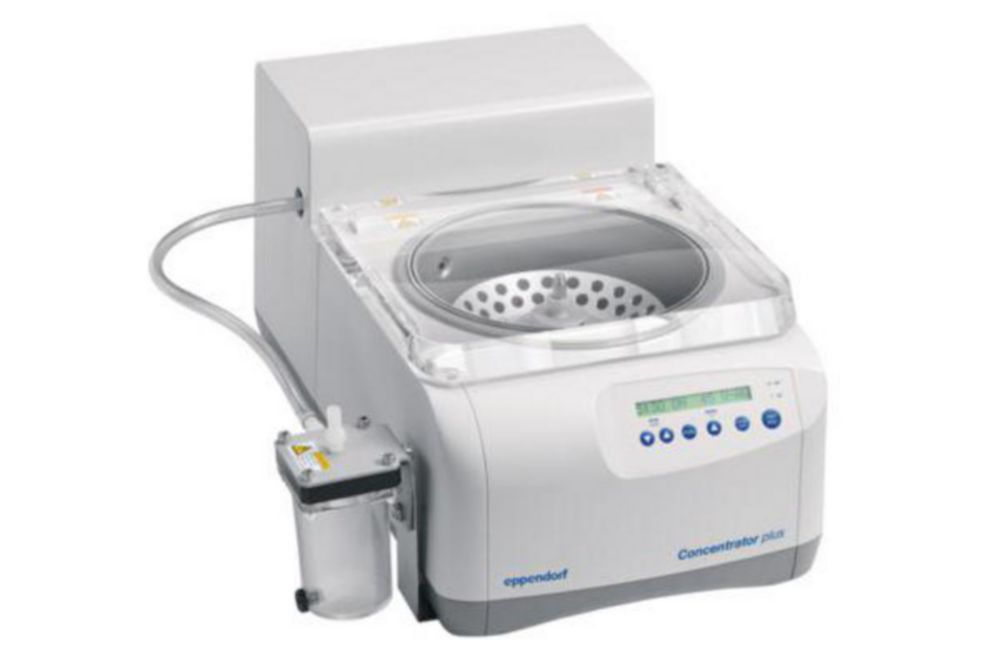

Vacuum concentrator, Concentrator plus™, with integrated membrane vacuum pump
Product number:
9776622
Manufacturer:
Eppendorf SE
Packaging information:
Weight:
36.4 kg
Description
An advanced heating technology provides quick, efficient and gentle vacuum concentration of samples (e.g. DNA/RNA, proteins, etc.).
Scope of supply: Vacuum concentrator, membrane vacuum pump
- User-friendly control panel
- Coated lid
- Chemical-resistant, maintenance-free PTFE diaphragm pump
- Chemical-resistant, stainless steel chamber
- With vapour condenser that purifies the exhaust air by up to 85 %, this serves as protection against unpleasant vapours
Scope of supply: Vacuum concentrator, membrane vacuum pump
Properties
| Depth: | 580 mm |
|---|---|
| Dimensions (WxDxH): | 330 x 580 x 290 mm |
| For vessels: | 0.2 ... 50 ml tubes, microplates, PCR plates |
| Height: | 290 mm |
| Manufacturer Article Number: | 5305000509 |
| Max. speed: | 1400 |
| Max. voltage: | 230 V |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 350 W |
| Speed: | 1,400 |
| Type of auxiliary energy: | Mains connection |
| Ultimate vacuum: | 20 mbar |
| Weight: | 31.5 kg |
| Width: | 330 mm |
