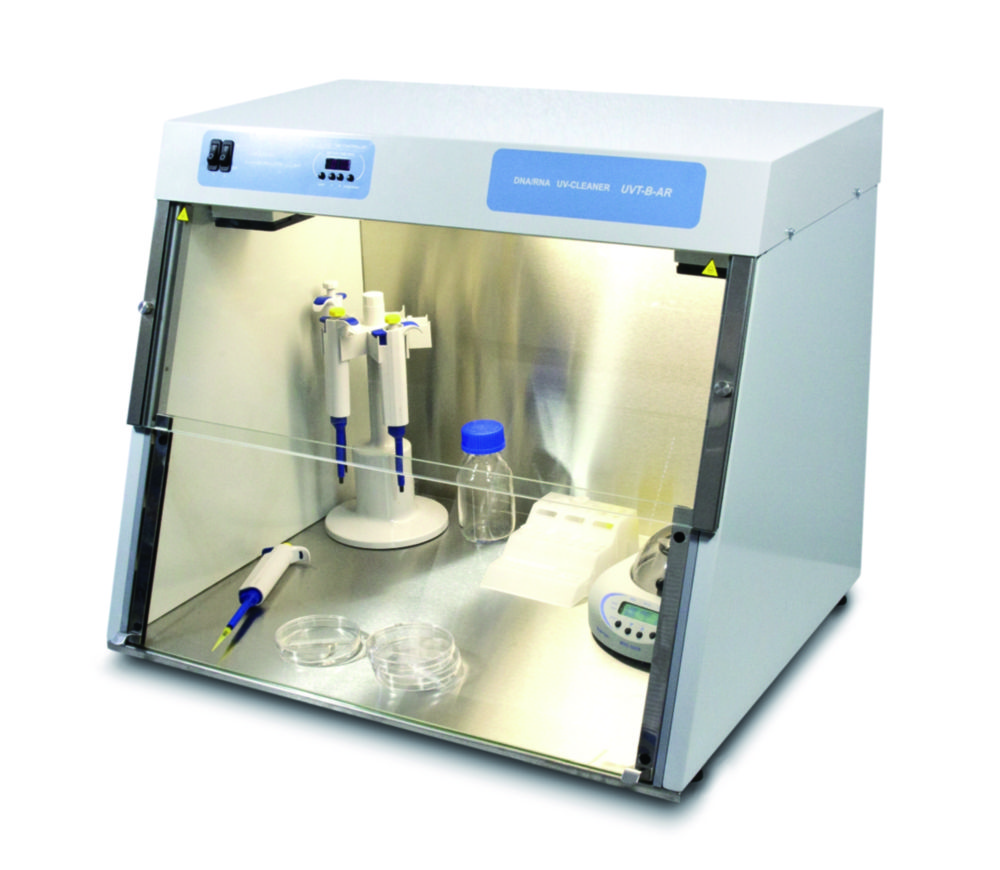

UV/PCR cabinets UVT-B-AR / UVT-S-AR / UVC/T-M-AR
Product number:
9721070
Manufacturer:
Grant Instruments Ltd.
Packaging information:
Weight:
31.67 kg
Description
Bench-top models for protection against contamination during a variety of DNA/RNA procedures.
- UV surface irradiation, via 1 x 25 W 254 nm open UV lamp or 2 x 30 W open UV lamp (UVT-S-AR)
- Patented high intensity UV air cleaner, 25 m3/hour cleaner-recirculator continuous air flow with 1cm UV irradiation distance
- UVlamp in the upper hood disinfects the working area, inactivating DNA/RNA fragments during 15-30 min of exposure
- UV exposure control, 24 hour digital timer
- Convenient, easy to use digital timer for accurate control of UV exposure
- White lamp provides local illumination of the workplace to optimise visual control during operations
- Shock proof glass panels, metal framework and stainless steel work surface
- Automatic switch-off of open UV light when door opened
- UVT-B-AR is available with 1 x access port or 1 x internal power socket, UVT-S-AR with 3 x internal power socket, UVC/T-M-AR with 1 x access port
Properties
| Amperage: | 0.3 A |
|---|---|
| Depth int.: | 475 mm |
| Ext. depth: | 585 mm |
| Ext. height: | 555 mm |
| Ext. width: | 690 mm |
| External dimensions (WxDxH): | 690 x 585 x 555 mm |
| Height int.: | 450 mm |
| Int. width: | 650 mm |
| Internal dimensions (WxDxH): | 650 x 475 x 450 mm |
| Manufacturer Article Number: | UVT-B-AR EURO |
| Max. air volume flow: | 7 m³/h |
| Max. voltage: | 230 V |
| Min. voltage: | 120 V |
| Plug type: | EU |
| Power supply: | 120 ... 230 V, 50/60 Hz , 0.3 A |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 67 W |
| Type: | UVT-B-AR |
| UNSPSC: | 41103517 |
| Weight: | 32 kg |
