UV/PCR cabinets UVT-B-AR / UVT-S-AR / UVC/T-M-AR
Product number:
6237057
Manufacturer:
Grant Instruments Ltd.
Packaging information:
Weight:
55 kg
Description
Bench-top models for protection against contamination during a variety of DNA/RNA procedures.
- UV surface irradiation, via 1 x 25 W 254 nm open UV lamp or 2 x 30 W open UV lamp (UVT-S-AR)
- Patented high intensity UV air cleaner, 25 m3/hour cleaner-recirculator continuous air flow with 1cm UV irradiation distance
- UVlamp in the upper hood disinfects the working area, inactivating DNA/RNA fragments during 15-30 min of exposure
- UV exposure control, 24 hour digital timer
- Convenient, easy to use digital timer for accurate control of UV exposure
- White lamp provides local illumination of the workplace to optimise visual control during operations
- Shock proof glass panels, metal framework and stainless steel work surface
- Automatic switch-off of open UV light when door opened
- UVT-B-AR is available with 1 x access port or 1 x internal power socket, UVT-S-AR with 3 x internal power socket, UVC/T-M-AR with 1 x access port
Properties
| Amperage: | 4.5 A |
|---|---|
| Depth int.: | 520 mm |
| Ext. depth: | 585 mm |
| Ext. height: | 555 mm |
| Ext. width: | 1245 mm |
| External dimensions (WxDxH): | 1,245 x 585 x 555 mm |
| Height int.: | 425 mm |
| Int. width: | 1200 mm |
| Internal dimensions (WxDxH): | 1,200 x 520 x 425 mm |
| Manufacturer Article Number: | UVT-S-AR EURO |
| Max. air volume flow: | 70 m³/h |
| Max. voltage: | 230 V |
| Min. voltage: | 120 V |
| Plug type: | EU |
| Power supply: | 120 ... 230 V, 50/60 Hz , 4.5 A |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 530 W |
| Type: | UVT-S-AR |
| UNSPSC: | 41-11-61-16 |
| Weight: | 58 kg |
Skip product gallery
From
€90.00*
Accessories
Grant Instruments Ltd.
Grant Instruments Ltd.
Accessories for UV/PCR cabinets UVT-B-AR / UVT-S-AR / UVC/T-M-AR
Skip product gallery
UV sterilisation cabinets without Tray
From
€2,461.90*
PCR Cabinets Type Streamline®/Airstream®
From
€4,208.00*
UV sterilisation cabinets with Safety SpillTray, CSR-TY4 Tray
From
€2,573.00*
Similar products

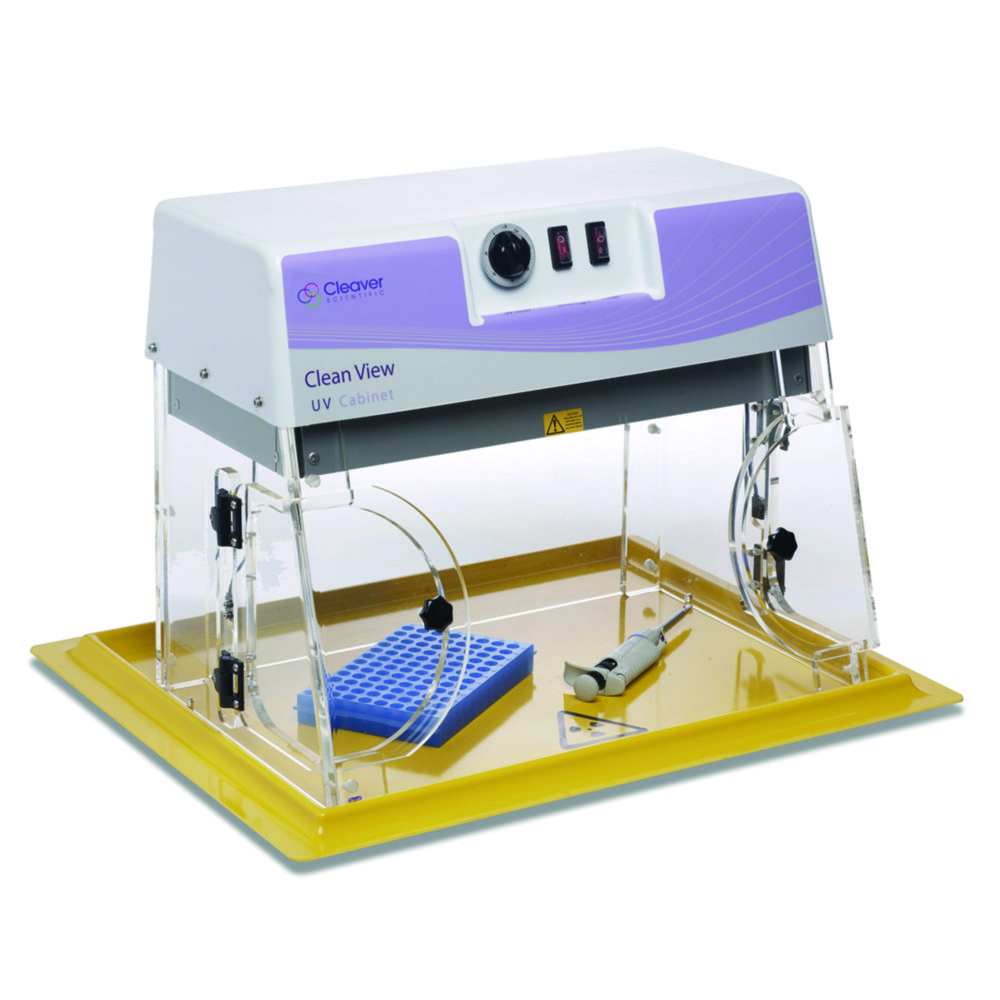

These UV sterilisation cabinets provide a convenient area for setting up PCR reactions in a nucleic acid free environment thus limiting PCR reaction contamination. Acting effectively as a low cost alternative to a Cleanroom, the powerful UV lights on the cabinets denature nucleic acids in 5 to 30 minutes making them unsuitable for amplification. The cabinet incorporates safety features to prevent user exposure to UV light. The UV lights themselves are timer controlled and there are safety switches on the cabinets doors which turn off the UV lights when opened. Constructed from 10 mm acrylic, the cabinets also act as efficient shields from beta radiation emissions and can therefore be safely used with isotopes such as 32P.UV Lights 4 x 15 WattWhite Light 15 Watt

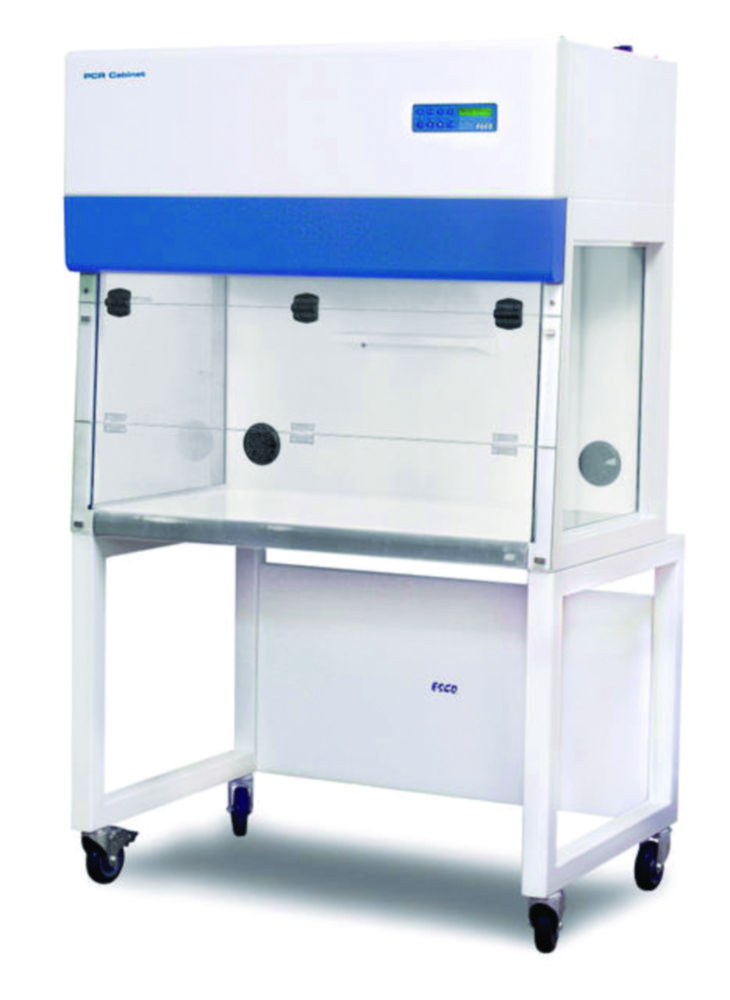

Active PCR Cabinet with built-in UV Decontamination and true vertical laminar airflow.Average Airflow Velocity (adjustable): 0.3 m/sHEPA filter with pre-filterThe air cleanliness within the work zone is better than ISO Class 5Sentinel-Microprocessor maintains steady blower speed (only 0.9 m and 1.2 m models)Hinged polycarbonate front windowTempered glass side panelISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination.Fluorescent lighting provides superior illumination of the work zoneBuild-in UV lamp with timerPass-through ports in the back wallOptions on request:Support stands

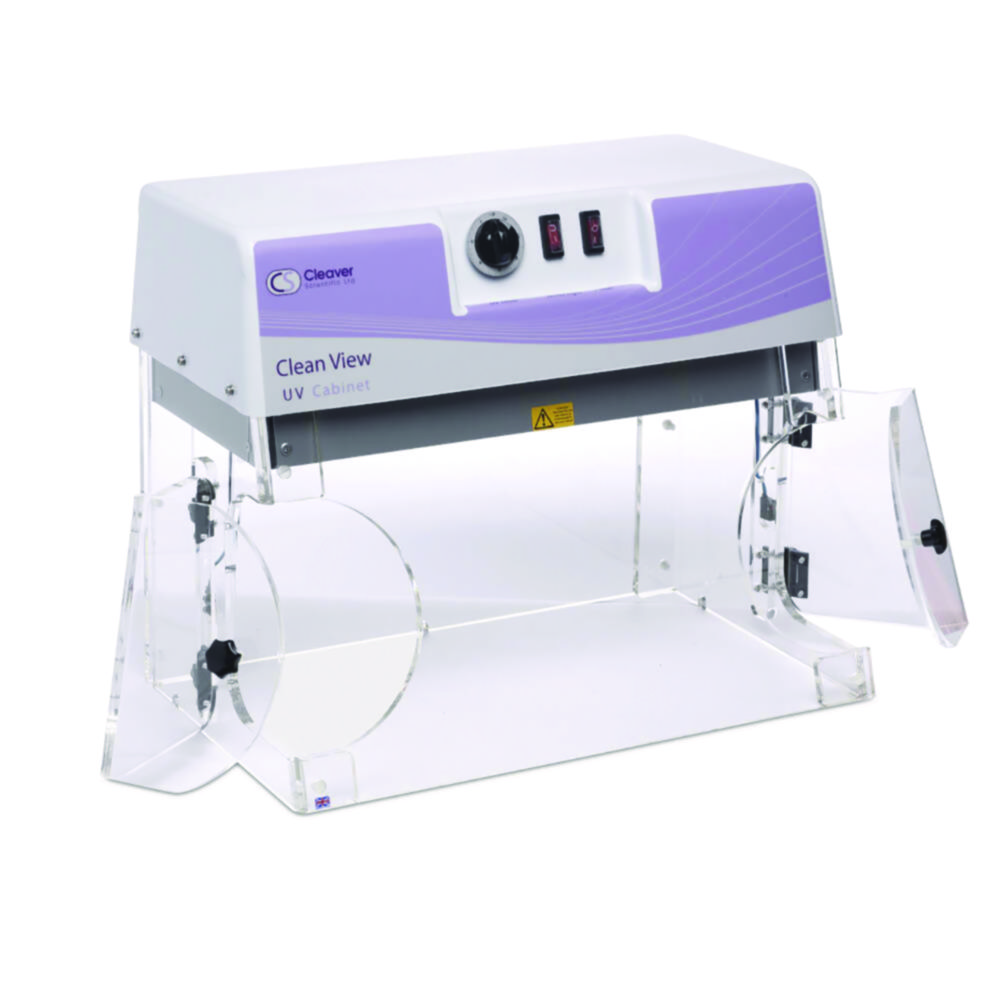

These UV sterilisation cabinets provide a convenient area for setting up PCR reactions in a nucleic acid free environment thus limiting PCR reaction contamination. Acting effectively as a low cost alternative to a Cleanroom, the powerful UV lights on the cabinets denature nucleic acids in 5 to 30 minutes making them unsuitable for amplification. The cabinet incorporates safety features to prevent user exposure to UV light. The UV lights themselves are timer controlled and there are safety switches on the cabinets doors which turn off the UV lights when opened. Constructed from 10 mm acrylic, the cabinets also act as efficient shields from beta radiation emissions and can therefore be safely used with isotopes such as 32P.UV Lights 4 x 15 WattWhite Light 15 Watt
