Tumbling shakers 3011
Price on request
Content:
1
Delivery according to order confirmation
Product number:
2635
Packaging information:
Weight:
1 kg
Description
Housing made of high impact strength polystyrene, finished in off-white. The base plate is made of electrolytically galvanized, powder-coated sheet steel, the shaking platform of anodised aluminium, equipped with four plastic pins. Clearly laid out control panels for easy operation and an a.c. motor with overload protection drives the unit. Stepless, electronic speed control, with soft-start and quiet operation. Constant speed maintained during continuous operation, independent of load. Suitable for use in laboratories, incubation and controlled environment rooms at ambient temperatures between + 10°C and + 50°C. The devices are maintenance-free.

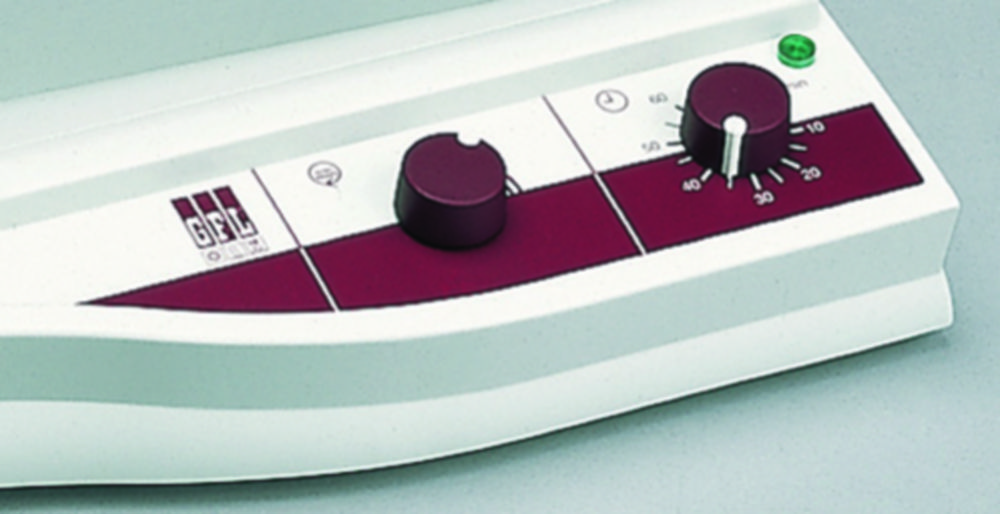

Analogue control model Type 3011 (Fig. 1):
Timer for operations up to 60min. and continuous operation.
Digital control model Type 3012 (Fig. 2):
Microprocessor controlled, with interface RS232. Timer: 1 min. up to 99:59 h or continuous operation. Speed and remaining time indicated by two LCD readouts.
For gentle and uniform orbital rocking motion, quiet. Applications in AIDS research, for diagnostic tests with test plates or for growing cell cultures and microorganisms.
(3012 with RS 232 interface)
* Please specify when placing your order
** Speed and remaining time indicated by 2 LC-displays
Analogue control model Type 3011 (Fig. 1):
Timer for operations up to 60min. and continuous operation.
Digital control model Type 3012 (Fig. 2):
Microprocessor controlled, with interface RS232. Timer: 1 min. up to 99:59 h or continuous operation. Speed and remaining time indicated by two LCD readouts.
(3012 with RS 232 interface)
| Specifications | |
| Type of movement: | tumbling |
| Tumbling angle: | 3° |
| Speed range: | 2 to 50rpm |
| Max. Load: | 15kg |
| Platform Dimensions (W x D): | 450 x 450mm |
| Overall Dimensions (W x D x H): | 510 x 625 x 168mm |
| Supply requirements: | |
| 3011: | 230V 50/60Hz, 90W |
| 3012: | 230V 50 or 60 Hz, 90W* |
| Net/gross weight: | 18kg / 22kg |
| Timer: | |
| 3011: | up to 60 min or continuous operation |
| 3012: | 1 min to 99:59 hours or continuous operation |
| Model 3012: | microprocessor controlled; RS232 interface |
* Please specify when placing your order
** Speed and remaining time indicated by 2 LC-displays
