Steam baths Hydro
Product number:
9695694
Manufacturer:
Lauda Dr.R.Wobser GmbH & Co.KG
Packaging information:
Weight:
8.213 kg
Description

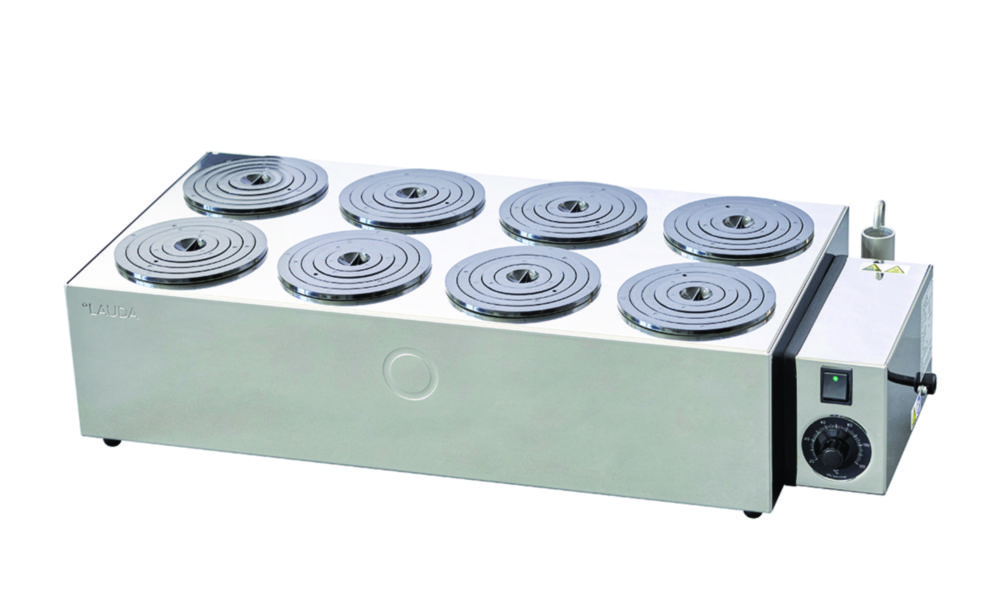

With their stable, low-wear mechanics, the Hydro steam baths ensure particularly quiet operation and reliable continuous operation. For gentle evaporation work from columns, Erlenmeyer flasks, beakers, with 1, 4, 6 or 8 openings. With their precise temperature distribution, they are designed for the needs of biological, medical or biochemical laboratories.
- With »GFL Technology« for the highest quality, reliability and durability
- Water level regulator as standard
- Removable perforated lid made of heat-resistant plastic
- H 11 V and H 19 V completely made of stainless steel, suitable for the evaporation of aggressive media
Properties
| Capacity: | 18.4 l |
|---|---|
| Display: | Analogue |
| Ext. depth: | 300 mm |
| Ext. height: | 155 mm |
| Ext. width: | 690 mm |
| External dimensions (WxDxH): | 690 x 300 x 155 mm |
| Heating capacity: | 1.5 kW |
| IP code: | IP 20 |
| Manufacturer Article Number: | L003070 |
| Max. capacity: | 18.4 l |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +5 °C |
| No. of openings: | 8 |
| Opening Ø: | 111 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.5 kW |
| Temperature: | RT+5 ... 100 °C |
| Temperature addition: | RT |
| Temperature stability: | ±3 K |
| Type: | H 19 V |
| Type of auxiliary energy: | Mains connection |
| Type of display: | Without display |
| Type of lid (Water baths etc.): | Cover with openings |
| UNSPSC: | 41103706 |
| Weight: | 8.1 kg |
| With circulation: | No |
| With stopcock: | No |
