Spring balances 283
Product number:
6223475
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description

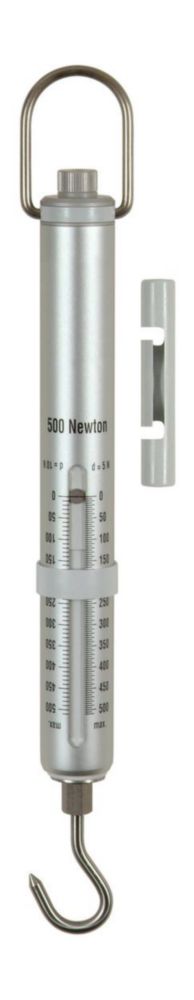

Precise, mechanical force gauge in robust aluminium housing with Newton readout.
- Aluminium scale tube
- Measuring result display in Newton
- Double scale: For fast or precise recording of the measurement result
- With drag pointer and carrying handle
- Backlash-free spring bearing with integrated tare screw for highly-precise adjustment
- Non-fatigue stainless steel spring
- Clip loop which can be freely rotated of the lower suspension bracket by 360°
- Wear-resistant, colour-anodised precision scale with high resolution for accurate readability of the measuring result
Properties
| Length: | 370 ... 510 mm |
|---|---|
| Manufacturer Article Number: | 283-902 |
| Material housing: | Aluminium |
| Max. length: | 510 mm |
| Max. measured value: | 500 N |
| Measured range: | 500 N |
| Min. length: | 370 mm |
| Readability: | 5 N |
| UNSPSC: | 41-12-24-06 |
| Warranty: | 2 years |
| Weight: | 500 g |
| Ø: | 32 mm |
