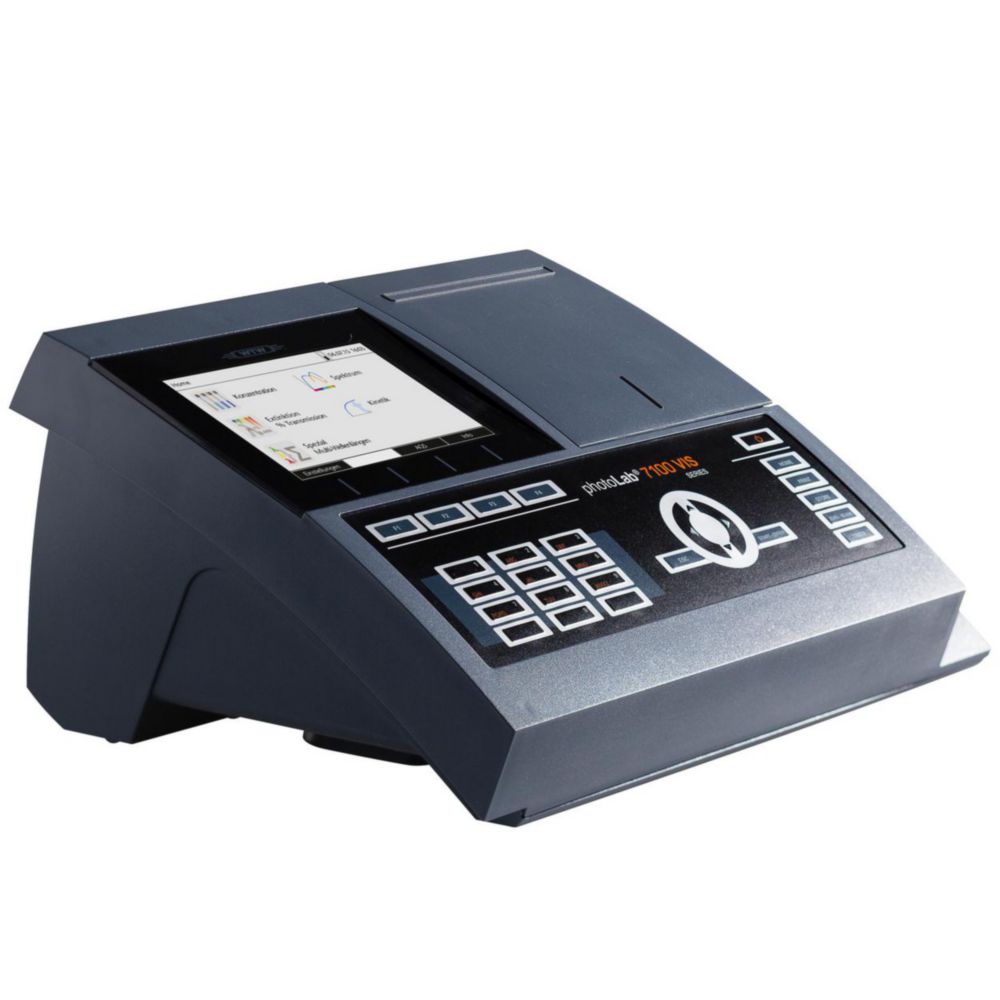

Spectrophotometer photoLab® 7100 VIS and photoLab® 7600 UV-VIS with OptRF
Product number:
6268619
Manufacturer:
Xylem Analytics Germany (WTW)
Packaging information:
Weight:
5.8 kg
Description
COD measurement without reagents.
The spectrophotometer of the photoLab® 7000 Series are universally usable and offer complete photometric
functionality with lauded user-interface and guidance on a brilliant HD 7"" color display. Pioneering is the optical reagent-free measurement (OptRF) of COD, Nitrate and Nitrite. No time-consuming digestion and no harmful chemicals required.
Data Management:
The spectrophotometer of the photoLab® 7000 Series are universally usable and offer complete photometric
functionality with lauded user-interface and guidance on a brilliant HD 7"" color display. Pioneering is the optical reagent-free measurement (OptRF) of COD, Nitrate and Nitrite. No time-consuming digestion and no harmful chemicals required.
- Proven routine analysis for waste and drinking water, aquaculture, food & beverage, environmental monitoring and production
- Cost saving reagent-free OptRF measurement
- Universal for industrial, research and educational use
- Lab quality in the field: 4,5 kg light weight, with car battery and field case option
- Linking lab with Online-system WTW® IQ SENSORNET via IQ LabLink
- For 16 mm round cuvettes and 10, 20 and 50 mm rectangular cuvettes with automatic recognition
- Memory for 5000 values, spectra and kinetics approx. 40 MB, equivalent to approx. 500 spectra (300-900 nm) and 400 kinetics with 150 measured values
- More than 200 programmed methods, 1000 user defined methods, 20 profiles each for kinetics and absorption spectrum, extensive programming options
- More than 250 programs for commercial test kits, standard parameters, direct readings of coloration, SAK, etc. as well as user-defined programming of routines
- Barcode recognition for tests in vials and rectangular cells and automatic cell recognition for 16, 10, 20 and 50 mm without adapter and automatic measurement range selection
- Up to three parallel timers
- Optional PC-Software Package for Brewery and color measurement from CIE to Yellowness
- Spectral scans in various nm-steps, 700-2000 nm/min
- Kinetics and multi-wavelength readings including special methods like chlorophyll and ADMI color measurement
- Extensive programming tools for multistep and multi-wavelength functions with user guidance
Data Management:
- Measurement data, PDF documents, spectra and kinetics data, with data filter for pre-selected data management
- External barcode reading option for uncoded test kits and sample ID
- Optional: PC-Software for GLP compliant data management
Properties
| Accuracy: | ±1 nm |
|---|---|
| Accuracy: | 1 nm |
| Depth: | 314 mm |
| Dimensions (WxDxH): | 404 x 314 x 197 mm |
| Height: | 197 mm |
| IP code: | IP 30 |
| Illuminants: | Tungsten-halogen |
| Interfaces: | USB-A, USB-B, Ethernet |
| Manufacturer Article Number: | 250203 |
| Max. voltage: | 240 V |
| Measuring method: | VIS |
| Min. voltage: | 100 V |
| Optical system: | Split Beam |
| Photometric accuracy: | ±0.003 E for E |
| Photometric measuring range: | -3.300 ... 3.300 E |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Scattered light: | < 0.1 %T (340/408 nm) |
| Spectral bandwidth: | 4 nm |
| Type: | photoLab® 7100 VIS |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41115406 |
| Wavelength: | 320 ... 1100 nm |
| Weight: | 4.5 kg |
| Width: | 404 mm |
