Rotational viscometers CBC ROTAVISC me-vi Package
Product number:
4700002
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description

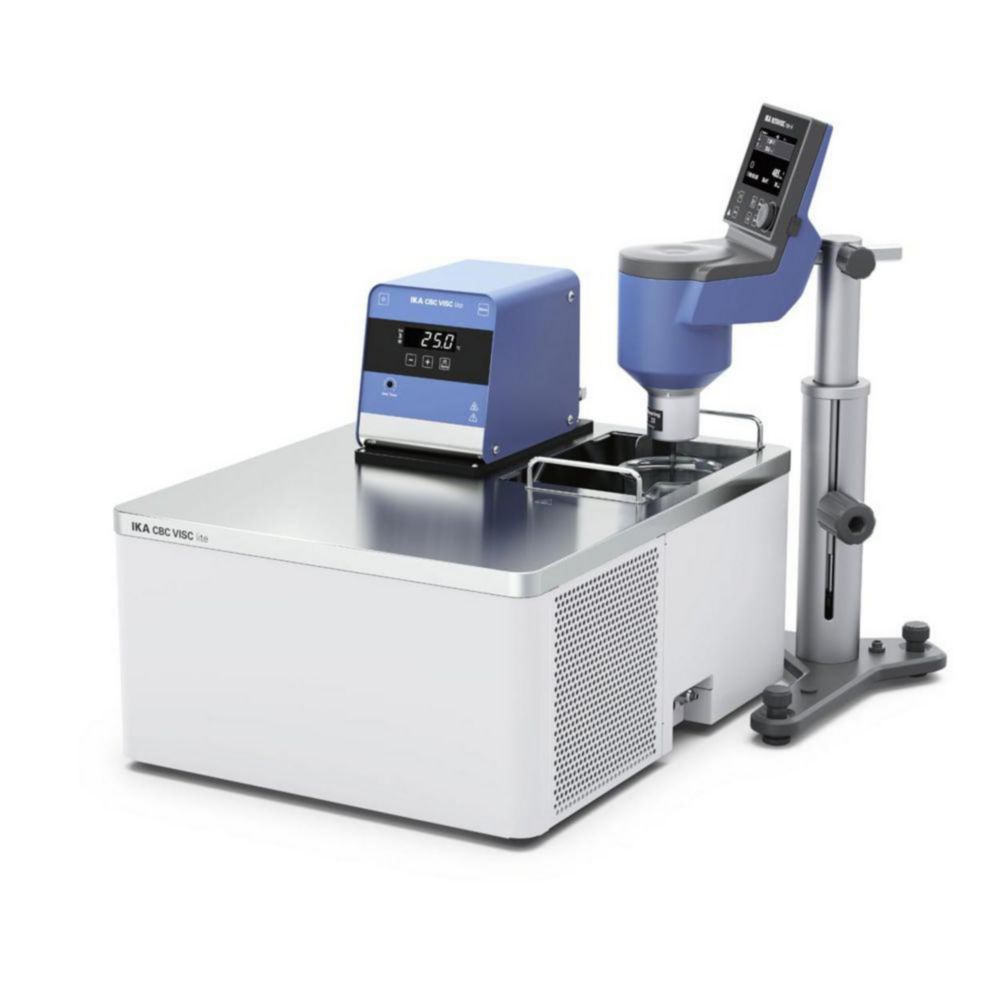

By combining the rotational viscometer with the CBC VISC lite heating bath and circulation thermostat, the samples can be measured directly in the heating bath, ensuring accurate temperature control and precise and reliable measurement results. A second beaker (600 ml) can be pre-tempered during the measurement.
Stepless speed adjustment
4.3" TFT display
Simple ramp function
Environmentally friendly natural refrigerant R290
Scope of supply: Viscometer, stand ROTASTAND, bath circulator CBC visc lite, spindles SP set-2, temperature sensor PT 100.8
Stepless speed adjustment
4.3" TFT display
Simple ramp function
Environmentally friendly natural refrigerant R290
Properties
| Interfaces: | RS 232, USB |
|---|---|
| Manufacturer Article Number: | 0010014058 |
| Max. Viscosity: | 40000000 mPa·s |
| Max. speed: | 200 1/min |
| Max. temperature: | 125 °C |
| Max. torque: | 0.7187 mNm |
| Min. speed: | 0.01 1/min |
| Min. temperature: | -25 °C |
| Min. viscosity: | 100 mPa·s |
| Plug type: | EU |
| Speed: | 0.01 ... 200 1/min |
| Temperature: | -25 ... 125 °C |
| Torque: | 0.7187 mNm |
| Type: | CBC ROTAVISC me-vi |
| Type of auxiliary energy: | Mains connection |
| Viscosity: | 100 ... 40,000,000 mPa·s |
