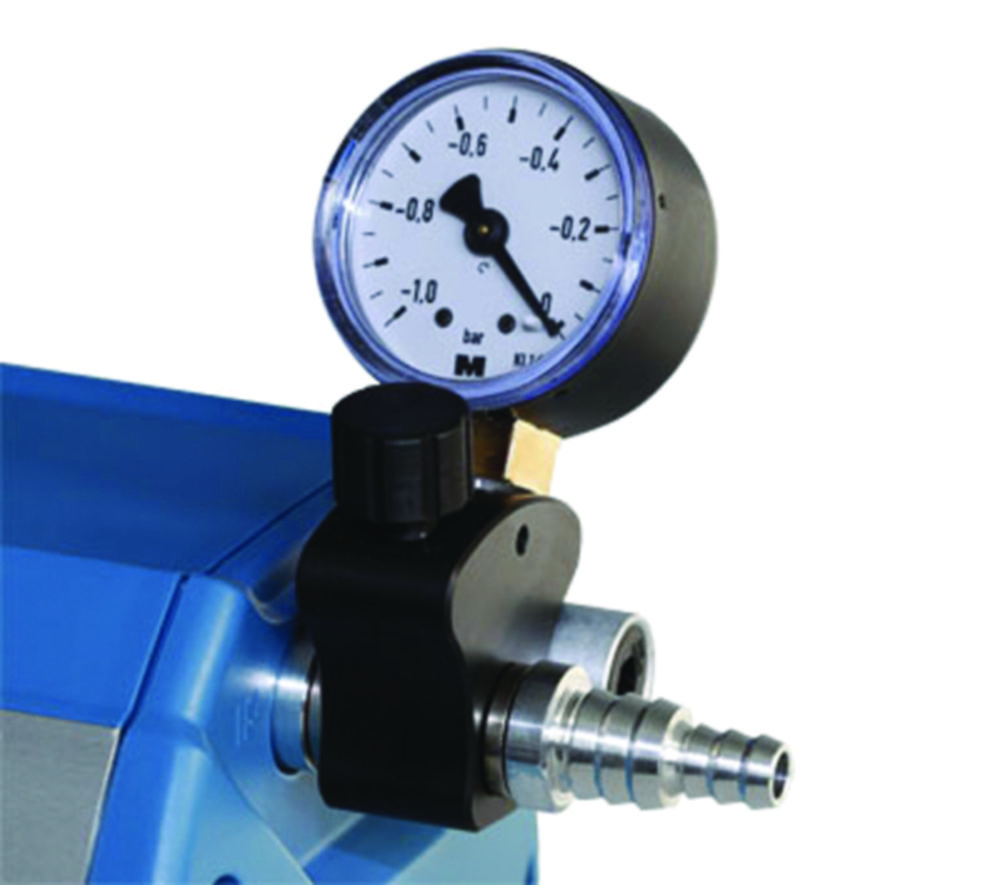

Regulator valves for membrane pumps
Product number:
9880938
Manufacturer:
Vacuubrand GmbH & Co.KG
Packaging information:
Length:
83 mm
Width:
83 mm
Height:
55 mm
Weight:
0.107 kg
Description
Properties
| Description: | vacuum |
|---|---|
| For: | ME 1 |
| Manufacturer Article Number: | 20696842 |
| UNSPSC: | 40151502 |
