Redox (ORP) electrodes TopLine
Product number:
6272198
Manufacturer:
Xylem Analytics Germany (SI)
Packaging information:
Weight:
0.1 kg
Description

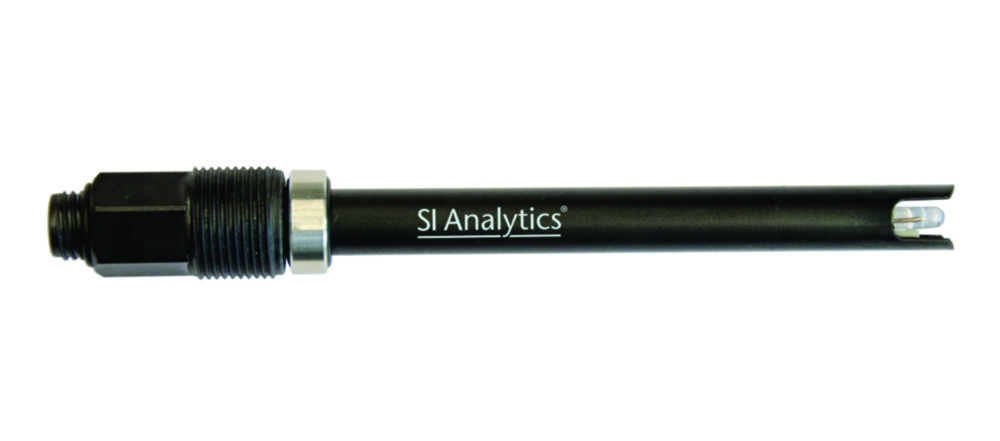

ORP combination electrode with PEEK shaft and labyrinth reference element (LoopRef).
Properties
| Connection plug: | Coax plug head |
|---|---|
| Diaphragm: | Fibre |
| Electrolyte: | DuraLid |
| Manufacturer Article Number: | 285111210 |
| Material sensor: | Platinum |
| Material shaft: | PEEK |
| Max. temperature: | 110 °C |
| Min. temperature: | 0 °C |
| Shaft length: | 120 mm |
| Shaft Ø: | 12 mm |
| Shape sensor: | Pin |
| Temperature: | 0 ... 110 °C |
| Temperature sensor: | Without |
| Type: | TopLine 89-120 Pt |
