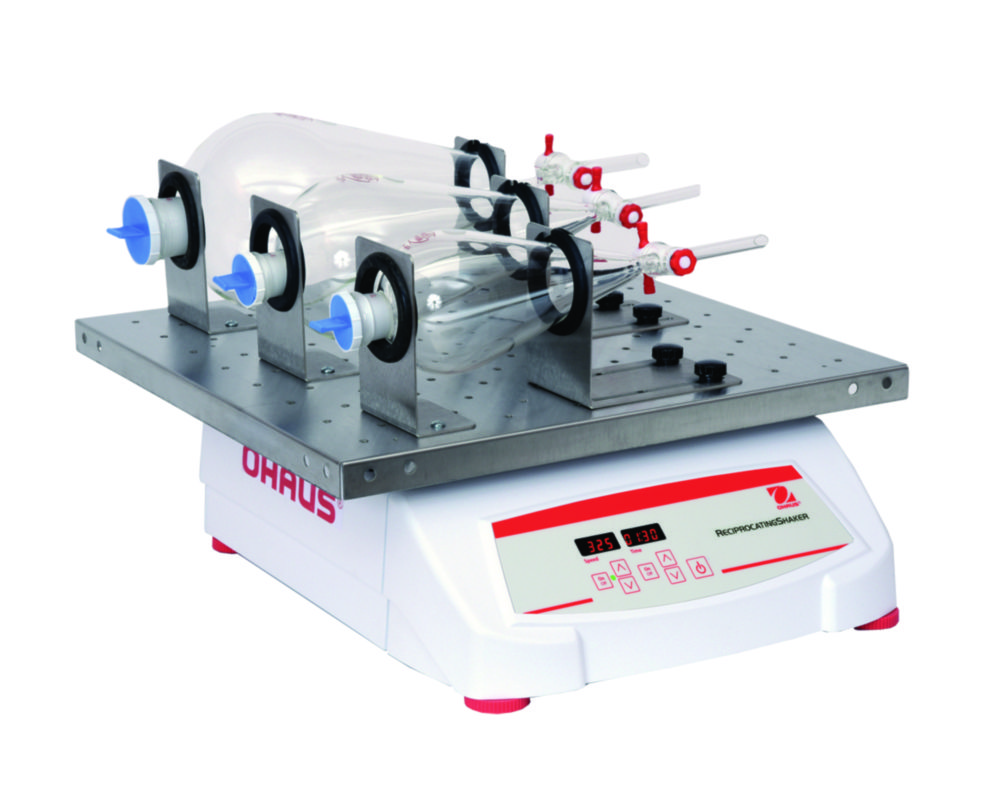

Reciprocating shaker
Product number:
4659460
Manufacturer:
Ohaus GmbH
Packaging information:
Description
The Digital Reciprocating Shaker is designed for a wide range of applications, including cell cultures, that require accurate and repeatable results. The microprocessor control provides consistent uniform shaking while safely ramping to the set speed. The shaking system in both models continuously monitors shaking speed and maintains set-point, even under changing loads.
Scope of supply: Shaker incl. built-in tray and non-slip rubber mat
- Exceptional speed control, accuracy and durability
- LED displays for speed and time
- Calibration mode for speed
- Microprocessor Control
- RS232 Interface
- Speed Calibration Mode
- Load Sensor
- Overload Protection
- Speed Ramping Feature
- Audible Alarm
- Spill-Resistant Design
- Timer from 1 sec to 160 h
Scope of supply: Shaker incl. built-in tray and non-slip rubber mat
Properties
| Depth: | 355 mm |
|---|---|
| Depth moving table: | 279 mm |
| Dimensions (WxDxH): | 413 x 355 x 146 mm |
| Display: | Digital |
| Height: | 146 mm |
| Manufacturer Article Number: | 30391830 |
| Max. loading capacity: | 6.8 kg |
| Max. permitted ambient temperature: | 60 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 300 1/min |
| Max. voltage: | 230 V |
| Min. permitted ambient temperature: | -10 °C |
| Min. speed: | 20 1/min |
| Moving table (WxD): | 330 x 279 mm |
| Permitted ambient temperature: | -10 ... 60 °C |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Shaking stroke: | 19 mm |
| Speed: | 20 ... 300 1/min |
| Type of movement: | Reciprocal |
| Weight: | 22.2 kg |
| Width: | 413 mm |
| Width moving table: | 330 mm |
| With timer: | Yes |
Skip product gallery
From
€63.60*
From
€224.00*
From
€384.00*
From
€650.00*
Accessories
Ohaus GmbH
Ohaus GmbH

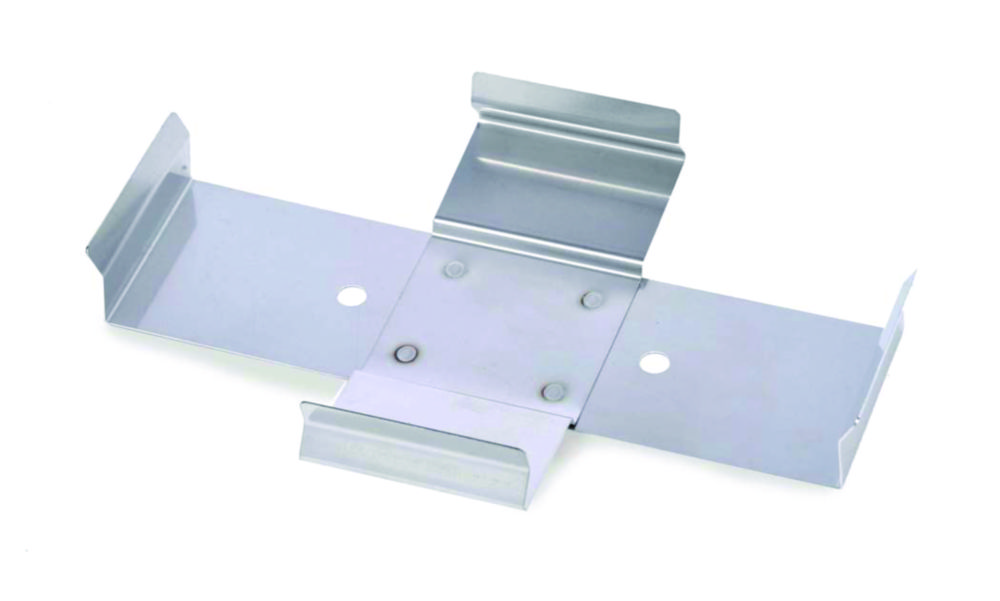

Microplate Clamp, stainless steel 304
Can hold one standard microplate or deep-well plate on a universal platform.Platform (B x L):No. of clamps:280 x 330 mm4330 x 330 mm6460 x 460 mm12460 x 610 mm18460 x 760 mm21610 x 610 mm24610 x 910 mm36
Ohaus GmbH
Ohaus GmbH

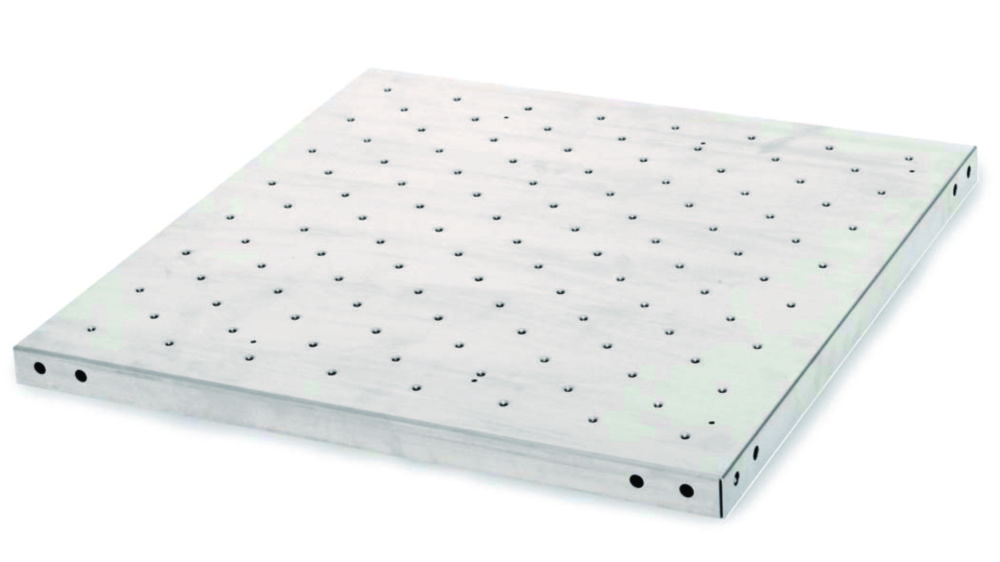

Universal platforms, stainless steel 304
Allows for mounting of flask clamps, test tube racks, and bottle clamps. Platform slides over top of included tray and is tightened with adjustment screws. Optional accessories screw directly into mounting point openings. An optional non-slip rubber mat can be placed on the platform for an added non-slip surface.
Ohaus GmbH
Ohaus GmbH

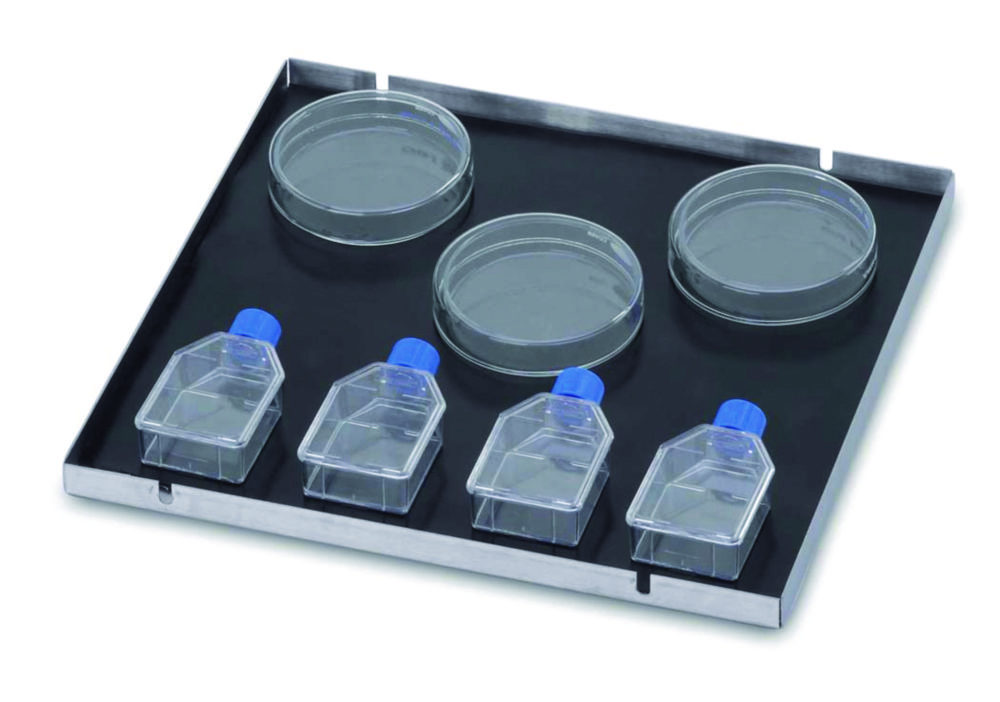

Culture platforms, stainless steel 304
Ideal for slow speed applications like petri dishes, culture flasks, and other flat bottom, low profile vessels. The platform has a non-slip rubber surface.
Ohaus GmbH
Ohaus GmbH
Separatory Funnel platform, stainless steel

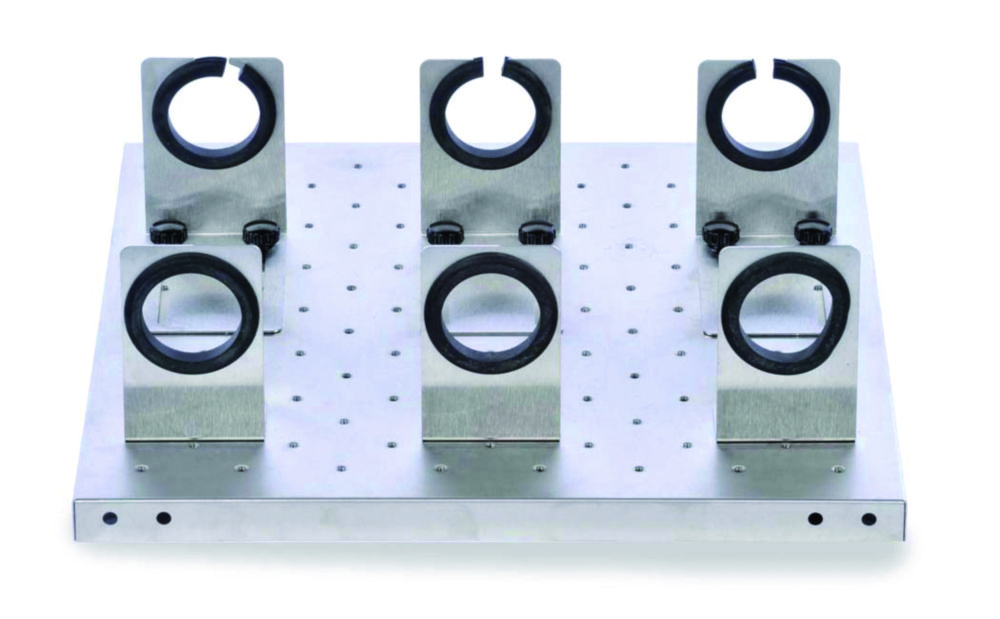

Holds 3 funnels at once on a 460 x 460 mm platform. Platform can accommodate 500 ml to 2 l separatory funnels. Includes platform, clamps and hardware to secure 3 funnels.
Skip product gallery
Reciprocating shakers RS-LS series
From
€895.00*
Accessories for shakers HS/KS 260
From
€158.00*
Combi shaker KL 2
From
€1,865.00*

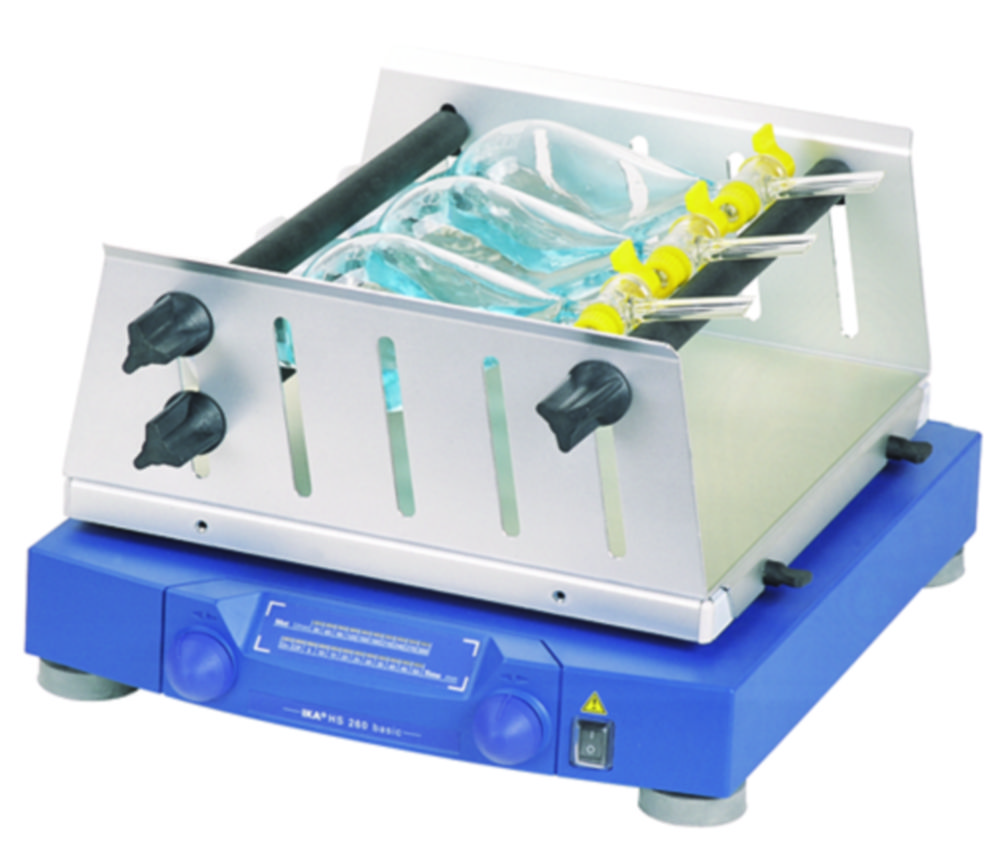

Reciprocating shaker HS 260 basic
From
€3,051.00*
Accessories for universal shaker SM 30
From
€71.80*
Reciprocating shaker HS 501 digital
From
€5,658.00*
Reciprocating shaker Varioshake VS 8 B
From
€1,520.00*
Reciprocating shaker Promax 1020
From
€1,943.00*
Flask shaker WA-200
From
€2,465.60*
Multi-Flask Shaker VKS 75 B control
From
€7,666.00*
Similar products

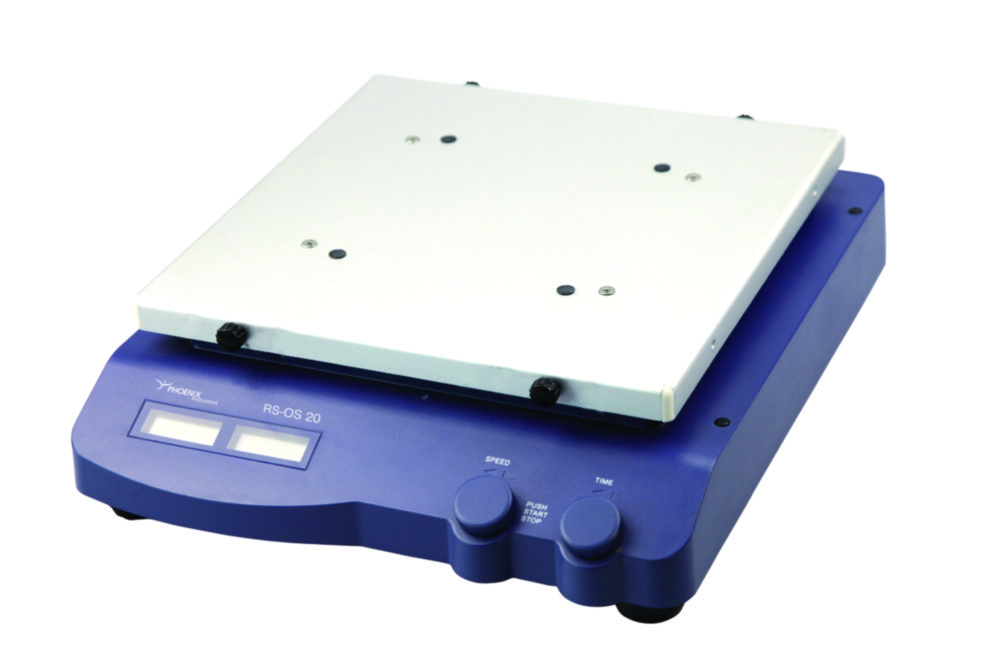

A compact shaker with ideal swivel motion. The shakers can be set up individually by using the comprehensive range of accessories.Features at a glance RS-LS10/20:compact shaker for a maximum shaking weight of 2.5 and 7.5 kgBacklight LCD display for speed and timer adjustment.Speed, time and operating mode can be viewed simultaneouslyComprehensive accessoriesElectronic time switching clock: control time or continuous operation modePC control via RS232 interface, the special Shaker PC software can realise the setting of instrument parameters on the PC and the display of working curves real-time.2 years warrantyPlease order attachments and further accessories separately.

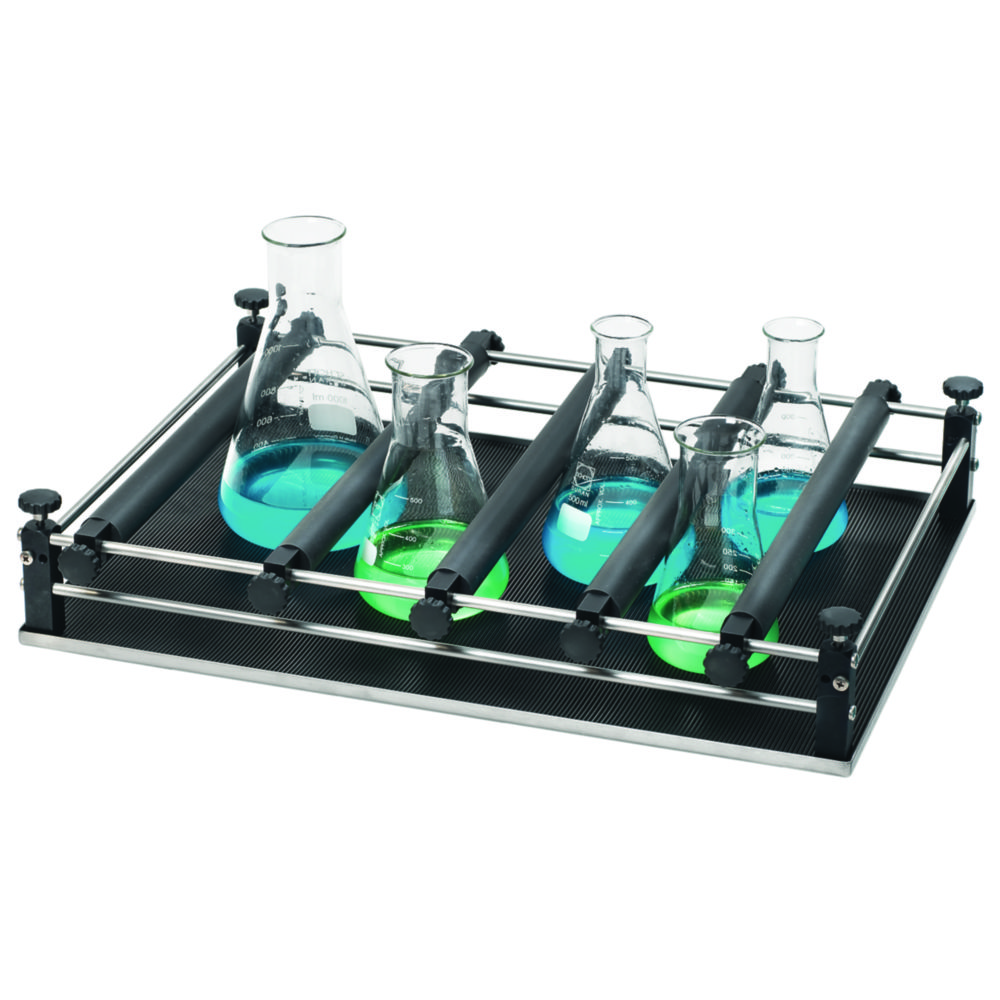

AS 260.1 Universal attachmentAble to hold most types of container using adjustable tension rollers. Surface: 320 x 320 mmAS 260.3 Petri dish attachmentFor gentle mixing and suspension of cell cultures or growth media in petri dishes, culture bottles and containers. With integral anti-slide mat (PP).

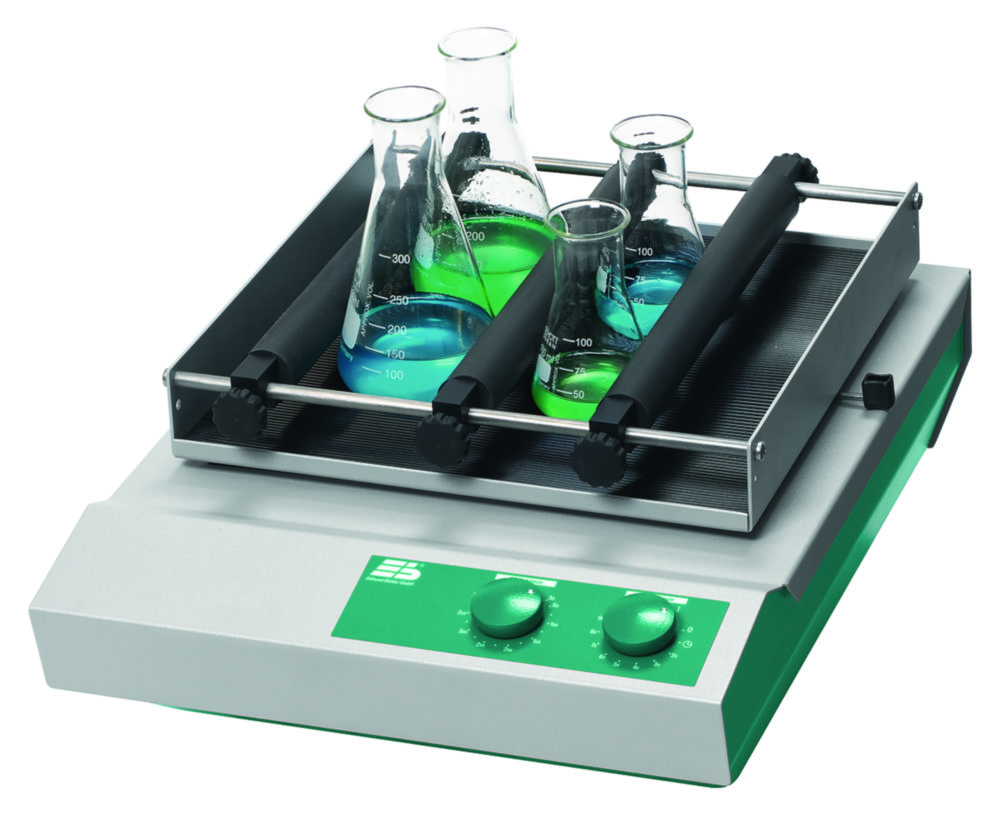

Mini shaker which can be switched between orbital and reciprocating motions. Includes flask attachment system with 3 clamping rollers. Versatile, for use in medical diagnostics, haemotology, for cell cultivation or analysis. Max. load 4 x 500 ml or 2 x 1000 ml Erlenmeyer flasks. Timer 0 to 120 min/continuous.Scope of supply: Shaker and accessory platform with 3 clamping rollers and anti-slip mat

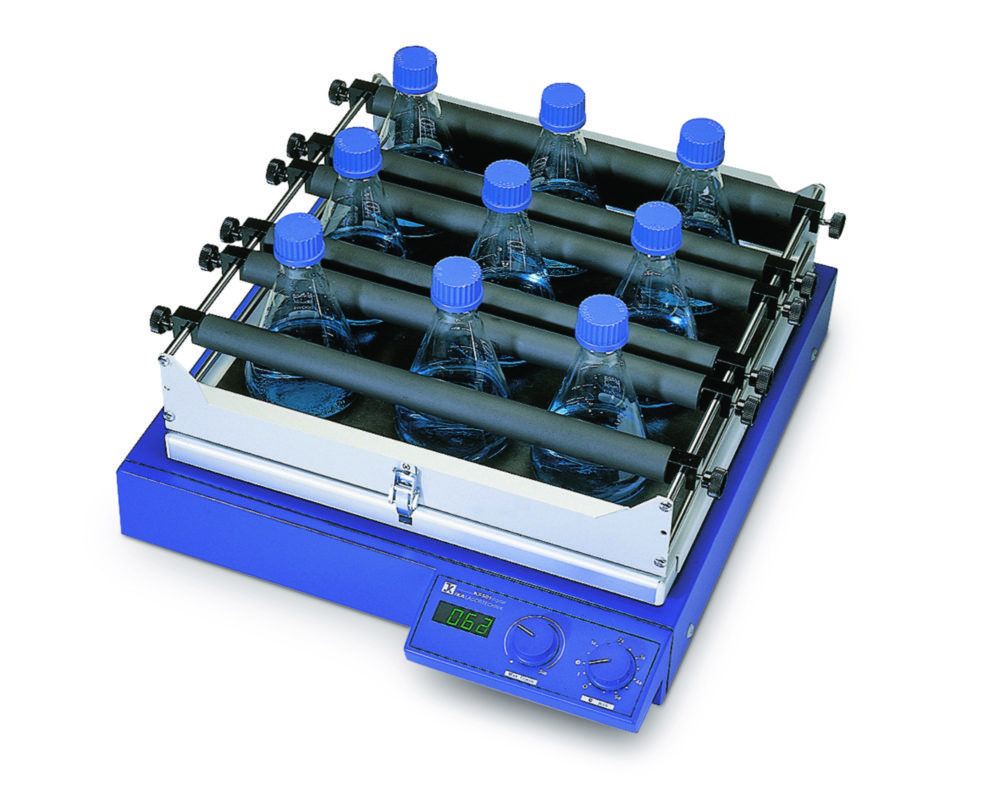

Compact, low-level, platform shaker with highly effective, reciprocating motion, maximum capacity 7.5 kg. Large selection of attachments enable use with a wide variety of vessel shapes and sizes. Electronic speed control and timer adjustment.Attachments are not included - Please order separately.Timer: 5 to 50 min or continuous operation

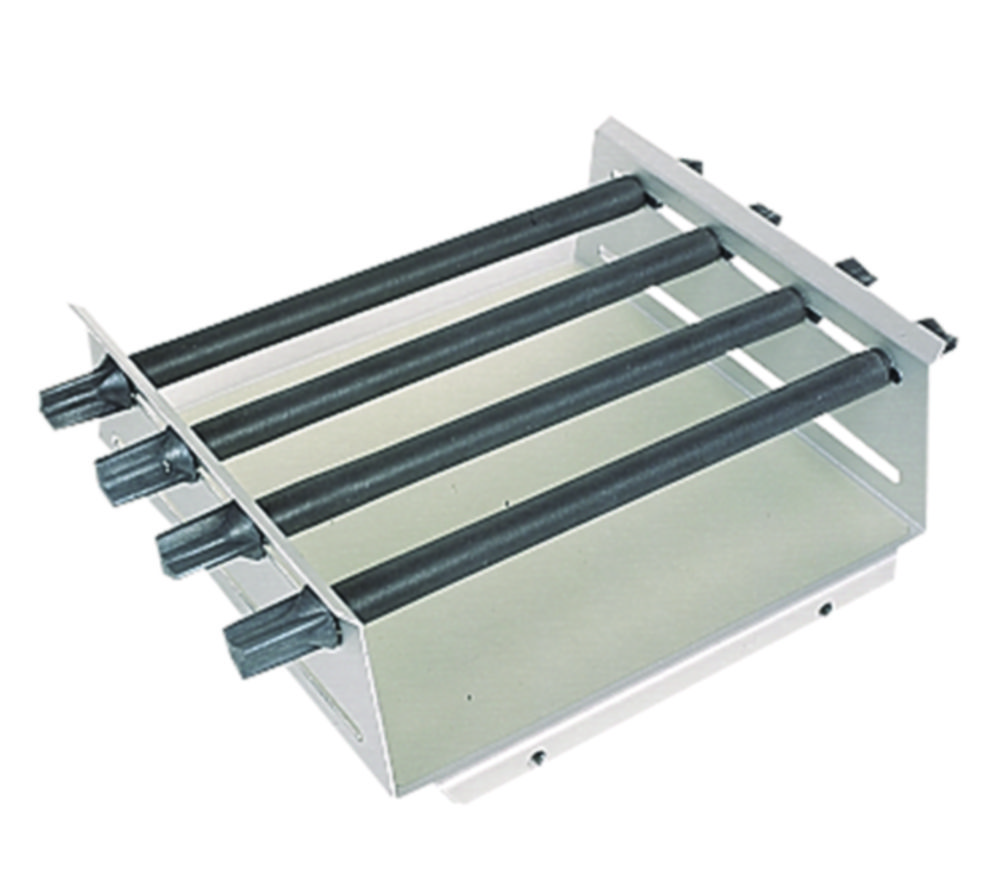

Combifix SM A attachment: Flexible attachment with 5 clamping bars for various containers with flat bases.Combifix SM B attachment: With 4 clamping bars for holding horizontal or tall containers securely.Combifix SM C attachment: For separating funnels.Universal tray SM: For flexible fitting with accessory spring clips or test tube stands.Sliding Plates: Sliding plates with Combifix SM (rack systems Combifix SM, but with additional base plate).Mounting set: for universal trays, or sliding plates on the 2-storey top frame SM.SM attachment, 2-storey support: With 2 boards for spring clips (please order separately) or for mounting Combifix SM attachments.2-storey top frame SM / TH: 2-storey top frame for all SM shakers. Dimensions adapted to TH 30. For vessels with a max. height of 14 cm (Erlenmeyer flasks 200 / 250 ml). Dimensions (w x d x h): 600 x 402 x 192 mm. For fastening the vessels, either universal trays SM or sliding plates with Combifix SM can be used.

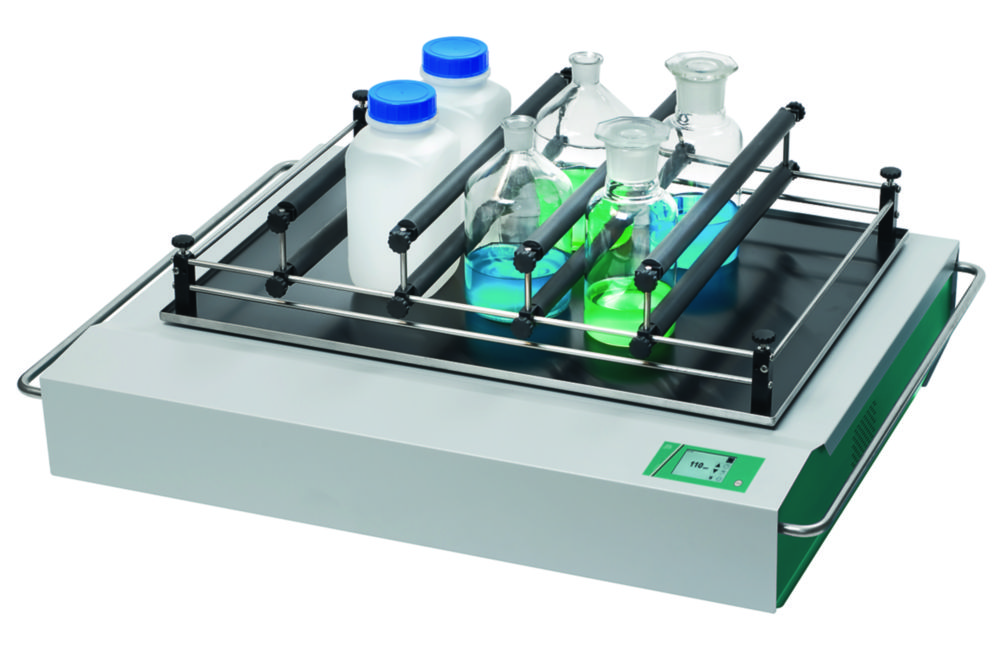

Low-profile laboratory shaker with large platform and 15 kg load capacity. With continuously adjustable speed range: 0 to 300 rpm, digital display and timer. Continuous operation is guaranteed even under extreme loads. Requires accessory attachments for operation (these are not supplied). Ideally suited for flasks, measuring cylinders and particularly separating funnels. Developed for universal applications. Timer from 1 to 55 min.

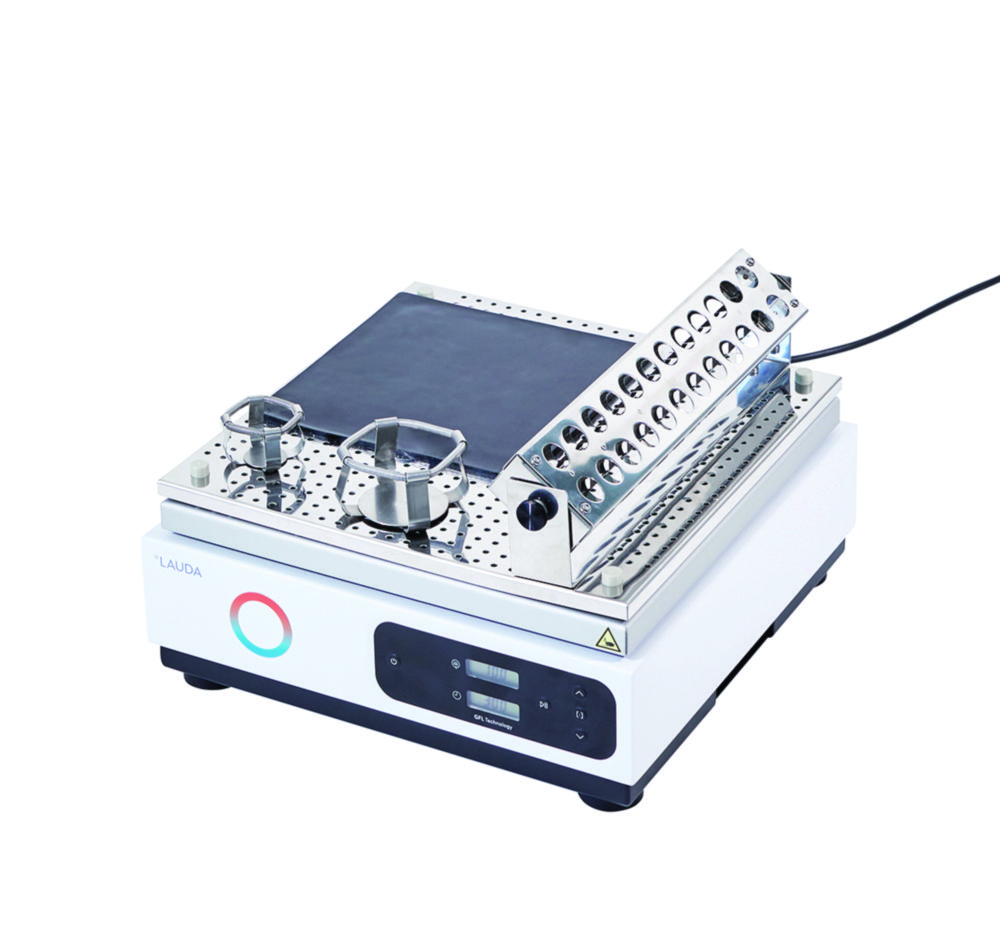

The Reciprocal shakers Varioshake impress with their top quality, durability and absolute reliability. Their stable, low-wear mechanics ensure particularly quiet and reliable continuous operation.The devices can be optimally equipped for every need thanks to the extensive range of accessoriesWith »GFL Technology« for the highest quality, reliability and durabilityCompact design for a small footprint on work surfaces and for integration in standard incubatorsDigitally controlled model with a wide timer range, start/stop function and high reproducibility through storage of the last operating parameters. Timer from 1 min to 99 h 59 min.Scope of supply: Shaking device with moving tablePlease order shaking attachments, trays and accessories separately.

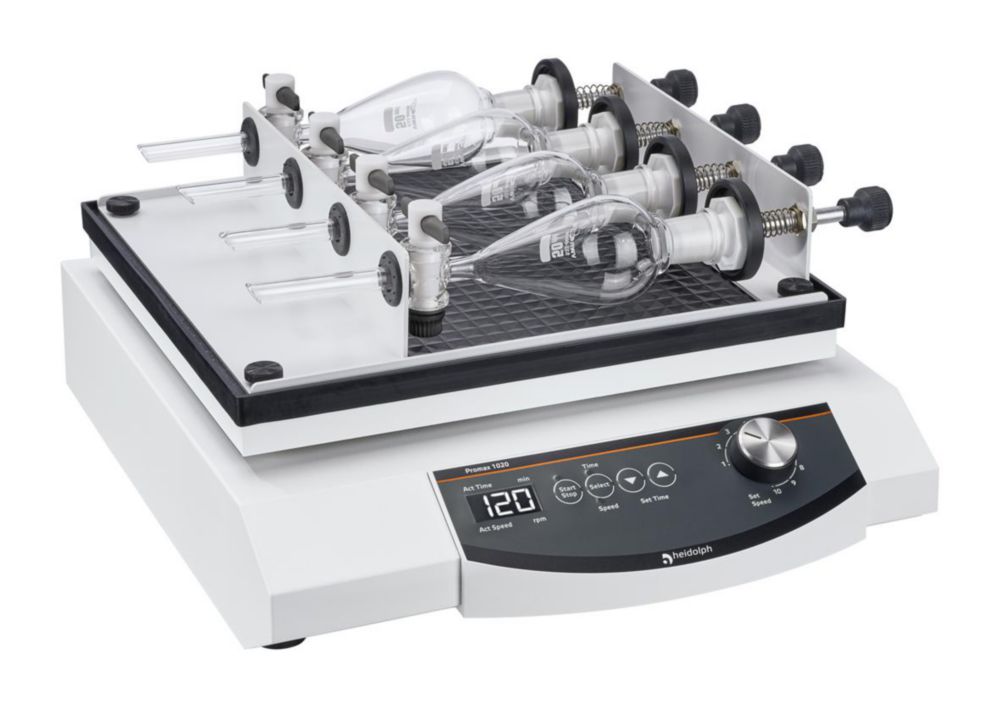

The Platform Shakers Promax is suitable for the modular Incubator 1000 and is recommended for applications which require variable temperatures.Set and continuously adjust the variable speed on the analog control knob, ideal for separationWide range of optional accessories and attachments for a large variety of applications.An overtemperature sensor preventatively shuts off the unit in a dangerous heat-up situation, particularly valuable for you in case of continuous operationThe insulated drive system prevents any heat-up coming from the motor and consequently thermal damage to your sampleDesigned with a low center of gravity which prevents gliding at high speed, even on a damp surfaceAn analog process timer allows for unattended operation. When the set time has elapsed, an acoustic alarm will sound and the operation stopsCompact model for a medium sample throughput with an ideal motion for separatory funnels. Timer from 0 to 999 min.

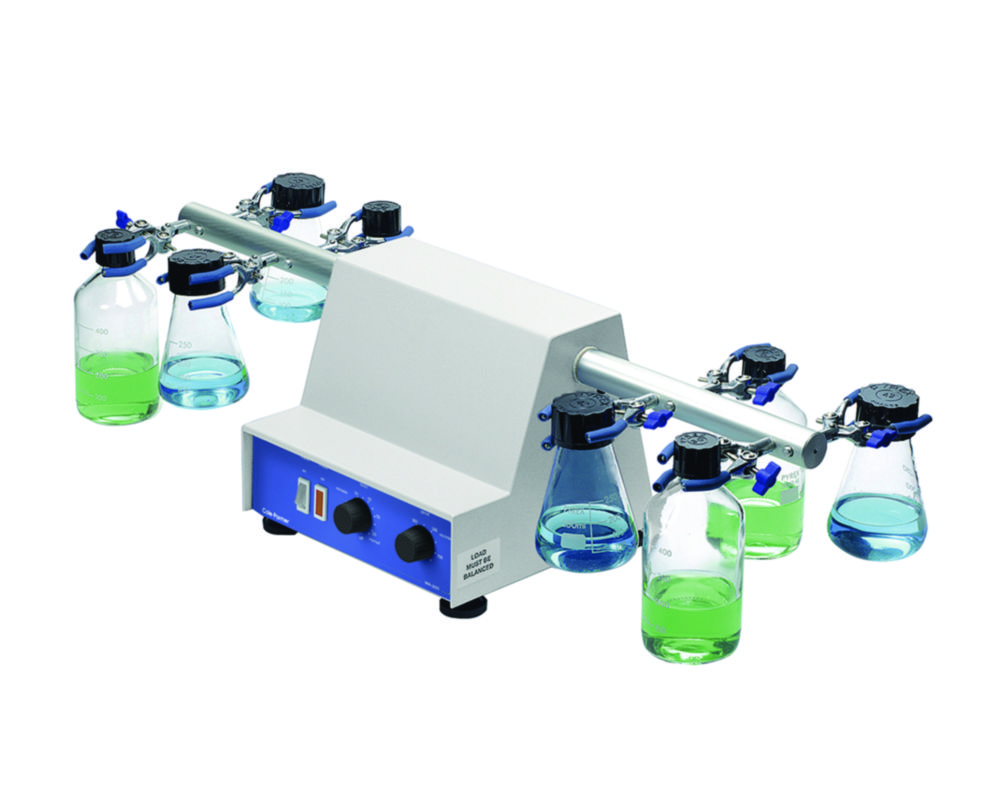

Creates a vigorous reciprocal shaking action. With clamps to accept 8 flasks up to 500 ml capacity. With stepless variable speed control from 80 to 800 oscillations/min. and 10 to 60 minute timer with off and continuous run settings. Electronic feedback control ensures a constant speed irrespective of the load.With BioCote, silver-based, antimicrobial protection.Scope of supply: Flask shaker incl. 2 arms, 8 clamps and allen keyPlease order extension kit for shaking of 12 bottles or flasks separately.
