Cells made of optical glass 17 mm x 75 mm, for Comparator 2000+ and Comparator 3000 using unheated samples (up to 40 °C).Further versions available on request.

Nessler cylinder AF306P, 113 mm: For use with the Nessleriser 2150 for the measurement of the Pt-Co/Hazen colour discs NSH (10-90 mg Pt/l) and NSB (70-250 mg Pt/l) and NSX (50-300 mg Pt/l).Nessler cylinder DB420, 250 mm: For use with the Nessleriser 2250 for the measurement of the Pt-Co/Hazen colour discs CAA (0-30 mg Pt/l) and CAB (30-70 mg Pt/l).

Round glass cuvette for colour measurement of liquids.

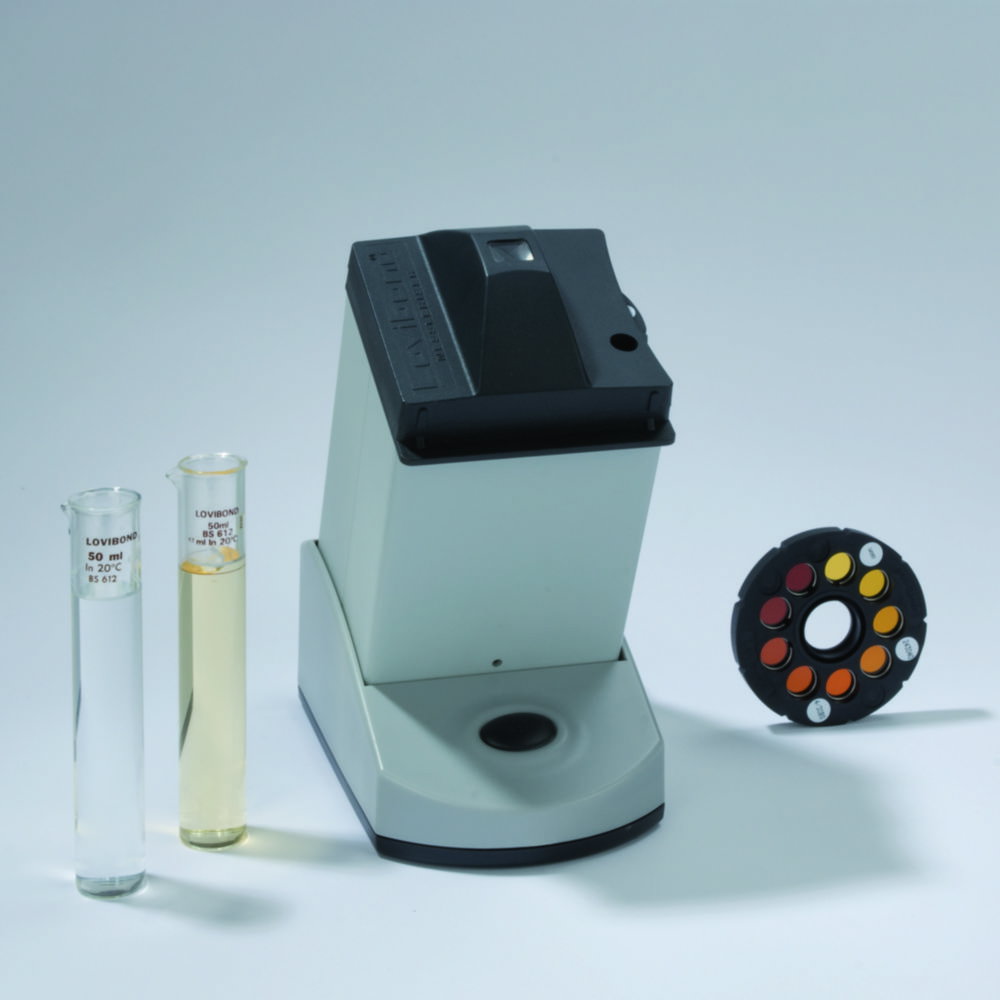

Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.ModelApparatus includedAF 325:Nessleriser 2150 with Daylight 2000 Lighting Unit and 113 mm (50ml) Nessler cylinders, Pt-Co discs NSH (10 to 90mg Pt/l), NSB (70 to 250mg Pt/l), stand for using Nessleriser with natural light.AF 328:Nessleriser 2250 with Daylight 2000 Lighting Unit and 250mm Nessler cylinders, Pt-Co discs CAA (0 to 30mg Pt/l), CAB (30 to 70mg Pt/l), stand for using Nessleriser with natural light.AF 329:Nessleriser 2150 with Daylight 2000 Lighting Unit and 113mm (50ml) Nessler cylinders, Nessleriser 2250 upgrade with 250mm Nessler cylinders, Pt-Co discs CAA (0 to 30mg Pt/l) CAB (30 to 70mg Pt/l), NSB (70 to 250mg Pt/l), stand for using Nessleriser with natural light.AF 330:Comparator 2000+ with Daylight 2000 Lighting Unit (EBC Version), EBC discs (4/14A, 2 - 6; 4/14B, 6 - 10; 4/14C, 10 - 18; 4/14D, 19 - 27), 2 x W680/OG/25 mm fused cellsAF 334:Comparator 2000+ with Daylight 2000 Lighting Unit, Gardner discs (4/30 AS, 1 - 9; 4/30 BS, 10 - 18), 2 x W680/OG/10 mm fused cells

Ergonomic and flexible reflection spectrophotometers for measuring samples in different industries including food, medicine, coatings and plastics. The on-board camera-based locator and the black and white calibration plates ensure precise measurements and results at all times.CMOS sensor (256 picture elements, double array)Intuitive 3.5 inch TFT color LCD (capacitive), symbol-basedFree PC-based OnShade software which allows graphs and statistical process controlOperation languages: English, French, German, Spanish, Portuguese, ChineseSwitchable aperture (Ø 8 mm/Ø 4 mm) for adapting the measurement size to the surfaceWith the 45°/0° geometry, the device can measure the reflectance colour spectra of samples. This enables it to determine accurate colour difference values, formulas and indices in common colour spacesExternal memory with 1000 standards and 30000 samplesScope of supply: Reflectance spectrophotometer, OnShade PC software, black and white calibration board (white tile and black light trap), dust cover, USB cable, external DC power supply, USB stick with user manual in English and Chinese, carrying caseSpecificationsLight source:combined LED light, UV lightIlluminant:D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12Inter instrument agreement:Within ΔE*ab 0.15 (Average for 12 BCRA Series II colour tiles)Dimensions (W x D x H):184 x 105 x 77 mmWeight:600 gOptical geometry:45°/0°Colour space:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LabColour difference formular:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)Other colorimetic index:WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), metamerism index (MI), staining fastness, colour fastness and strength, opacitySpectral range:400 ... 700 nmSpectral interval:10 nmMemory:1000 standards, 30000 samplesInterface:USB, Bluetooth® 4.0Power supply:Li-ion battery

Cells made of optical glass or Borosilicate glass 3.3, 21 mm x 40 mm, for instument Models Fs, PFXi/PFX195, 880, 950 and 995. (Note: PFXi/PFX-195 max. path length 50 mm).W600/OG/xx for unheated samples (up to 40 °C)W600/B/xx for heated samples (up to max. 100 °C)Further versions available on request.

Bottles of 500 ml, certified according to QS System, ISO 9001. Shelf life 12 months. Other versions available on request.

Hand-Held Imaging SpectrocolorimeterUnique housing stand to protect sample from ambient lightEnables measurement of food, powders, cosmetics and pastesVersatile Communication of Colour MeasurementSingle, Simple, Reliable, Integrated Tool, no need to connect to PCReadings and Comparison Charts within SecondsInformation on Colour and Surface Texture EffectsConformance Reports in PDF and Excel FormatsPrecise Image Sampling with 9 Band AccuracyThe Lovibond® LC 100 / SV 100 kit provides a unique solution to users looking to measure food, powders, cosmetics and pastes. The SV 100 holder supports the LC 100 at an ergonomic viewing angle to enable the measurements in Lovibond® optical cells. A secure cap is provided to cover the sample, protecting it from any excessive ambient light, enabling quick yet accurate readings. The units are provided in a purpose-designed case containing all the accessories required for accurate colour measurement expected of the Lovibond® brand inclusive data transfer.Scope of supply LC 100 / SV 100 kit: LC 100 spectrocolorimeter, SV 100 viewing stand, carrying case, USB cable, cell adapter, 10 x cells (10 mm).SpecificationsMeasuring Geometrics:45/0 Image CaptureLight Source:Independent tri-directional 25 LED (8* visible wavelengths; 1* UV)Illuminant/Observer:D65&A(10)Standards / Sample Storage:30 / 350Measurement Time:1.8 secondsMeasuring Area:4 mm und 8 mmShort Term RepeatabilityTypical 0.10 ΔE 94 on white (D65/10)Interface:USB (Mass Storage Device)

The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology (Remote Calibration & Maintenance Service via internet). Users can benefit from the capability for remote calibration and servicing via the internet - eliminating any costs and time delays associated with servicing and guaranteeing compliance with standards. The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time. Every PFXi is supplied with colour control software for data analysis (LAN & USB cable provided). Optical glass cells, a certified glass calibration filter, a spare lamp and user instructions included. The PFXi-880 and -995 series are available with an optional integrated heater unit. (This is not available for the PFXi-195). This is a critical feature when dealing with materials such as fats and waxes where temperature needs to be maintained at a constant temperature +10°C above the "Cloud Point" of the material.Please Note: CIE values and spectral data readings are standard on all the instruments listed below.

Two-Field and Three-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results.With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings "within tolerance" (green), "outside tolerance" (red) and "on border of tolerance" (amber) to provide the user with immediate information on the sample.Instant and accurate, ready for immediate useGuaranteed agreement with international standardsResults shown on display optional as colour or numeric valueDigital, mobile technology at the press of a buttonInstant reporting from the laboratory or on siteThe EC 2000 range provides users with a Two Field View visual representation in alignment with the popular Lovibond® Comparator 2000+ system widely used today.The EC 3000 range provides users with a Three Field View visual representation in alignment with the popular Lovibond® Comparator 3000 / AF comparators. Here the sample and two consecutive readings of the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match.EC 2000 PT CO: Platinum-Cobalt/Hazen/Apha Colour (ASTM D 1209)/True Colour Units (TCU). Water, clear oils, chemicals and petrochemicals. Incl. cells (3 x 50 mm W100 plastic) and (1 x 50 mm W100 OG)EC 2000 GARDNER COLOUR: ASTM D 1544, ASTM D 6166, AOCS Td 1a, MS 817 Part 10. Resins, varnishes, lacquers, drying oils, fatty acids, lecithins, sunflower oil, linseed oil. Incl. cells (3 x 10 mm W100 plastic) and (1 x 10 mm W100 OG)EC 3000 ASTM COLOR: ASTM D 1500, ASTM D 6045, ISO 2049, IP196. For mineral oils and petrochemicals. Incl. cells (2 x 33 mm W100 plastic) and (2 x 33 mm W100 OG)EC 3000 SAYBOLT COLOUR: ASTM D 156, ASTM D6045. Aviation fuels, kerosene, naphthas, white mineral oils, hydrocarbon solvents, petroleum waxes. Incl. cells (2 x 50 mm W100 plastic) and (2 x 50 mm W100 OG)Scope of supply: Liquid reference standards and 1 glass standard included for EC 2000 and 2 glass standards included for EC 3000.

Visual comparators for colour grading. A series of 3-field instruments designed for visual colour grading by direct comparison between the sample and coloured glass standards. The sample and two adjacent glasses on the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match. The tungsten halogen light source is colour corrected to CIE Standard Illuminant C (B for the EBC Comparator 3000) and guarantees constant lighting conditions for colour grading. Versions of the Comparator 3000 are available for the following scales, each supplied with the appropriate range of colour standards and sample containers:TypeTypical ApplicationsGardner Comparator 3000:Chemicals and oils including resins, varnishes, drying oils and fatty acids (ASTM D1544; ISO 4630, AOCS Methods Ja 9-87, Td 1a-64, Td 3a-64).Petroleum Oils Comparator (AF 650):Petroleum oils and fuels (ASTM D1500; IP 196; DIN 51 578; ISO 2049; BS 5859)EBC Comparator 3000:Beers, malt worts, caramels and similarly coloured liquids (Analytica)

Individually housed glass colour standardsPrismatic optical system for accurate and repeatable colour matchingStandardised and diffused tungsten-halogen light sourceReplacement inserts simplify cleaning and maintain interior whitenessThe Model F is a versatile visual colorimeter for measuring the colour of liquids, solids, powders and pastes in terms of Lovibond units. The user simultaneously compares the colour of light that is either transmitted through or reflected from the sample with that transmitted through a series of glass colour filters in 3 primary colours - red, blue and yellow. The slides are adjusted until a visual colour match is found for the light from the sample and the colour is then expressed in Lovibond RYBN units.The Model F is supplied with a complete set of Lovibond coloured glass filters (Red 0.1 to 70; Yellow 0.1 to 70; Blue 0.1 to 40; Neutral 0.1 to 3.0), a sample chamber insert for easy cleaning, fused glass cells (one each of 1" and 5¼"), accessories and instructions. An optional solid sample accessory pack is available for measuring light-reflecting products. Includes a 12 Volt a.c. power pack switchable to suit 110/220/Volt supply.Each instrument is supplied with optical cuvettes of the appropriate path length for the individual colour scales, calibration filter, spare lamp and operating instructions.

Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.

Ergonomic and flexible reflection spectrophotometers for measuring samples in different industries including food, medicine, coatings and plastics. The on-board camera-based locator and the black and white calibration plates ensure precise measurements and results at all times.CMOS sensor (256 picture elements, double array)Intuitive 3.5 inch TFT color LCD (capacitive), symbol-basedFree PC-based OnShade software which allows graphs and statistical process controlOperation languages: English, French, German, Spanish, Portuguese, ChineseDual aperturesMeasurement of fluorescent materials with UV on/offExtended range of illuminantsExternal memory with 2000 standards and 20000 samplesScope of supply: Reflectance spectrophotometer, OnShade PC software, black and white calibration board (white tile and black interface), dust cover, USB cable, external DC power supply, USB stick with user manual in the operating languages, carrying caseSpecificationsLight source:combined LED light, UV lightIlluminant:D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12Repeatability:MAV/SCI: ΔE ≤0.03Inter instrument agreement:MAV/SCI: ΔE ≤0.15Dimensions (W x D x H):184 x 105 x 77 mmWeight:600 gOptical geometry:di: 8°, de: 8°Specular component:SCI, SCEColour space:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LabColour difference formular:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)Other colorimetic index:WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM, E313, CIE/ISO), metamerism index (MI), staining fastness, colour fastness and strength, opacitySpectral range:400 ... 700 nmSpectral interval:10 nmMemory:2000 standards, 20000 samplesInterface:USB, Bluetooth® 4.0Power supply:Li-ion battery

Combination of spectrophotometer TR 520 and portable docking station for precise and repeatable measurements of liquids, gels and powders. The precisely fitting docking station was specially developed for the TR 520 so that ambient lighting can not enter the sample. Different glass cells offer a wide range of applications. With their robust shape, the devices are ideal for use in every laboratory.CMOS sensor (256 picture elements, double array)Intuitive 3.5 inch TFT color LCD (capacitive), symbol-basedExternal memory with 2000 standards and 20000 samplesFree PC-based OnShade software which allows graphs and statistical process controlOperation languages: English, French, German, Spanish, Portuguese, ChineseDual aperturesMeasurement of fluorescent materials with UV on/offExtended range of illuminantsMeasurements are easy-to-read through the angled viewing windowIntegrated cover prevents the effects of extraneous lightScope of supply: Spectrophotometer TR 520, complete TR 520 accessories, sample cover, white background plate, 3 x optical glass cells (10, 20, 30 mm)SpecificationsLight source:combined LED light, UV lightIlluminant:D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12Repeatability:MAV/SCI: ΔE ≤0.03Inter instrument agreement:MAV/SCI: ΔE ≤0.15Dimensions (W x D x H):207 x 170 x 130 mmWeight:1200 gOptical geometry:di: 8°, de: 8°Specular component:SCI, SCEColour space:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LabColour difference formular:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)Other colorimetic index:WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM, E313, CIE/ISO), metamerism index (MI), staining fastness, colour fastness and strength, opacitySpectral range:400 ... 700 nmSpectral interval:10 nmMemory:2000 standards, 20000 samplesInterface:USB, Bluetooth® 4.0Power supply:Li-ion battery

Combination of spectrophotometer TR 500 and portable docking station for precise and repeatable measurements of liquids, gels and powders. The precisely fitting docking station was specially developed for the TR 500 so that ambient lighting can not enter the sample. Different glass cells offer a wide range of applications. With their robust shape, the devices are ideal for use in every laboratory.CMOS sensor (256 picture elements, double array)Intuitive 3.5 inch TFT color LCD (capacitive), symbol-basedExternal memory with 2000 standards and 20000 samplesFree PC-based OnShade software which allows graphs and statistical process controlOperation languages: English, French, German, Spanish, Portuguese, ChineseMeasurements are easy-to-read through the angled viewing windowIntegrated cover prevents the effects of extraneous lightScope of supply: Spectrophotometer TR 500, complete TR 500 accessories, sample cover, white background plate, 3 x optical glass cells (10, 20, 30 mm)SpecificationsLight source:combined LED lightIlluminant:D65, A, C, D50, D55, D75, F2, F7, F11Repeatibility:MAV/SCI: ΔE ≤0.05Inter instrument agreement:MAV/SCI: ΔE ≤0.2Dimensions (W x D x H):207 x 170 x 130 mmWeight:1200 gOptical geometry:di: 8°, de: 8°Specular component:SCI, SCEColour space:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LabColour difference formular:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)Other colorimetic index:WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM, E313, CIE/ISO), metamerism index (MI), staining fastness, colour fastness and strength, opacitySpectral range:400 ... 700 nmSpectral interval:10 nmMemory:2000 standards, 20000 samplesInterface:USB, Bluetooth® 4.0Power supply:Li-ion battery

Ergonomic and flexible reflection spectrophotometers for measuring samples in different industries including food, medicine, coatings and plastics. The on-board camera-based locator and the black and white calibration plates ensure precise measurements and results at all times.CMOS sensor (256 picture elements, double array)Intuitive 3.5 inch TFT color LCD (capacitive), symbol-basedFree PC-based OnShade software which allows graphs and statistical process controlOperation languages: English, French, German, Spanish, Portuguese, ChineseCustomer-specific aperturesExternal memory with 2000 standards and 20000 samplesScope of supply: Reflectance spectrophotometer, OnShade PC software, black and white calibration board (white tile and black interface), dust cover, USB cable, external DC power supply, USB stick with user manual in the operating languages, carrying caseSpecificationsLight source:combined LED lightIlluminant:D65, A, C, D50, D55, D75, F2, F7, F11Repeatability:MAV/SCI: ΔE ≤0.05Inter instrument agreement:MAV/SCI: ΔE ≤0.2Dimensions (W x D x H):184 x 105 x 77 mmWeight:600 gOptical geometry:di: 8°, de: 8°Specular component:SCI, SCEColour space:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LabColour difference formular:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)Other colorimetic index:WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM, E313, CIE/ISO), metamerism index (MI), staining fastness, colour fastness and strength, opacitySpectral range:400 ... 700 nmSpectral interval:10 nmMemory:2000 standards, 20000 samplesInterface:USB, Bluetooth® 4.0Power supply:Li-ion battery

The Lovibond® Model Fx solves the problem of measuring the colour of edible oils and fats with its unique ability to not only keep the oil at a constant temperature but also to measure and report on the temperature of the sample, avoiding any misreading from crystallisation. The oils can now be measured in their natural and correct state.Avoids misreading from crystallisationMeasures Lovibond® RYBN, Lovibond RY10:1, AOCS RY, Chlorophyll & b-CaroteneAllows the Measurement of Hot Samples (Integrated Heater)Ensured Compliance to StandardsScope of supply: Colorimeter, W600/B/1" cell (borosilicate, 1" path length), W600/B/5¼" cell (borosilicate, 5¼" path length), external power supply, quick start guide (hard copy), USB memory stick (containing the manuals), certificate of conformitySpecificationsWavelength Range:380 ... 780 nmAccuracy:± 0.2 nmSpectral Scope: 15 nmPhotometric Range:0 ... 100 % TLinearity:± 0.01 % TStray light: 0.01 % TInterfaces:USB, RS 232Dimensions (W x D x H):301 x 152 x 331 mmWeight:516 g

With spout and white circular mark. Calibrated "In".

Cuvettes made of PMMA for colour measurement of liquids.

Adapter set for accepting 10 and 12 mm tubes.
