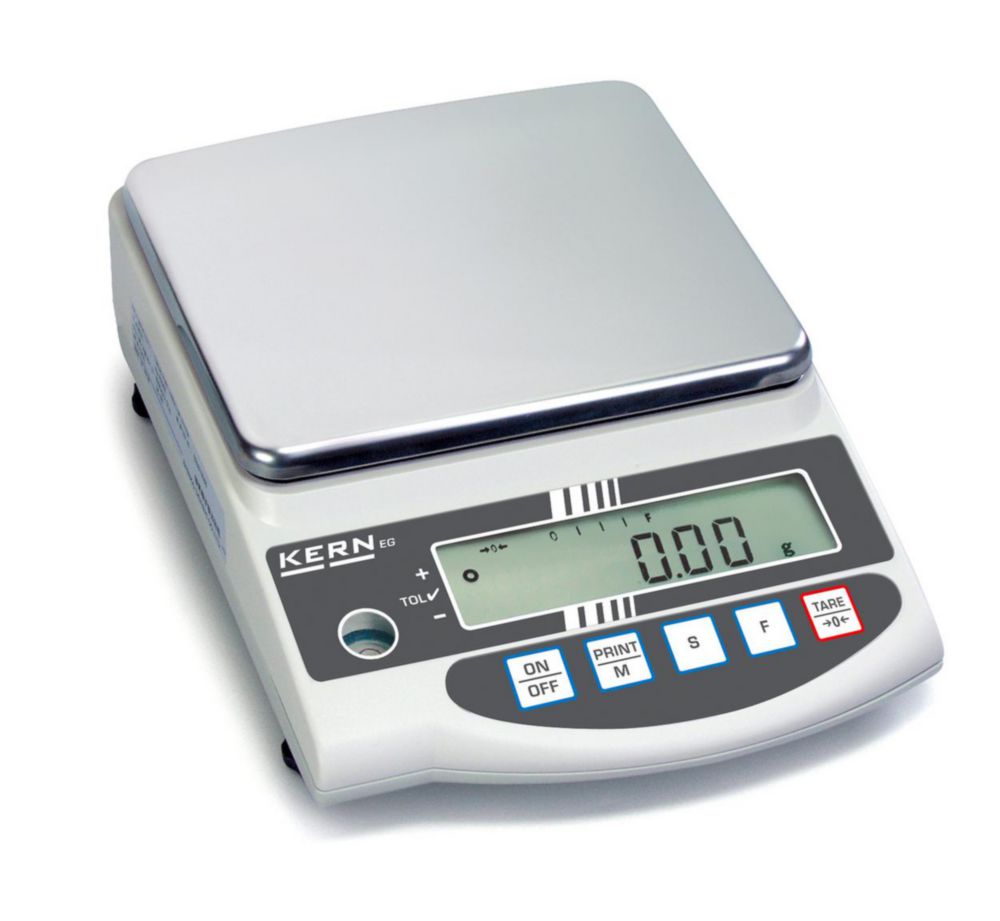

Precision balances type EW-N and EG-N
Product number:
9901016
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Length:
408 mm
Width:
323 mm
Height:
230 mm
Weight:
4.45 kg
Description
High quality laboratory balances, housed in a robust and stable plastic casing. With bar graph capacity display which shows the current available weighing range remaining.
Scope of supply: Precision balance, protective working cover
Optional available: Thermal printer, statistics printer, internal Akku-Pack, DKD calibration certificate for balance and optional test weight
- LCD display
- Internal automatic calibration (type EG-N)
- CAL adjustment programme (type EW-N)
- Draught shield supplied with all 0.001g readability models
- Parts counting facility, percentage weighing function, under-balance weighing facility
- Weighing with tolerance range
- RS-232 data interface
Scope of supply: Precision balance, protective working cover
Optional available: Thermal printer, statistics printer, internal Akku-Pack, DKD calibration certificate for balance and optional test weight
Properties
| Adjusting program: | Internal |
|---|---|
| Depth: | 235 mm |
| Depth weighing plate: | 160 mm |
| Dimensions (WxDxH): | 180 x 235 x 75 mm |
| Height: | 75 mm |
| Linearity: | ±0,01 g |
| Manufacturer Article Number: | EG 2200-2NM |
| Max. load: | 2200 g |
| Max. voltage: | 230 V |
| Plug type: | EU/CH |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Readability: | 0,01 g |
| Reproducibility: | 0,01 g |
| Type: | EG2200-2NM |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| UNSPSC: | 41111517 |
| Verified calibration: | Verifiable |
| Weighing plate (WxD): | 180 x 160 mm |
| Width: | 180 mm |
| Width weighing plate: | 180 mm |
| With draft shield: | No |
