Platform scales SFE
Product number:
6286655
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Length:
698 mm
Width:
413 mm
Height:
240 mm
Weight:
6 kg
Description

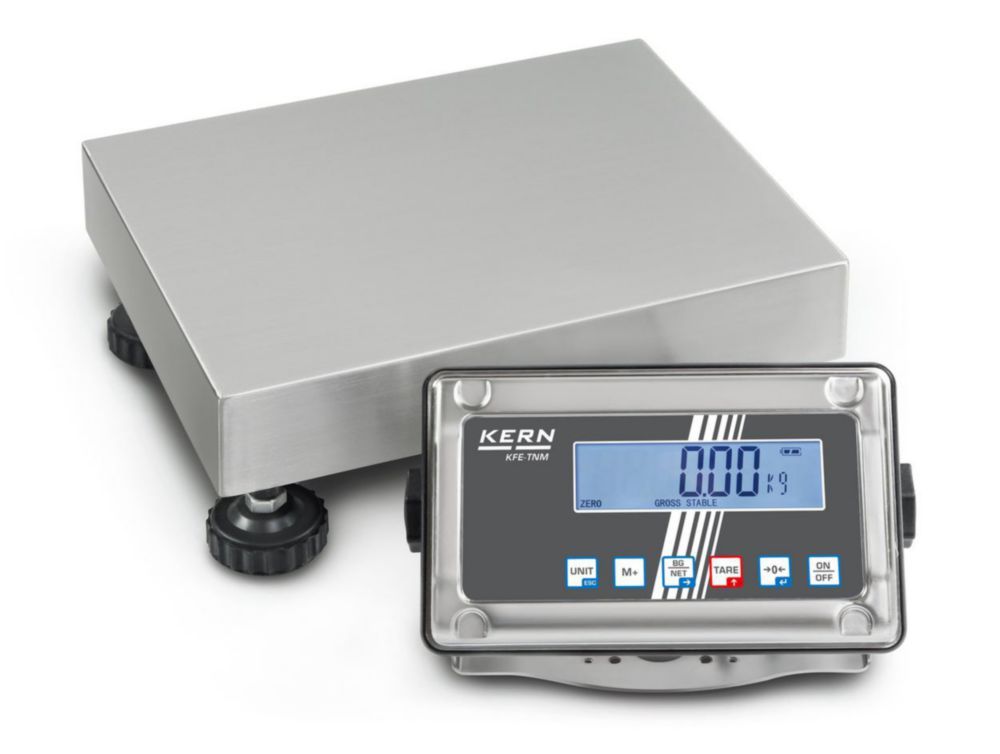

Platform scale for use in industry. A visual and audible signal helps with portioning, dispensing or grading.
- Large backlit LCD display
- Weighing plate of stainless steel, painted steel base
- Silicone-coated aluminium load cell, dust and splash water protection IP65
- Display device: stainless steel, dust and splash water protection IP65
- Dimensions of display device (W×D×H): 195×120×70 mm
Properties
| Adjusting program: | External |
|---|---|
| Battery/rechargeable battery: | 7.2 V, NiMH |
| Depth: | 240 mm |
| Depth weighing plate: | 240 mm |
| Dimensions (WxDxH): | 300 x 240 x 109 mm |
| Electrochemical system: | NiMH |
| Height: | 109 mm |
| IP code: | IP 65 |
| Linearity: | ±0.01 kg |
| Manufacturer Article Number: | SFE 30K-2NM |
| Material housing: | Stainless steel |
| Material weighing plate: | Stainless steel |
| Max. load: | 30 kg |
| Max. voltage: | 240 V·AC |
| Max. voltage battery/rechargeable battery: | 7.2 V |
| Min. voltage: | 220 V |
| Plug type: | EU/UK/CH/US/AUS |
| Power supply: | 220 ... 240 V·AC, 50 Hz |
| Power supply frequency: | 50 Hz |
| Readability: | 0.01 kg |
| Reproducibility: | 0.01 kg |
| Type: | SFE 30K-2NM |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| UNSPSC: | 41111509 |
| Verified calibration: | Verifiable |
| Warranty: | 2 years |
| Weighing plate (WxD): | 300 x 240 mm |
| Weight: | 6 kg |
| Width: | 300 mm |
| Width weighing plate: | 300 mm |
