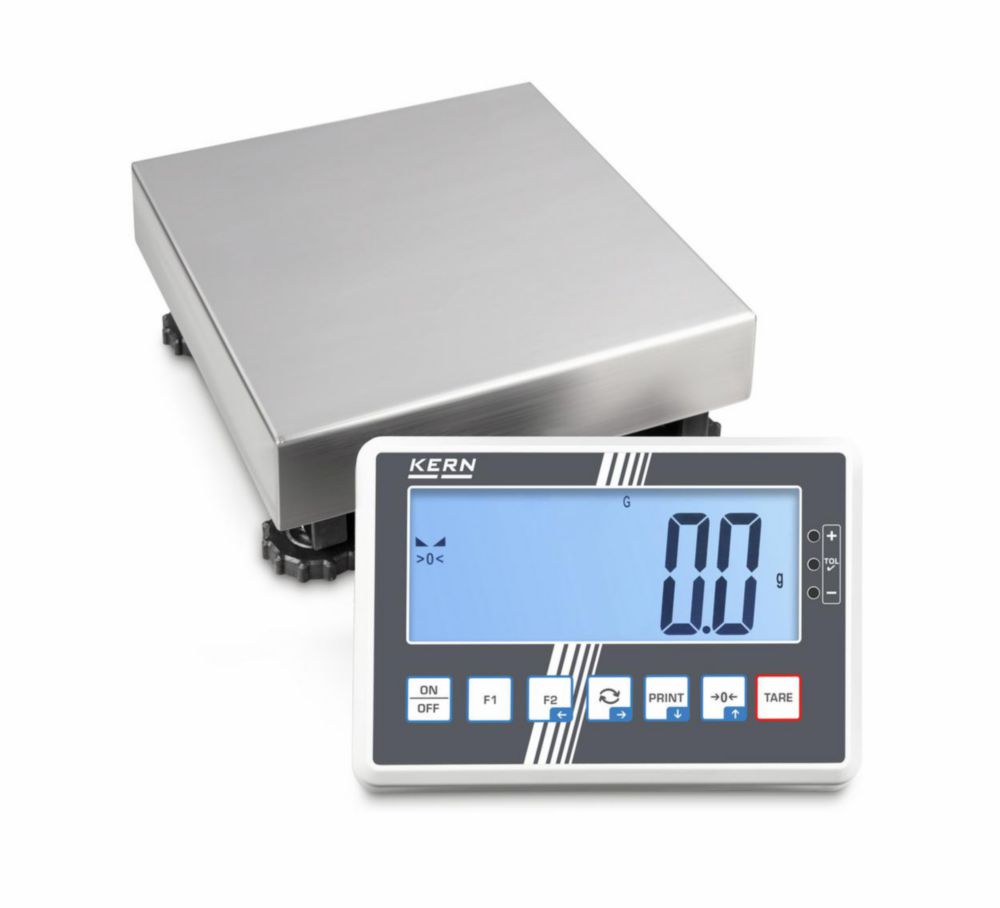

Platform scales IFC, IoT-Line
Product number:
4711814
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description
The KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.
Scope of supply: Platform scale, protective working cover, benchtop stand incl. wall mount for display device, universal mains adapter
- Large backlit LCD display, digit height 48 mm
- Real Time Clock
- Simplified battery replacement through easily-accessible housing
- Weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell
- Dimensions of display device (W×D×H) 220 × 145 × 65 mm
Scope of supply: Platform scale, protective working cover, benchtop stand incl. wall mount for display device, universal mains adapter
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 230 mm |
| Depth weighing plate: | 230 mm |
| Dimensions (WxDxH): | 230 x 230 x 106 mm |
| Height: | 106 mm |
| Linearity: | ±0,3 g |
| Manufacturer Article Number: | IFC 3K-4 |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 3 kg |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0,1 g |
| Reproducibility: | 0,1 g |
| Type: | IFC 3K-4 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111509 |
| Verified calibration: | Not verifiable |
| Warranty: | 2 years |
| Weighing plate (WxD): | 230 x 230 mm |
| Weight: | 4.6 kg |
| Width: | 230 mm |
| Width weighing plate: | 230 mm |
