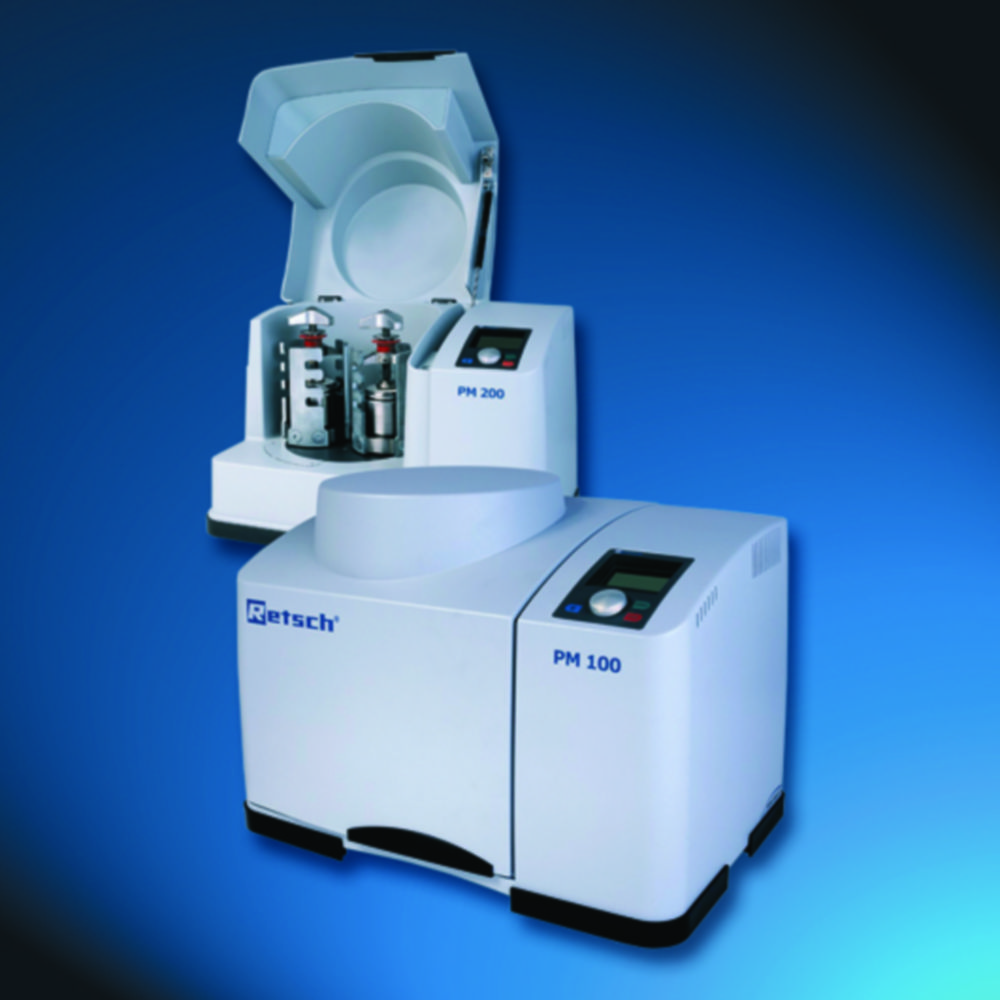

Planetary Ball Mills PM
Product number:
9739270
Manufacturer:
Retsch GmbH
Packaging information:
Weight:
90 kg
Description
Planetary Ball Mills are suitable for mixing and grinding soft, medium-hard, extremely hard, brittle and fibrous materials. They are used whenever high degrees of fineness down to the submicron range are to be achieved in a very short time. In addition to dry and wet grinding, they are also suitable for colloidal grinding and mechanical alloying. Typical materials are minerals, ores, chemicals, ceramics, soils, household and industrial waste etc.
Features:
Supplied with: Planetary Ball Mill only. Grinding jars and grinding balls have to be ordered separately.
Please order grinding jars and grinding balls separately.
Features:
- Extremely high ultimate fineness down to submicron range
- 1, 2 or 4 grinding stations
- Grinding jar volumes from 12ml to 500ml
- Suitable for long-term trials and continuous use
- Programmable starting time
- Power failure back-up ensures storage of remaining grinding time
- Reproducible results due to digital parameter setting
- 10 parameter combinations can be stored
- Single button operation with graphic display
- Automatic grinding chamber ventilation for cooling the grinding jars
- Grinding jars in 7 sizes and 8 different materials available
Supplied with: Planetary Ball Mill only. Grinding jars and grinding balls have to be ordered separately.
Please order grinding jars and grinding balls separately.
Properties
| Depth: | 415 mm |
|---|---|
| Dimensions (WxDxH): | 630 x 415 x 468 mm |
| Feed particle size: | 10 mm |
| Feed quantity: | 220 ml |
| Height: | 468 mm |
| Manufacturer Article Number: | 20.540.0001 |
| Max. feed particle size: | 10 mm |
| Max. feed quantity: | 220 ml |
| Max. final fineness: | 1 µm |
| Max. speed: | 650 1/min |
| Max. voltage: | 230 V·AC |
| Min. speed: | 100 1/min |
| No. of milling positions: | 1 |
| Plug type: | EU |
| Power supply: | 230 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 750 W |
| Speed: | 100 ... 650 1/min |
| Type: | PM 100 |
| Type of auxiliary energy: | Mains connection |
| Type of grinding: | dry/wet |
| Weight: | 86 kg |
| Width: | 630 mm |
