Overhead stirrer DLS
Product number:
4666671
Manufacturer:
Velp Scientifica SRL
Packaging information:
Length:
306 mm
Width:
275 mm
Height:
152 mm
Weight:
2.3 kg
Description
Powerful overhead stirrer with display for stirring of low to medium viscosity media up to 25000 mPas.
Scope of supply: Overhead stirrer
- Stable torque over the entire speed range with automatic compensation on viscosity changes
- Electronic speed control
- Gentle start-up to avoid splashing and blistering
- Chemical resistant and corrosion protected housing
- Blocking detection with switch-off function
- No tool required for assembly of the stirring tool
- Display shows all important parameters
- Timer with automatic power-off (up to 999 min 59 sec)
Properties
| Clamping range: | 1 ... 10 mm |
|---|---|
| Depth: | 196 mm |
| Dimensions (WxDxH): | 80 x 196 x 215 mm |
| Display: | Digital |
| Height: | 215 mm |
| IP code: | IP 40 |
| Manufacturer Article Number: | F201A0155 |
| Max. Viscosity: | 25000 mPa·s |
| Max. clamping width: | 10 mm |
| Max. speed: | 2000 1/min |
| Max. stirring capacity: | 25 l |
| Max. torque: | 40 Ncm |
| Max. voltage: | 230 V |
| Min. clamping width: | 1 mm |
| Min. speed: | 50 1/min |
| Min. voltage: | 110 V |
| Plug type: | EU |
| Power supply: | 110 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 120 W |
| Speed: | 50 ... 2,000 1/min |
| Type: | DLS |
| Type of auxiliary energy: | Mains connection |
| Warranty: | 3 years |
| Weight: | 2.5 kg |
| Width: | 80 mm |
| With connection ext. temperature sensor: | No |
| With timer: | Yes |
Skip product gallery
From
€1,190.00*
Set
Velp Scientifica SRL
Velp Scientifica SRL
Overhead stirrer set DLS System
Powerful overhead stirrer with display for stirring of low to medium viscosity media up to 25000 mPas.Stable torque over the entire speed range with automatic compensation on viscosity changesElectronic speed controlGentle start-up to avoid splashing and blisteringChemical resistant and corrosion protected housingBlocking detection with switch-off functionNo tool required for assembly of the stirring toolDisplay shows all important parametersTimer with automatic power-off (up to 999 min 59 sec)Scope of supply: Overhead stirrer, stand, double clamp, stirring shaft with propeller
Skip product gallery
From
€1,045.00*
From
€740.00*
From
€1,070.00*
From
€550.00*
Other customers also bought
Velp Scientifica SRL
Velp Scientifica SRL

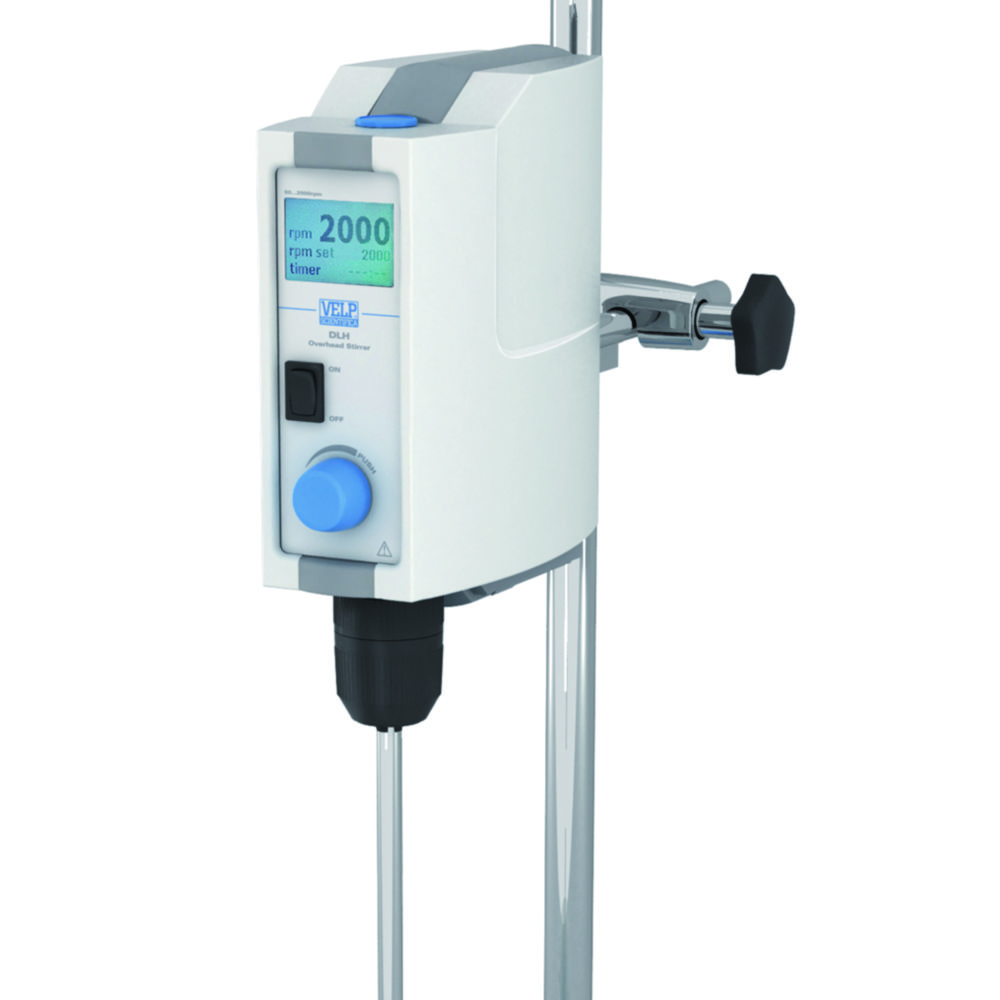

Overhead stirrer DLH
Powerful overhead stirrer with display for stirring of medium to high viscosity media up to 50000 mPas.Stable torque over the entire speed range with automatic compensation on viscosity changesElectronic speed controlGentle start-up to avoid splashing and blisteringChemical resistant and corrosion protected housingBlocking detection with switch-off functionNo tool required for assembly of the stirring toolDisplay shows all important parametersTimer with automatic power-off (up to 999 min 59 sec)
Velp Scientifica SRL
Velp Scientifica SRL
Overhead stirrer LS
Robust overhead stirrer for general tasks. Stirs media with low to medium viscosity up to 25000 mPas.Electronic speed controlGentle start-up to avoid splashing and blisteringChemical resistant and corrosion protected housingBlocking detection with switch-off functionNo tool required for assembly of the stirring toolScope of supply: Overhead stirrer
Velp Scientifica SRL
Velp Scientifica SRL

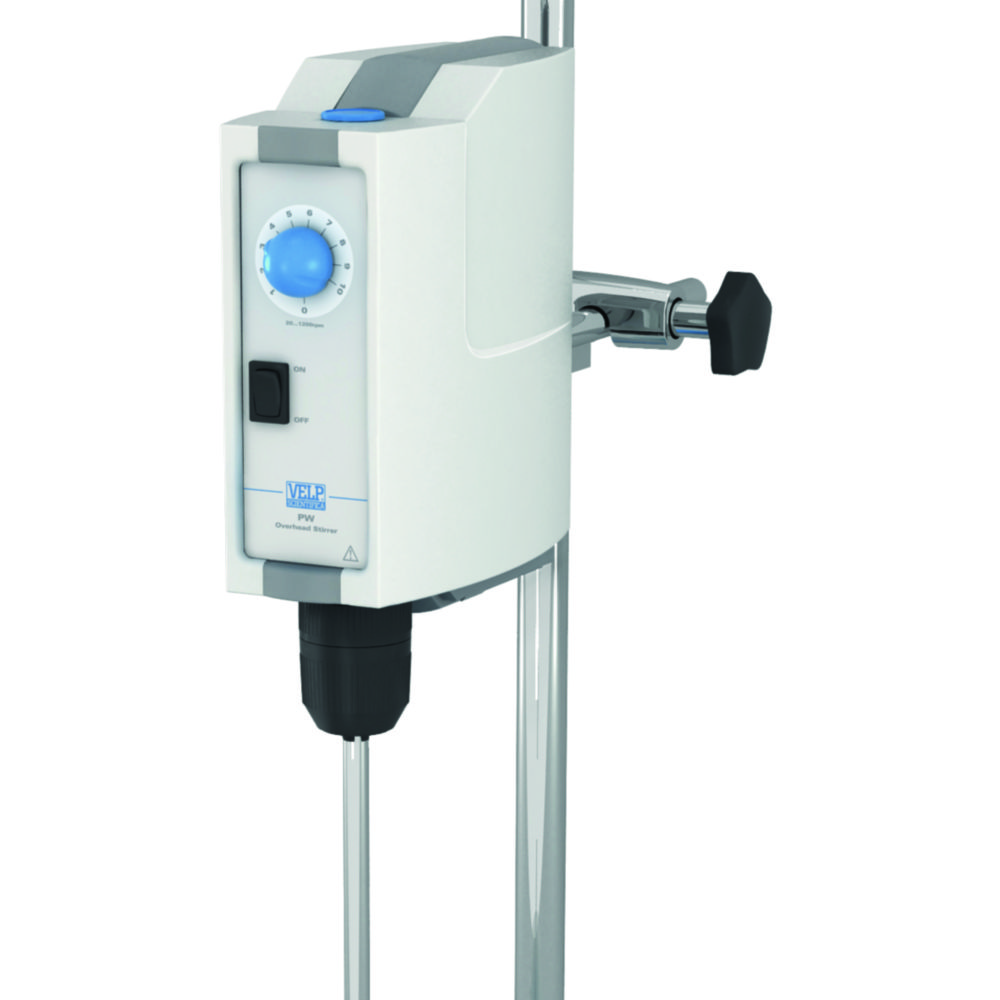

Overhead stirrer PW
Powerful overhead stirrer for high volumes with high viscosity up to 100000 mPas.Electronic speed controlGentle start-up to avoid splashing and blisteringChemical resistant and corrosion protected housingBlocking detection with switch-off functionNo tool required for assembly of the stirring tool
Velp Scientifica SRL
Velp Scientifica SRL

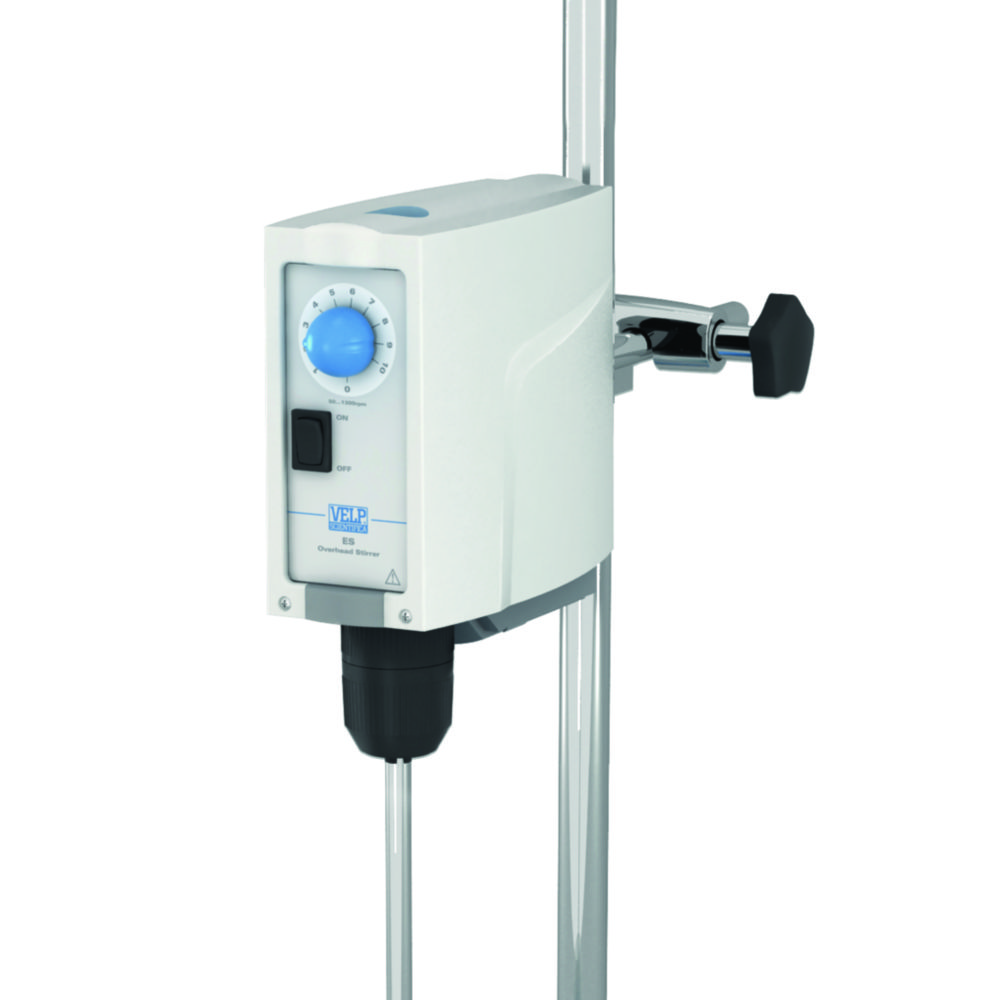

Overhead stirrer ES
Robust overhead stirrer for general tasks. Stirs media with low viscosity up to 1000 mPas.Electronic speed controlGentle start-up to avoid splashing and blisteringChemical resistant and corrosion protected housingBlocking detection with switch-off functionNo tool required for assembly of the stirring tool
Skip product gallery
From
€530.50*
From
€270.50*
Accessories
New
Velp Scientifica SRL
Velp Scientifica SRL
Telescopic stand
Suitable for VELP overhead stirrers. For stable mounting and low-vibration operation.
Velp Scientifica SRL
Velp Scientifica SRL

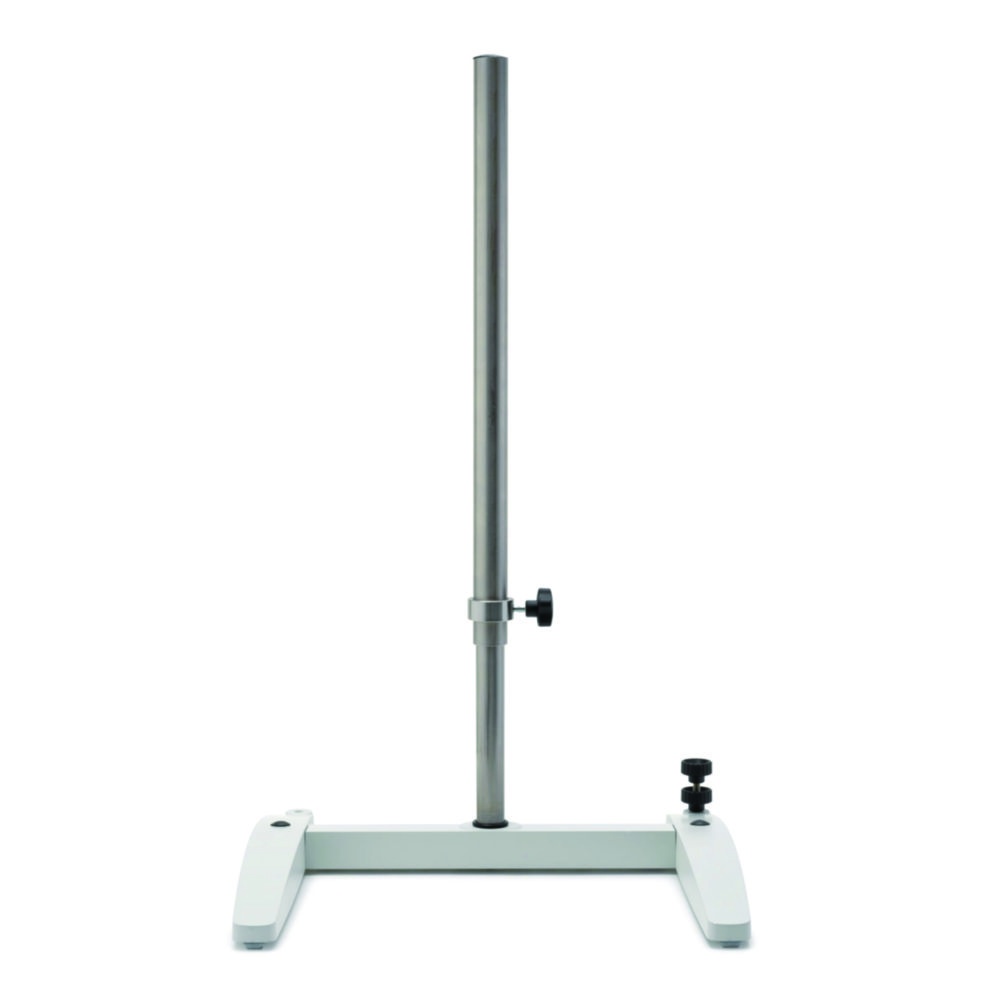

Universal stand
