Ovens Heratherm™ General Protocol, with mechanical convection
Product number:
4009210
Manufacturer:
Thermo Elect.LED GmbH (Kendro)
Packaging information:
Weight:
40 kg
Description

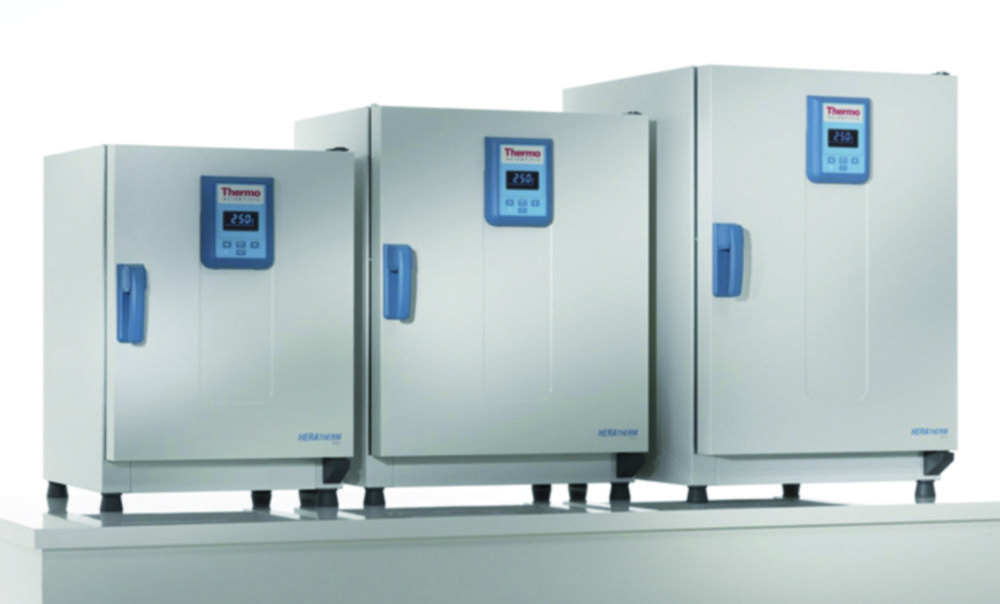

Thermo Scientific™ Heratherm™ General Protocol ovens are perfect for routine daily work, providing the ideal heating and drying solution for your applications.
Models with mechanical convection provide a temperature uniformity of ±3.3 °C with temperature stability of ±0.3 °C at 150 °C.
- Low energy consumption
- Built-in timer
- Excellent footprint/volume ratio
- Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
- Large, easy to view vacuum fluorescent display
- Simple, microprocessor-based touch button controls
- Doors can be opened over 180° making these units easy to access
- Automatic overtemperature alarm system to protect samples
- The exhaust vent can be used as an access port for an external temperature sensor
- Ovens come standard with a RS232 data interface
Properties
| Depth int.: | 368 mm |
|---|---|
| Ext. depth: | 565 mm |
| Ext. height: | 820 mm |
| Ext. width: | 640 mm |
| External dimensions (WxDxH): | 640 x 565 x 820 mm |
| Height int.: | 608 mm |
| IP code: | IP 20 |
| Int. width: | 464 mm |
| Internal dimensions (WxDxH): | 464 x 368 x 608 mm |
| Manufacturer Article Number: | 51028149 |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 16 |
| Max. temperature: | 250 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +10 °C |
| Nominal capacity: | 104 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 3060 W |
| Temperature: | RT+10 ... 250 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,3 °C |
| Type: | OMS100 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 53 kg |
| With timer: | Yes |
