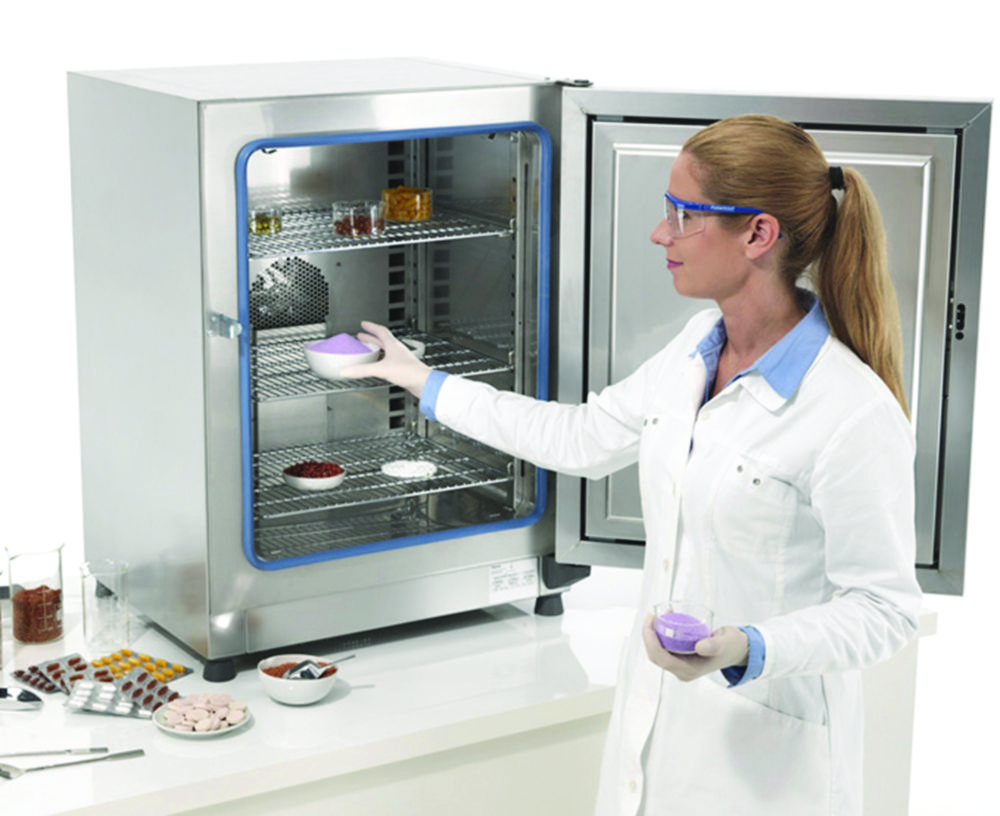

Ovens Heratherm™ Advanced Protocol Security, with gravity convection, stainless steel exterior
Product number:
4009229
Manufacturer:
Thermo Elect.LED GmbH (Kendro)
Packaging information:
Weight:
72 kg
Description
The Thermo Scientific™ Heratherm™ Advanced Protocol Security portfolio combines the benefits of the Advanced Protocol line with an extra layer of security for applications where process reliability and sample protection are paramount.
The Thermo Scientific™ Heratherm™ Advanced Protocol Security portfolio combines the benefits of the Advanced Protocol line with an extra layer of security for applications where process reliability and sample protection are paramount.
- Sophisticated timer extends the automation options available to the user: turn on or off after a pre-set time, choose between a recurring weekly timer or run oven based on the 24 hour clock
- Highest level of temperature uniformity
- Exceptionally low energy consumption
- Adjustable fan speed for application related airflow
- Programmable controller for temperature ramps and dwells (store up to 10 programs with 10 discrete steps, features electronically controlled fan speed and damper position)
- Access port allows the introduction of sensors for independent data monitoring
- A simple calibration routine ensures temperature accuracy over time
- Boost function enables rapid heating up
- Auto-dry function deactivates oven when the samples are dry, saving energy (optional sample temperature sensor is required to utilize this feature)
- Standard overtemperature alarm and an additional undertemperature alarm
- Door lock prevents disruption, tampering or accidental opening
- Door alarm notifies the operator when door is left open accidentally
- Socket for independent sample sensor (option): When connected, exact sample temperature is shown on display for additional peace of mind
- Sophisticated timer extends the automation options available to the user: turn on or off after a pre-set time, choose between a recurring weekly timer or run oven based on the 24 hour clock
- Highest level of temperature uniformity
- Exceptionally low energy consumption
- Adjustable fan speed for application related airflow
- Programmable controller for temperature ramps and dwells (store up to 10 programs with 10 discrete steps, features electronically controlled fan speed and damper position)
- Access port allows the introduction of sensors for independent data monitoring
- A simple calibration routine ensures temperature accuracy over time
- Boost function enables rapid heating up
- Auto-dry function deactivates oven when the samples are dry, saving energy (optional sample temperature sensor is required to utilize this feature)
- Standard overtemperature alarm and an additional undertemperature alarm
- Door lock prevents disruption, tampering or accidental opening
- Door alarm notifies the operator when door is left open accidentally
- Socket for independent sample sensor (option): When connected, exact sample temperature is shown on display for additional peace of mind
Properties
| Depth int.: | 564 mm |
|---|---|
| Ext. depth: | 738 mm |
| Ext. height: | 920 mm |
| Ext. width: | 640 mm |
| External dimensions (WxDxH): | 640 x 738 x 920 mm |
| Height int.: | 680 mm |
| IP code: | IP 20 |
| Int. width: | 438 mm |
| Internal dimensions (WxDxH): | 438 x 564 x 680 mm |
| Manufacturer Article Number: | 51028546 |
| Material interior: | Stainless steel 1.4301 |
| Max. no. of inserts: | 19 |
| Max. temperature: | 330 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +10 °C |
| Nominal capacity: | 168 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 3100 W |
| Temperature: | RT+10 ... 330 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,3 °C |
| Type: | OGH180-S SS |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 69 kg |
| With timer: | Yes |
