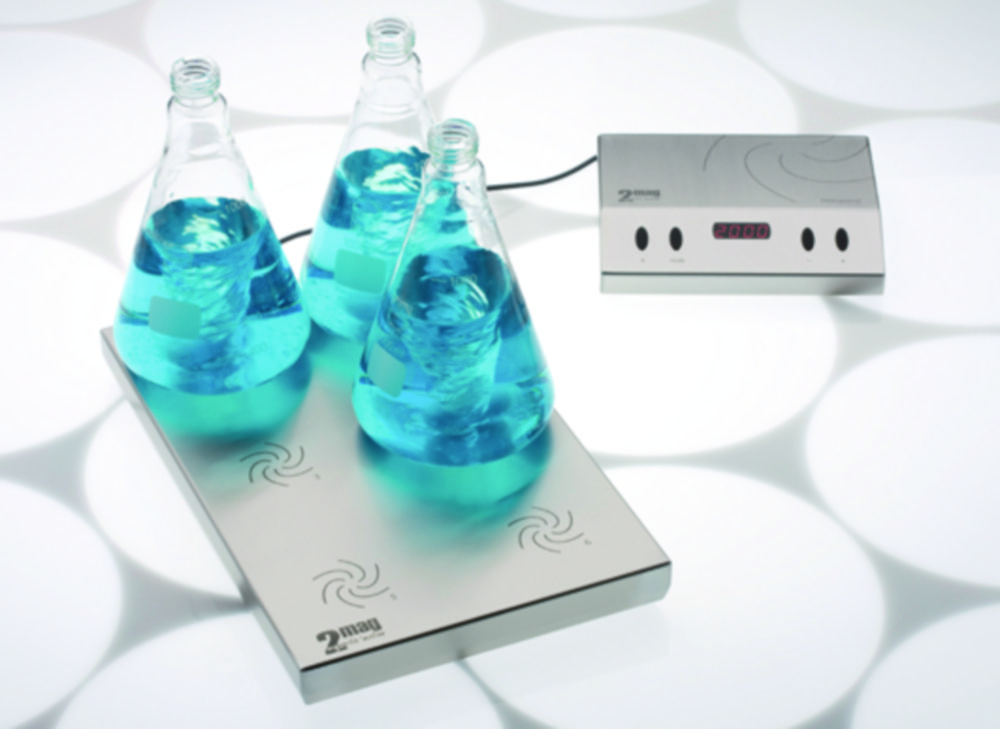

Multi-position stirring drive MIXdrive
2mag AG
Product number:
9645963
Manufacturer:
2mag AG
Packaging information:
Length:
628 mm
Width:
314 mm
Height:
110 mm
Weight:
8.8 kg
Description
Without heating. 100 % wear-free and maintenance-free stirring position with 2mag induction drive, waterproof and dustproof. Ideal for batch series stirring and for use in water baths. Choice of 6-place stirring position models which can stir up to 6 x 1 l erlenmeyer flasks, 15-place models for up to 15 x 250 ml beakers (high form) and 60-place models for small sample containers and using appropriate test tube stands, up to 60 test tubes or centrifuge tubes. 3 years warranty.
Please order control unit separately.
Please order control unit separately.
- Permissible ambient temperature in air and water from -10 to 50 °C
Properties
| Depth: | 375 mm |
|---|---|
| Dimensions (WxDxH): | 245 x 375 x 38 mm |
| Height: | 38 mm |
| IP code: | IP 68 |
| Manufacturer Article Number: | 40006 |
| Material housing: | Stainless steel |
| Max. voltage: | 48 V·DC |
| No. of stirring positions: | 6 |
| Package capacity: | 1 ml |
| Power supply: | 48 V·DC |
| Rated capacity: | 40 W |
| Stirring capacity per position: | 1000 ml |
| Stirring centre distances: | 130 mm |
| Type: | MIXdrive 6 |
| UNSPSC: | 41103806 |
| Warranty: | 3 years |
| Weight: | 8500 g |
| Width: | 245 mm |
| With timer: | No |
