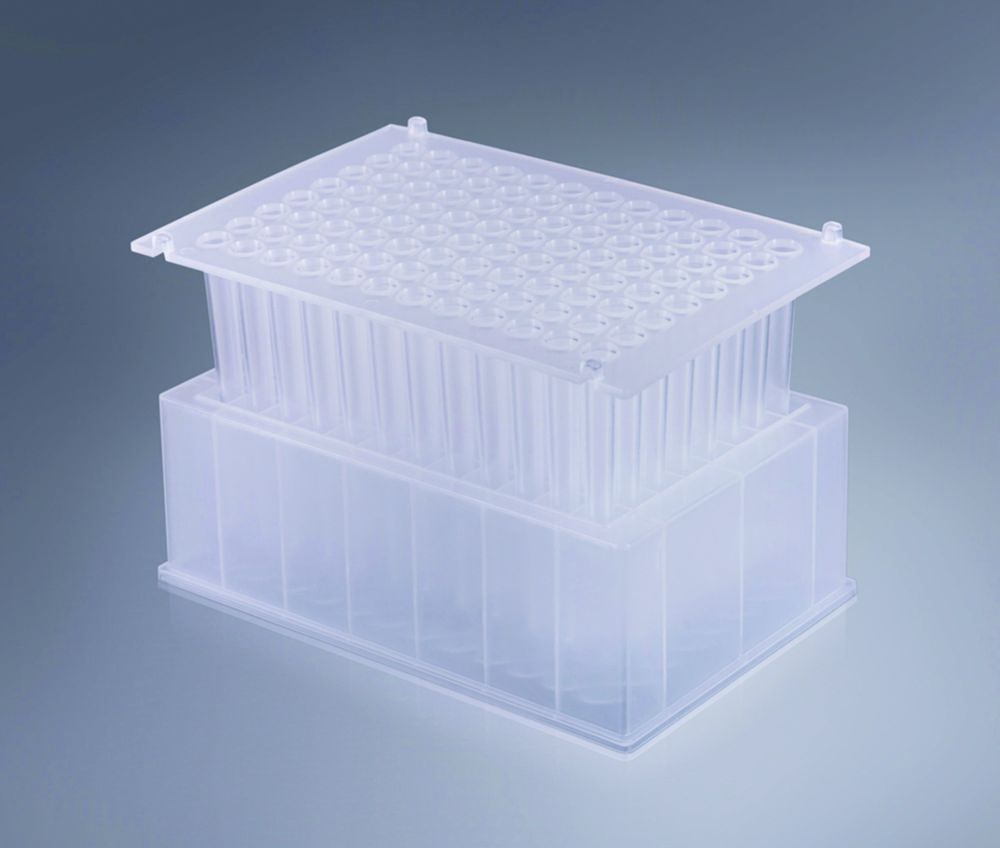

Micro plates Riplate® magnetic
Product number:
6315907
Manufacturer:
Ritter GmbH
Packaging information:
Weight:
0.2 kg
Description
Riplate® magnetic plates have been specially developed for the reproducible magnetic separation of DNA and proteins and can also be used for cleaning, mixing or centrifugation of samples as well as for the storage and preparation of substances.
For the filtration of proteins as well as for DNA extraction, an automated method called magnetic separation is commonly used. The technology is based on magnetic particles which allow the fast and efficient sample preparation with high throughput. The sustainability of these products as well as reliable analysis results are ensured by the production under cleanroom conditions (class 8). The plates are in line with the SBS standard (Society for Biomolecular Screening) and have been especially developed for the magnetic separation technology.
For the filtration of proteins as well as for DNA extraction, an automated method called magnetic separation is commonly used. The technology is based on magnetic particles which allow the fast and efficient sample preparation with high throughput. The sustainability of these products as well as reliable analysis results are ensured by the production under cleanroom conditions (class 8). The plates are in line with the SBS standard (Society for Biomolecular Screening) and have been especially developed for the magnetic separation technology.
- High resistance towards commonly used chemicals, solvents and alcohols
- High stability also during centrifugation
- Newly developed cylindrical wells enable a good bioturbation of samples
- Slightly raised rims reduce the risk of cross-contamination
- The alphanumeric code allows the registration and identification of individual samples even in confined spaces
| Specifications | |
| Total volume | |
| Riplate® 96 SRW magnetic 0,2 ml: | 0.2 ml/Well |
| Riplate® 96 SRW magnetic 2 ml: | 2 ml/Well |
| Working volume | |
| Riplate® 96 SRW magnetic 0,2 ml: | 0 to 100 µl |
| Riplate® 96 SRW magnetic 2 ml: | 20 to 1000 µl (with knobbed lid) |
Properties
| Manufacturer Article Number: | 43001-0504 |
|---|---|
| Type: | Riplate® 96 SRW magnetic 2 ml (for KingFisher™ 96 Flex and KingFisher™ Presto) |
