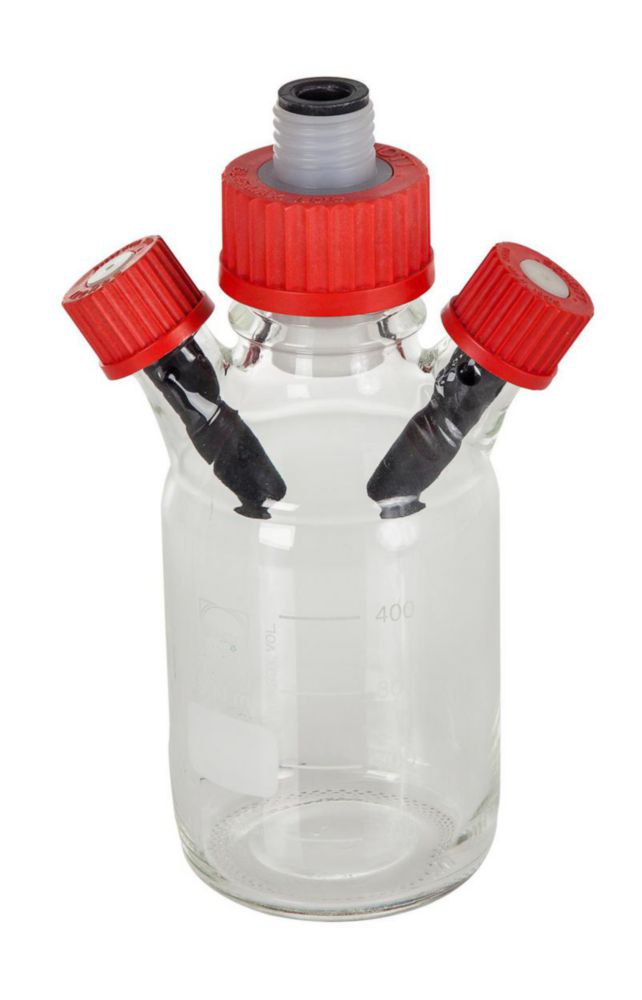

Measuring bottles for BOD measurement system OxiTop®
Product number:
7625888
Manufacturer:
Xylem Analytics Germany (WTW)
Packaging information:
Length:
288 mm
Width:
126 mm
Height:
225 mm
Weight:
0.645 kg
Description
Iincl. 2 x nozzles, 2 x VS25 screwing sets for nozzle, 1 x GK 600 rubber sleeve, 2 x SEP25 septum for nozzle, 2 x STH25 support for nozzle
Properties
| Manufacturer Article Number: | 209107 |
|---|---|
| Nominal capacity: | 500 ml |
| Type: | MF45/500 |
