Magnetic stirrers/hotplates, multi-position, RT 5/10/15
€3,037.34*
% €4,745.85* (36% saved)
Content:
1
Delivery according to order confirmation
Product number:
9720611
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description

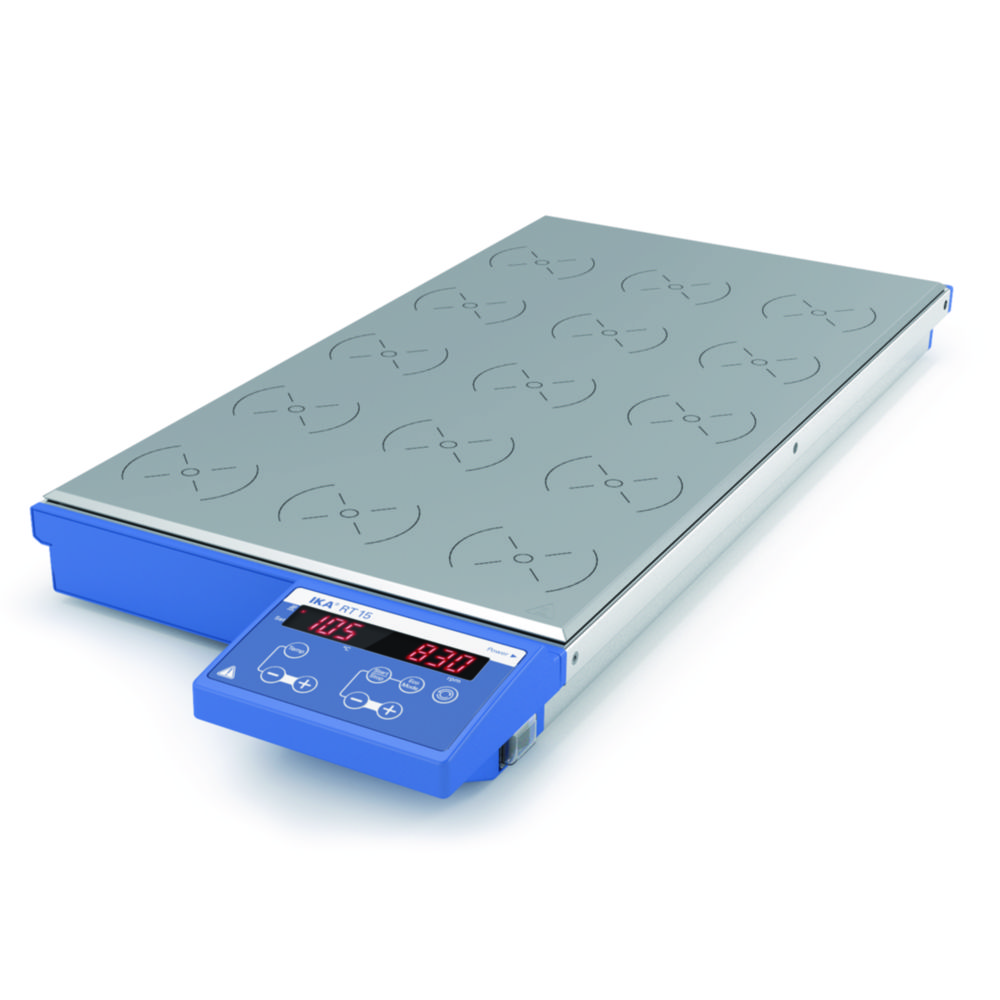

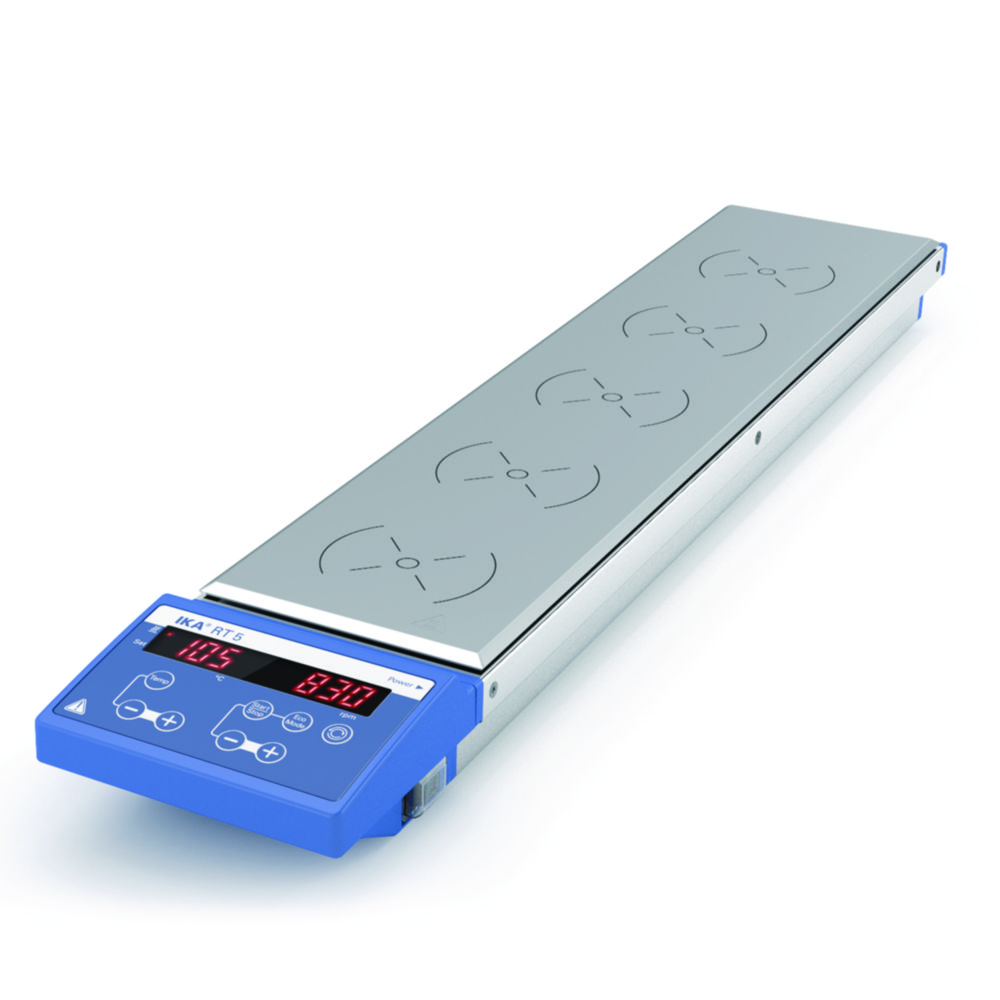

Digital magnetic hotplate stirrers with 5, 10 or 15 positions, designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120°C, producing a maximum medium temperature of 70°C (depending on type of vessel). Speed remains constant, even when load changes.
- Homogeneous temperature distribution across heating plate
- Adjustable reverse operation
- Eco-mode for a low self-warming of the surface
- Wear free magnetic coils
- Error code display
- Easy operation with touch keypad
- Suitable for continuous operation
- Adjustable speed in increments of 10rpm
Properties
| Colour housing: | Blue |
|---|---|
| Depth: | 610 mm |
| Depth working area: | 495 mm |
| Dimensions (WxDxH): | 280 x 610 x 60 mm |
| Display: | Digital |
| Heating capacity: | 580 W |
| Heating temperature: | RT ... 120 °C |
| Height: | 60 mm |
| IP code: | IP 40 |
| Manufacturer Article Number: | 0020005700 |
| Material stirring surface: | Aluminium alloy |
| Max. heating rate: | 3 °C/min |
| Max. heating temperature: | 120 °C |
| Max. permitted ambient temperature: | 40 °C |
| Max. relative humidity rate: | 80 % |
| Max. safety temperature: | 150 °C |
| Max. speed: | 1000 1/min |
| Max. voltage: | 230 V |
| Min. permitted ambient temperature: | 5 °C |
| Min. safety temperature: | 50 °C |
| Min. speed: | 0 1/min |
| No. of stirring positions: | 15 |
| Permitted ambient temperature: | 5 ... 40 °C |
| Plug type: | CH |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 620 W |
| Safety temperature: | 50 ... 150 °C |
| Speed: | 0 ... 1,000 1/min |
| Stirring capacity per position: | 400 ml |
| Stirring centre distances: | 90 mm |
| Type: | RT 15 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41103806 |
| Weight: | 10500 g |
| Width: | 280 mm |
| Width working area: | 270 mm |
| With connection ext. temperature sensor: | No |
| With timer: | No |
| Working area (WxD): | 270 x 495 mm |
