Light measuring instrument SP
Product number:
4691198
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Length:
201 mm
Width:
107 mm
Height:
55 mm
Weight:
0.215 kg
Description
For measuring illumination of office and production workstations.
Scope of supply:
Light measuring instrument, soft box with light protection, 9 V block
- Photo sensor: Silicon diode, filtered
- Cosine correction for angular incident light
- Data-hold function, to freeze the current measurement
- Rotating sensor unit (+ 90 and -180°) for optimum alignment to the light source
- TRACK function for continuous recording of variable environmental conditions
- Peak Hold Mode to capture peaks
- Selectable measuring units: fc (foot-candle), lx
- Battery operation
Scope of supply:
Light measuring instrument, soft box with light protection, 9 V block
Properties
| Battery/rechargeable battery: | 1 x 9 V |
|---|---|
| Depth: | 68 mm |
| Dimensions (WxDxH): | 185 x 68 x 38 mm |
| Height: | 38 mm |
| Manufacturer Article Number: | SP 200K |
| Material housing: | Plastic |
| Max. measured value: | 200000 lx |
| Max. voltage battery/rechargeable battery: | 9 V |
| Measured range: | 200 ... 200,000 lx |
| Min. measured value: | 200 lx |
| No. of batteries/rechargeable batteries: | 1 |
| Type of auxiliary energy: | Battery |
| Weight: | 150 g |
| Width: | 185 mm |
Skip product gallery
Room climate monitor RM 100
From
€121.80*
Climate measuring instruments testo 440
From
€348.00*
Sound level meter SU 130, class II
From
€120.00*
TC-Temperature probes for testo measuring instruments, TC plug type K
From
€52.00*
Light measuring instrument testo 540
From
€109.50*
Globe thermometer for testo measuring instruments
From
€822.40*
Pt100 Laboratory probes for testo measuring devices
From
€134.00*
Sound level meter class I and II
From
€1,110.00*
Probes for climate measuring instrument testo 440
From
€174.00*
Light measuring instrument SO
From
€84.00*
CO2 Meter Air Co2ntrol Life
From
€158.00*
Thermometer testo 440 Laboratory kit
From
€584.00*
Similar products
For reliable control and evaluation of indoor air quality. Simultaneous measurement and display of temperature, CO2 concentration and humidity. The CO2 concentration in the air is additionally indicated by three LEDs as good, medium or bad.Alarming when limit is exceededLarge, illuminated displayFactory calibration certificateScope of supply: Room climate monitor RM 100, external AC/DC adapter

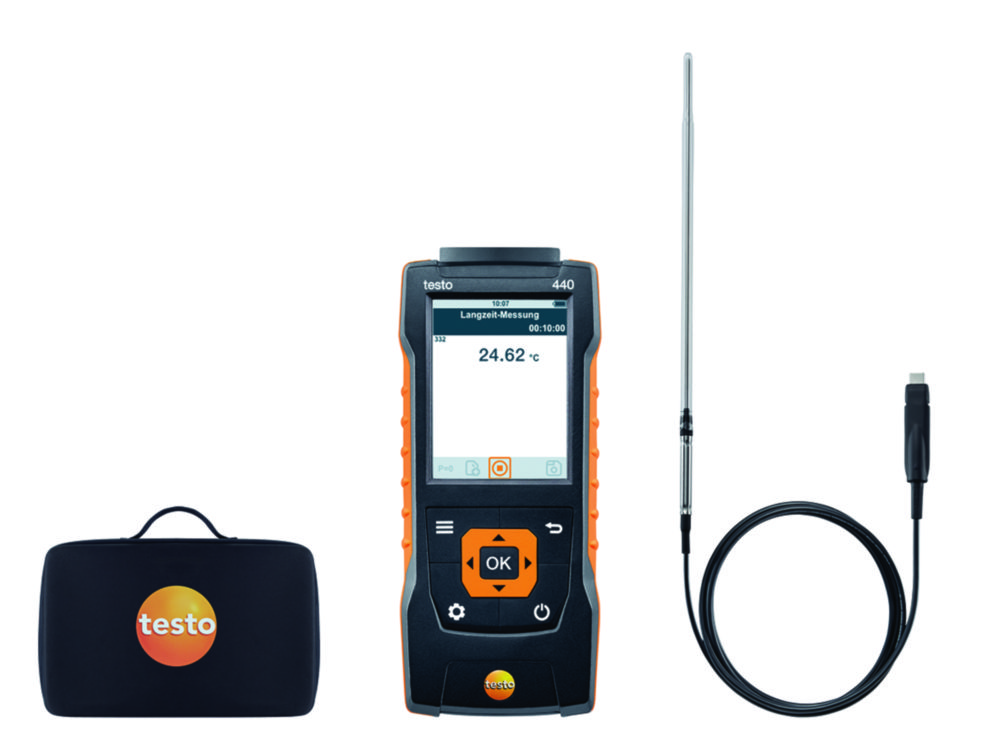

The climate measuring instruments testo 440 combine the benefits of a compact handheld device with intuitive measurement menus and a comprehensive selection of air velocity & IAQ probes. Both the digital Testo Smart Probes and numerous Testo temperature probes can be connected. Clearly structured menus for measuring volume flow in ducts/at outlets, degree of turbulence, cooling/heating load, mould indication and logging mode are stored on the instrument.The testo 440 dP also has an integrated differential pressure sensor. This makes measurements at filters as well as Pitot tube and K-factor measurements possible.USB interface for data export and optional printout of measuring valuesUp to 3 probes can be connectedParallel display of 3 measuring valuesBluetooth probes for measuring convenience and easy storage in the caseUniversal handle for all probesMeasurement of the following parameters are possible: °C, % r.h., CO, CO2, m/s, Lux, hPaPlease order probes separately.SpecificationsTemperature measuring range (NTC):-40 ... +150 °CAccuracy:±0.4 °C (-40 ... -25.1 °C)
±0.3 °C (-25 ... +74.9 °C)
±0.4 °C (+75 ... +99.9 °C)
±0.5 % of measured value (remaining range)Resolution:0.1 °CTemperature measuring range (TE Typ K):-200 ... +1370 °CAccuracy:±(0.3 °C + 0.3 % of measured value)Resolution:0.1 °CDifferential pressure measuring range testo 440 dP:-150 ... +1500 hPaAccuracy:±0.05 hPa (0 ... +1.00 hPa)
±0.2 hPa + 1.5 % of measured value (+1.01 ... +150 hPa)Resolution:0,01 hPaMemory:7500 measurement protocolsOperating / storage temperature:-20 ... +50 °CDimensions (W x D x H):65 x 32 x 154 mmWeight:250 gPower supply:3 x Mignon, Type AA
Sound level meter for noise measuring.Delivered in a hard carrying caseMulti measuring functions: Lp: Standard sound level measuring function, Leq: Energy equivalent sound level measuring mode (type A), Ln: Shows the deviation from a pre-defined limit in %Selectable methods of evaluation: A: As sensitive as the human ear, C: Sensitive for noisier environmental, conditions, where there are machines, plant, motors etc., F: For areas where sound intensity does not varyFunction to set limits: Programmable target value for go/no-go test valuesTrack function for continuous recording of variable environmental conditionsPeak Hold Mode to capture peaksInternal memory for measured values, for 30 measurements. Can be displayed on the PCData interface RS-232, included
Temperature probes with TC plug type K.
Quick and easy-to-use instrument for measuring lighting conditions in the workplace. The sensor is adapted to spectral sensitivity of the eye.Display illuminationHold-functionMax./min. valuesScope of supply: Meter incl. protection cap, batteries, calibration protocolSpecificationsMeasuring range:0 to 99999 lxResolution:1 lx (0 to 19999 lx)
10 lx (remaining range)Accuracy:±3 lx or ±3 %Measuring frequency:0.5 sDimensions (W x D x H):133 x 46 x 25 mmWeight:95 gIP code:IP 40Power supply:2 Micro cells AAA

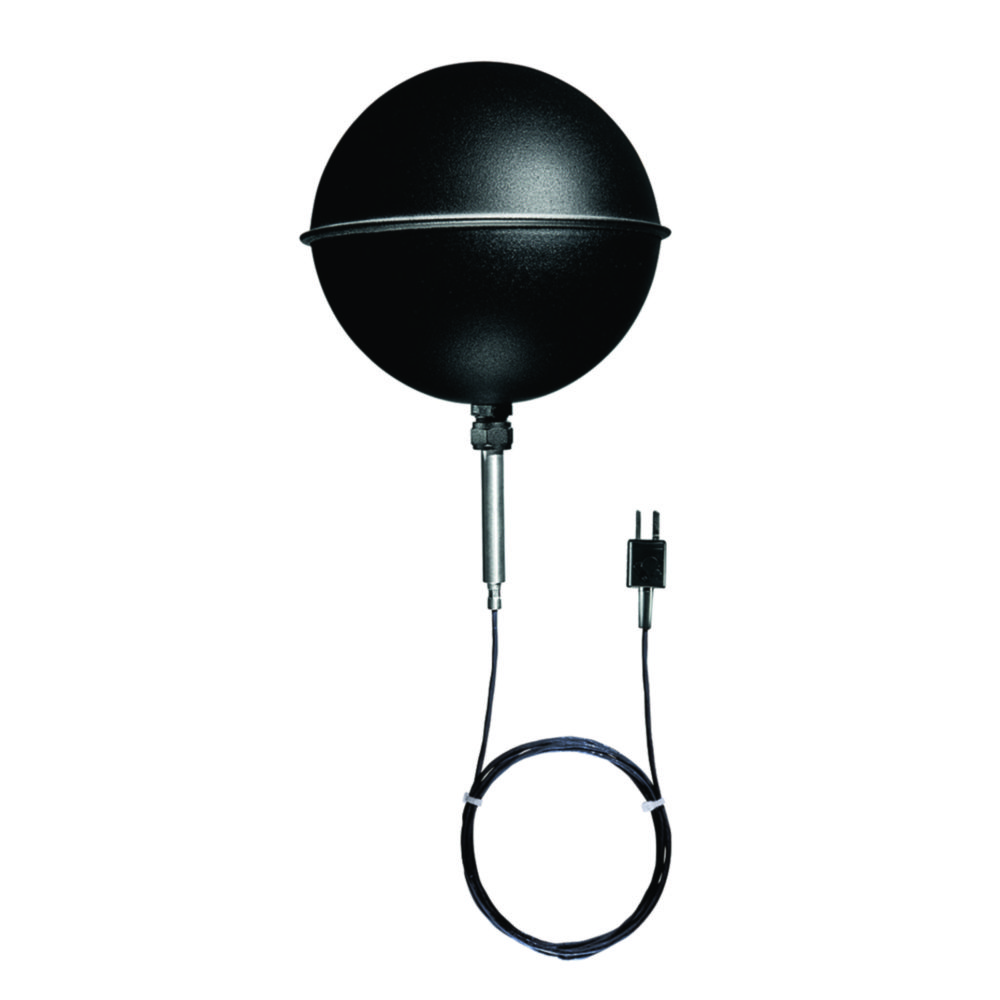

Globe thermometer for measuring radiant heat acc. to ISO 7243, ISO 7726, DIN EN 27726, and DIN 33403.
Suitable for measurements in corrosive media. Ideal for use in laboratory and industry. Precise Pt100 sensor with replaceable glass coating and fixed cable.

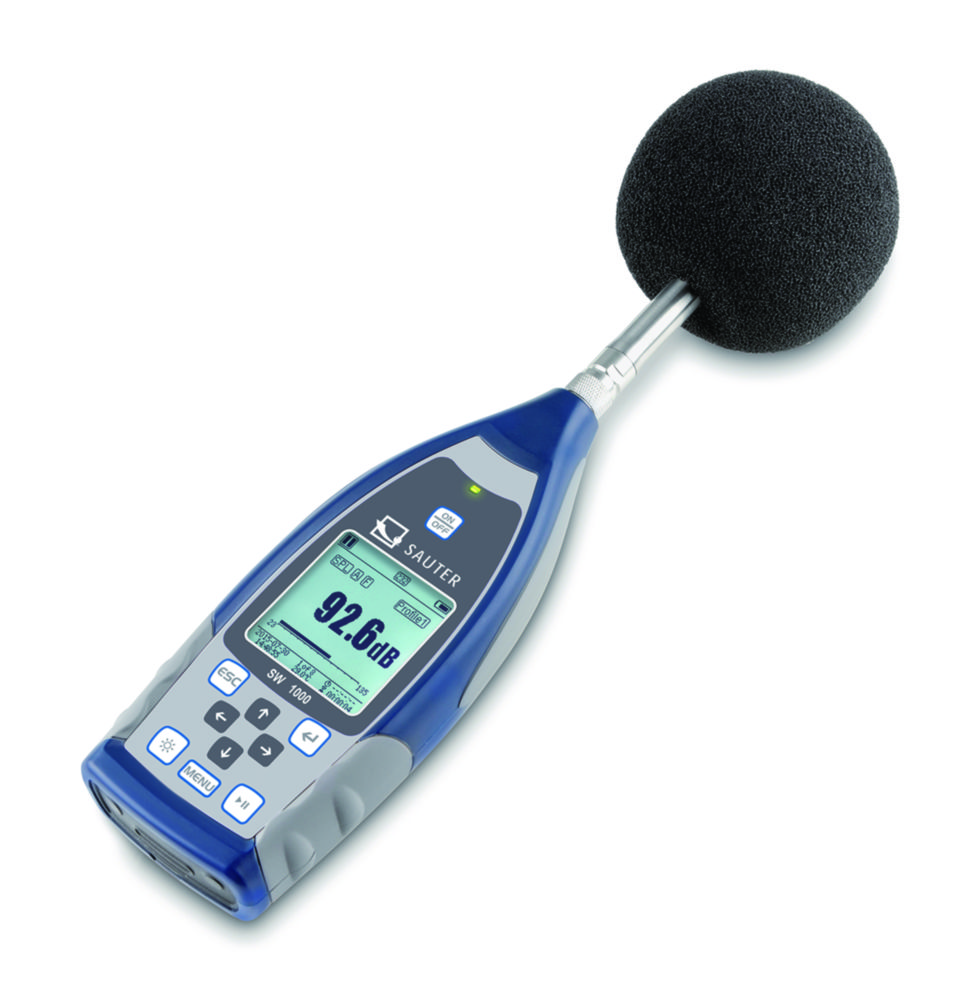

For measurements for workplaces which are outdoors, e.g. at airports, on building sites, in road construction etc. with broad access to spectrum thanks to the highly-accurate 24-Bit A/D converter.Different sound pressure levels can be selected, such as, for example, Laeq, LcPeak, LaF, LaFMax, LaFMin, SD, SEL, EThe optimised analogue frontend switch reduces the ambient noise and increases the linear measuring rangeThree profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weightingLN statistics and display of the graph showing the progression of timeUser-defined integral interval measurement up to a maximum of 24 hours is possibleFrequency weighting (filter) A, B, C, ZTime interval during measurement: F (fast), S (slow), I (pulse)Freely-definable limits for the output of an optical alarm signalPeak Hold Mode to capture peaksOctavo function for targeted sound analysisTrack function with graphic display of a measurementCalibration mode (with optional calibrator)Trigger mode: Analogue signal to switch the device on or off with 3.5 mm plugAutomatic measurement for timer function is possibleMeasured value recording frequency selectable: 10, 5, 2 HzData transfer using MicroSD (4 GB), RS-232 or USBOption of fitting a column on the rear of the housing, ¼ threadScope of supply: Sound level meter, memory card, hard carrying case

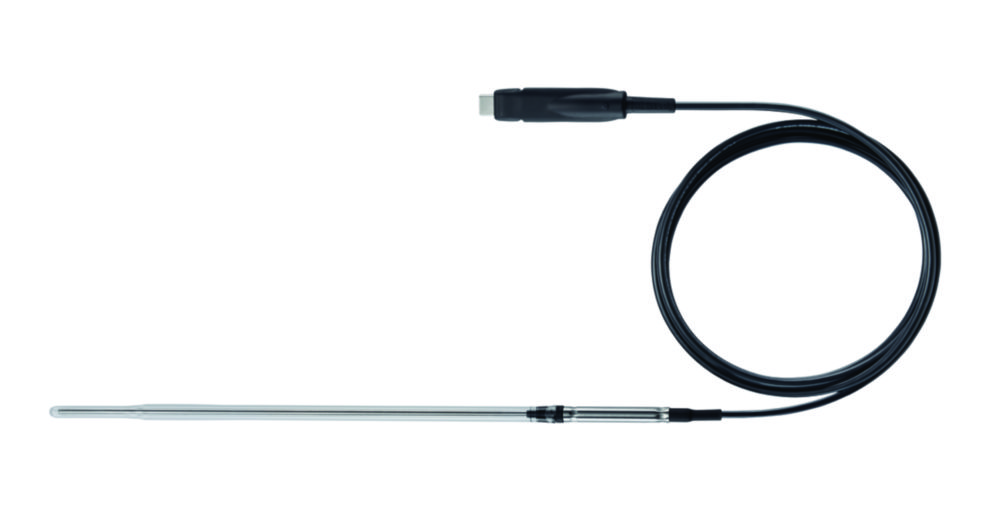

Digital probes with intelligent calibration concept. All probe heads can be easily attached to the universal handle.

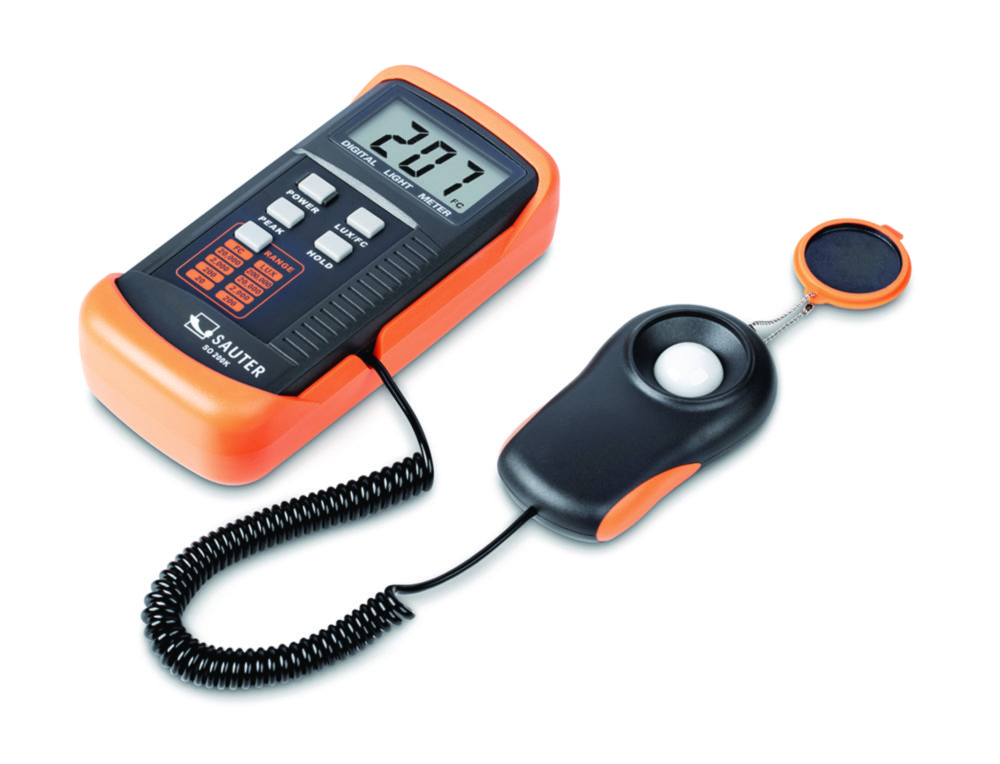

Light measuring instrument for precise light measurement up to 200,000 LuxMeasures illumination in the workplaceHelps to determine whether a workstation has insufficient light or whether there is too much lightPhoto sensor: silicon diodeCosine correction for angular incident lightSturdy protective cover for the photo sensorIncreased service life: Impact protection through a protective casingTrack function for continuous recording of variable environmental conditionsPeak Hold Mode to capture peaksSelectable measuring units: fc (foot-candle), lxAUTO-OFF functionDelivery in a robust box
