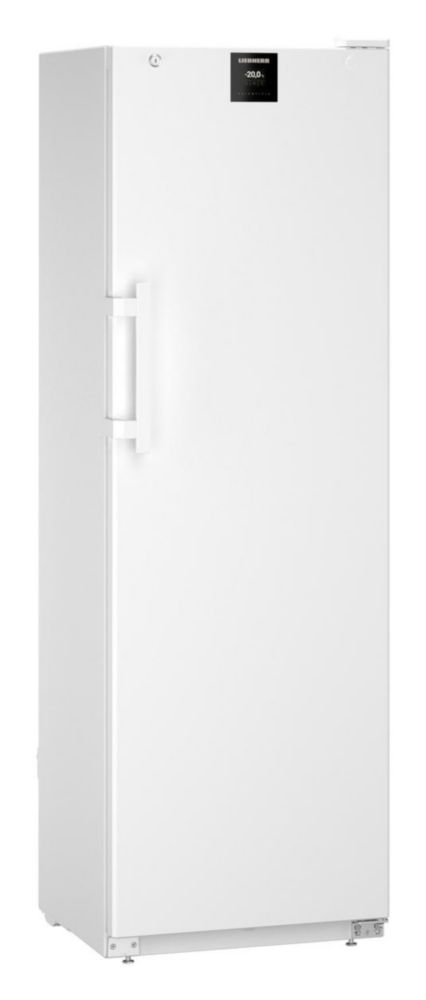

Laboratory freezer SFFvh Perfection
Product number:
6521135
Manufacturer:
Liebherr-Hausgeräte
Packaging information:
Description
Freezers with dynamic cooling system and auto defrost for stable long-term storage of sensitive samples and substances. The integrated data logger records temperature profile, alarm history, and service information and can be read out via the USB interface.
- 2.4" colour display with touch & swipe operation
- Power failure alarm: integrated battery takes over the power supply and triggers an acoustic and visual alarm
- WiFi/LAN interface for networking with SmartMonitoring
- Integrated SmartModule (removable)
- Min./max. temperature recording
- Potential-free alarm contact
- Calibration function
- LED front lighting
- Feed-through for external sensors (Ø 10 mm)
- Environmentally friendly, natural refrigerant
- Maintenance timer individually adjustable
- Antimicrobial handle with opening mechanism
- Automatic door closing at an opening angle of less than 90°
- Door with mechanical lock
- Door hinge right, exchangeable
- DIN 13277 compliant
Properties
| Colour: | White |
|---|---|
| Depth int.: | 400 mm |
| Door hinge: | Changeable |
| Energy consumption (24h): | 0.800 kWh |
| Ext. depth: | 654 mm |
| Ext. height: | 1884 mm |
| Ext. width: | 597 mm |
| External dimensions (WxDxH): | 597 x 654 x 1,884 mm |
| Height int.: | 1400 mm |
| Int. width: | 420 mm |
| Internal dimensions (WxDxH): | 420 x 400 x 1,400 mm |
| Manufacturer Article Number: | SFFVH 4001-20 |
| Max. temperature: | -9 °C |
| Max. voltage: | 240 V |
| Min. temperature: | -35 °C |
| Min. voltage: | 220 V |
| No. of baskets: | 0 |
| No. of chambers: | 1 |
| No. of doors: | 1 |
| No. of drawers: | 6 |
| No. of shelves: | 6 |
| Nominal capacity: | 174 l |
| Power supply: | 220 ... 240 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Temperature: | -35 ... -9 °C |
| Type: | SFFvh 4001 Perfection |
| Type of auxiliary energy: | Mains connection |
| Weight: | 81 kg |
